PFA Conductive C403
Conductive & Anti-Static PFA Fluoropolymer
Everflon+™ PFA C403.
Static Dissipation. Absolute Purity.
High-performance perfluoroalkoxy fluoropolymer engineered for anti-static CPI linings, chemical fluidics, and critical semiconductor environments.
250°C (482°F)
Service Temp
<10 Ω·m
Volume Resistivity
3.0 g/10min
MFR @ 372°C
80,000+
MIT Flex Life
Engineering Highlights
Engineered for Hazardous & High-Purity Applications.
Static Dissipation
Electrostatic Safety
Everflon+™ PFA C403 provides anti-static electrical conductivity, preventing dangerous static build-up and spark ignition when handling non-polar fluids, powders, and aggressive flammable media.
Chemical Resistance
Universal Inertness
Fully resistant to attack by virtually all industrial chemicals, concentrated acids, and aggressive solvents across temperatures from -196°C to 250°C (-321°F to 482°F).
Thermal Stability
High Melt Strength
Features thermal stability during processing, a melting point of 284°C (543°F), and outstanding creep resistance at elevated service temperatures.
Flex Endurance
Exceptional Toughness & Flex Life
Combines moderate stiffness with an MIT Folding Endurance of 80,000 cycles, ensuring extended fatigue life for dynamic bellows, lined valves, and flexible fluid tubing.
Product Specifications
Typical Property Data
Standard ASTM / ISO laboratory test values for Everflon+™ PFA C403.
Fabrication & Technology
Melt Processing & Application Engineering
01. Melt Extrusion
Extruder L/D Parameters
Processed by conventional thermoplastic melt extrusion. A long extruder barrel with an L/D ratio of 20:1 to 25:1 is recommended to provide sufficient residence time for heating the resin up to approximately 390°C (734°F).
02. Molding Operations
Compression, Transfer & Blow
High melt strength allows molding of complex components, lining forms, and valve sheets without pinholes or internal voids.
03. Tooling Metallurgy
Corrosion-Resistant Alloys
High-nickel corrosion-resistant metals (Hastelloy® / Inconel®) must be used for all tooling, screws, and barrels in direct contact with molten fluoropolymer resin.
Typical Industrial Applications
Chemical Processing Industries (CPI) Anti-static linings of components, column vessels, pipes, pumps, and fluid handling assemblies.
Industrial Film & Sheet Extrusion Static-dissipative release films, high-temperature barrier membranes, and conductive sheeting.
Semiconductor & Energy Semiconductor solvent lines, wafer handling fixtures, and downhole electrical assemblies.
Handling & Logistics
Packaging, Storage & Safety Precautions
Packaging

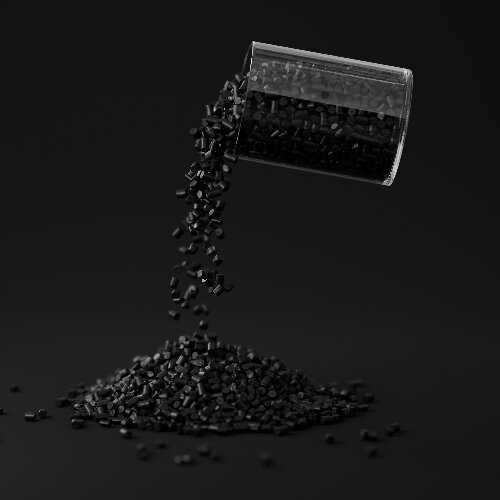

Supplied as black pellets.
45.4-kg (100-lb) Drums
Packaged with a polyethylene inner lining.
Storage & Handling
Properties are not affected by storage time. Avoid airborne contamination and moisture condensation.
Drying: 100°C (212°F) for 4 Hours
Suggested to remove absorbed moisture prior to processing.
Safety Precautions
Open and use containers only in well-ventilated areas with local exhaust ventilation (LEV).
Avoid Tobacco Contamination
Exhaust hot processing fumes completely to prevent flu-like symptoms.
Resistance. Reimagined.
Built to resist the extreme. Engineered to conduct.
Unlock the world of PFA.
Significant Others
Everflon™+ PFA Color Concentrate
Everflon™+ PFA Compound

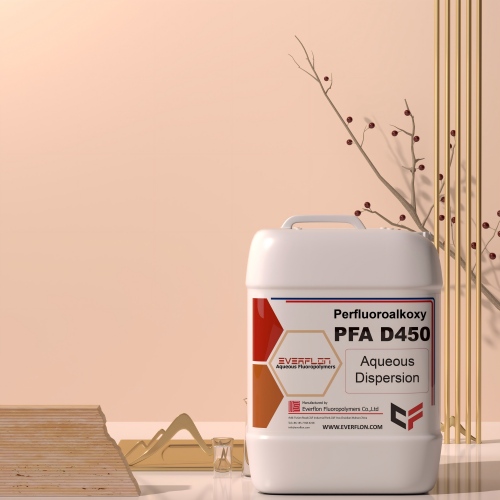

Everflon™ PFA Aqueous Dispersion

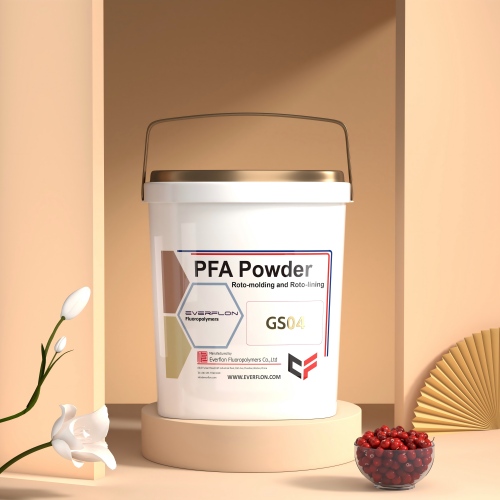

Everflon™ PFA Roto Molding Powder
