PFA Conductive C410
High-Flow Conductive & Anti-Static PFA
Everflon+™ PFA C410.
High Melt Flow. Anti-Static Control.
Engineered for faster injection molding cycles, extruded profiles, and semi-conductive heating cable layers requiring superior corona effect suppression and universal chemical inertness.
8.0 g/10min
High MFR (372°C)
0.11 Ω·m
Volume Resistivity
250°C (482°F)
Service Temp
30 1/s
Critical Shear Rate
High-Flow Polymer Engineering
Faster Processing & Corona Effect Suppression
Low Melt Viscosity
Accelerated Cycle Times & Thin-Wall Molding
With a Melt Flow Rate of 8.0 g/10 min, Everflon+™ PFA C410 processes significantly faster than standard PFA grades, enabling precision injection molding of intricate valve components, thin-wall chemical linings, and high-speed profile extrusion.
Cable Insulation
Corona Discharge Mitigation
Engineered for semi-conductive insulation layers in heating cables and higher voltage wiring where electrical stress grading and corona effects must be eliminated.
Chemical Purity
Cryogenic to 250°C Resistance
Maintains universal chemical inertness to industrial acids, bases, and aggressive organic solvents, retaining useful physical properties from -196°C to 250°C (-321°F to 482°F).
Thermal & Wear Resistance
Low Friction & High-Temperature Creep Resistance
Features low coefficient of friction, non-stick surface release, and high resistance to creep at elevated service temperatures, ensuring long-term sealing and dimensional stability in harsh fluidics.
Technical Specifications
Typical Property Data
Standard ASTM / ISO laboratory test values for Everflon+™ PFA C410.
Fabrication & Process Parameters
Melt Processing Guidelines & Key Applications
01. High-Speed Melt Extrusion
Extruder L/D & Temperature
Due to its lower viscosity, PFA C410 can be processed faster than lower-MFR PFA grades. Recommended barrel length-to-diameter (L/D) ratio is 20:1 to 25:1 to heat the resin to approximately 400 °C (752 °F).
02. Injection & Blow Molding
Complex Shapes & Linings
Readily processed by traditional injection molding, compression, transfer, and blow molding techniques. Excellent melt flow enables void-free filling of intricate molds and thin profiles.
03. Tooling Metallurgy
Corrosion-Resistant Alloys
Corrosion-resistant high-nickel alloys (such as Hastelloy® or Inconel®) must be used for all barrels, screws, and tooling contacting molten resin at elevated temperatures.
Target Applications & Industry Solutions
Semi-Conductive Heating Cables & High Voltage Heating cables based on semi-conductive insulation layers and higher voltage wiring where corona effects need to be addressed.
Chemical Processing Industry (CPI) Injection or compression molded articles and linings of components requiring anti-static properties.
Extruded Tubing, Profiles & Films Extruded tubing, industrial film, and conductive profiles demanding superior thermal, chemical, and electrical properties.
Logistics & Safety Protocols
Packaging, Storage & Safety Handling
Packaging Standards

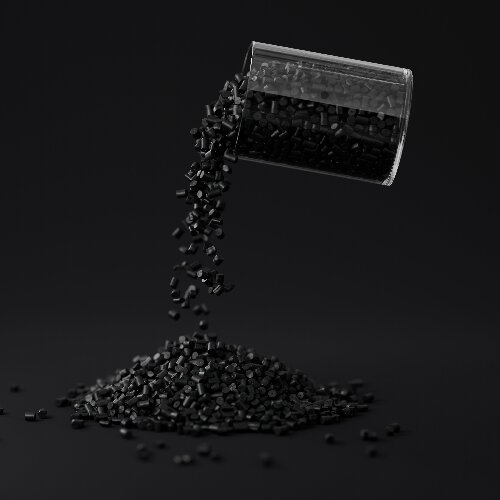

Supplied as uniform, dust-free black pellets.
45.4-kg (100-lb) Heavy-Duty Drums
Packaged with a polyethylene inner lining.
Storage & Pre-Drying
Resin properties are not affected by storage time under dry conditions. Avoid airborne contamination and moisture condensation.
Drying: 100 °C (212 °F) for 4 Hours
Recommended before processing to remove absorbed moisture.
Safety Precautions & Exhaust
Open and use containers only in well-ventilated areas with Local Exhaust Ventilation (LEV).
Avoid Tobacco Contamination
Exhaust fumes liberated during hot processing completely from the work area.
Built to Resist. Made to Conduct.
Two forces. One material.
Unlock the world of PFA.
Significant Others

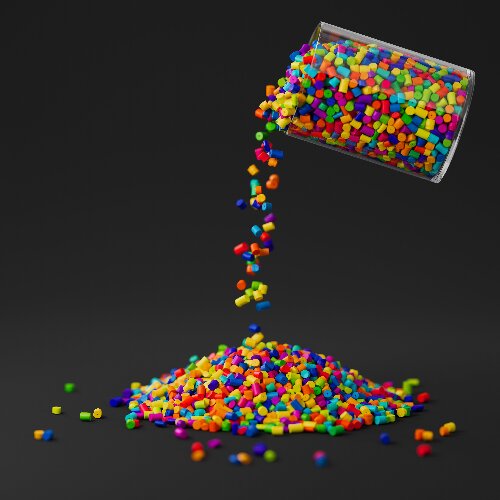

Everflon™+ PFA Color Concentrate
Everflon™+ PFA Compound

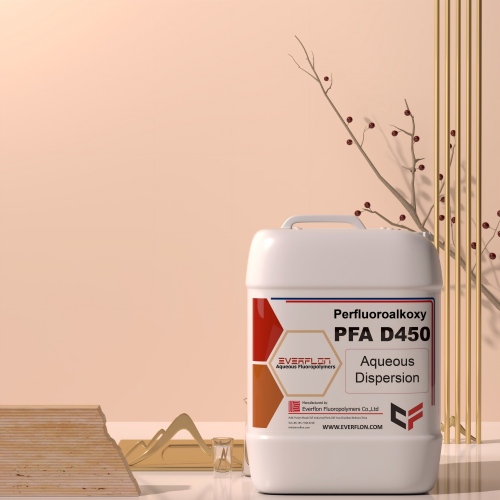

Everflon™ PFA Aqueous Dispersion

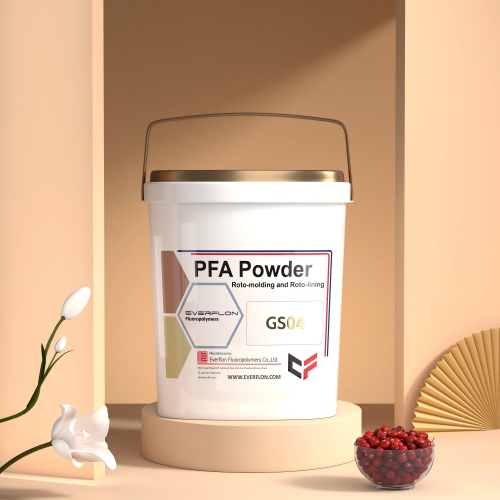

Everflon™ PFA Roto Molding Powder
