FEP 4603
Everflon™ Ultra-High Molecular Weight Fluoropolymers
FEP 4603
The golden rheology curve for peak fatigue endurance and crack immunity.
Engineered for high-purity semiconductor tubing, chemical pump bellows, heavy linings, and mission-critical wire jackets.
3.0 g/10 min
Golden Melt Flow Index (ASTM D2116)
> 100 kV/mm
Dielectric Strength (0.25 mm)
2.03
Relative Permittivity @ 1 GHz
205°C / 400°F
Continuous Service Temp.
Peak Toughness & Rheological Precision
Unrivaled flex-life combined with flawless extrusion stability.
Golden 3.0 MFI Balance
Optimal Throughput & Melt Viscosity
Bridging High Output and Crack Resistance: Positioned at the 3.0 g/10min golden rheology curve, FEP 4603 achieves higher extrusion line speeds than ultra-low MFI grades while preserving the massive molecular weight needed for complete resistance to stress cracking.
Extreme Dynamic Fatigue
Benchmark MIT Flex Life & Dynamic Bellows Durability
Sub-Zero Impact & Fatigue Life: Engineered for continuous high-frequency dynamic flexing and severe thermal cycling (-196°C to +205°C). Prevents pinholing and structural breakdown in chemical metering bellows, expansion joints, and dynamic flexible conduits.
Signal & Voltage Armor
Lossless High-Frequency & High-Voltage Barrier
Pure Dielectric Constant (2.03 @ 1 GHz): Minimal dissipation factor (tan δ < 0.0003) for zero-loss RF propagation in aerospace telemetry and high-voltage transmission leads, reinforced by a dielectric breakdown strength exceeding >100 kV/mm.
Total Chemical Immunity
UL 94 V-0 Flammability & Zero Ionic Leaching
Ultra-Pure Polymer Matrix: Water absorption < 0.01% with zero extractable ionic contaminants. Defies aggressive boiling acids, fuming nitric acid, strong alkalis, and ozone up to 205 °C (400 °F) with top-tier UL 94 V-0 flame rating (LOI > 95%).
Mission-Critical Industries
Built for semiconductor wet benches, dynamic bellows, and extreme cabling.
APPLICATION 01
Semiconductor Ultra-Pure Tubing & Valve Linings
Premium resin for ultra-pure chemical distribution loops, high-purity wet bench manifolds, diaphragm valves, and acid/solvent transfer conduits demanding near-zero trace metal elution.
APPLICATION 02
Dynamic Chemical Bellows & Heavy Expansion Joints
Extrusion and compression molding of high-cycle flexible bellows, metering pump diaphragms, expansion compensators, and thick-wall corrosion linings enduring cyclic thermal shock.
APPLICATION 03
Severe-Duty Control Cables & High-Flex Harnesses
Rugged outer jacketing and primary insulation for robotic drag-chain cables, downhole oil exploration harnesses, nuclear instrumentation lines, and military vehicle control wiring.
Datasheet & Material Properties
Technical Specifications at a Glance
| Property | Test Method | Typical Value | Engineering Assessment & Notes |
|---|---|---|---|
| Melt Flow Index (MFI) | ASTM D2116 | 3.0 g/10 min | Optimal high molecular weight for maximum fatigue & flex life |
| Specific Gravity | ASTM D792 | 2.15 | Dense, ultra-high purity fluoropolymer matrix |
| Tensile Strength | ASTM D638 | 26 MPa | Peak tensile endurance & heavy mechanical pull strength |
| Elongation at Break | ASTM D638 | 350 % | Highest flexural ductility and extreme elongation retention |
| Izod Impact Strength (23 °C) | ASTM D256 | No Break | Uncompromised toughness from cryogenic (-196°C) to 205°C |
| Dielectric Strength (0.25 mm) | IEC 243 / ASTM D149 | > 100 kV/mm | High-voltage insulation armor and electrical surge protection |
| Relative Permittivity (1 GHz) | IEC 250 / ASTM D150 | 2.03 | Low dielectric constant & lossless high-frequency signal propagation |
| Limiting Oxygen Index (LOI) | ISO 4589 / ASTM D2863 | > 95 % | UL 94 V-0 top-tier fire safety rating |
| Continuous Service Temp. | --- | 205 °C / 400 °F | Engineered for continuous thermal and environmental extremes |

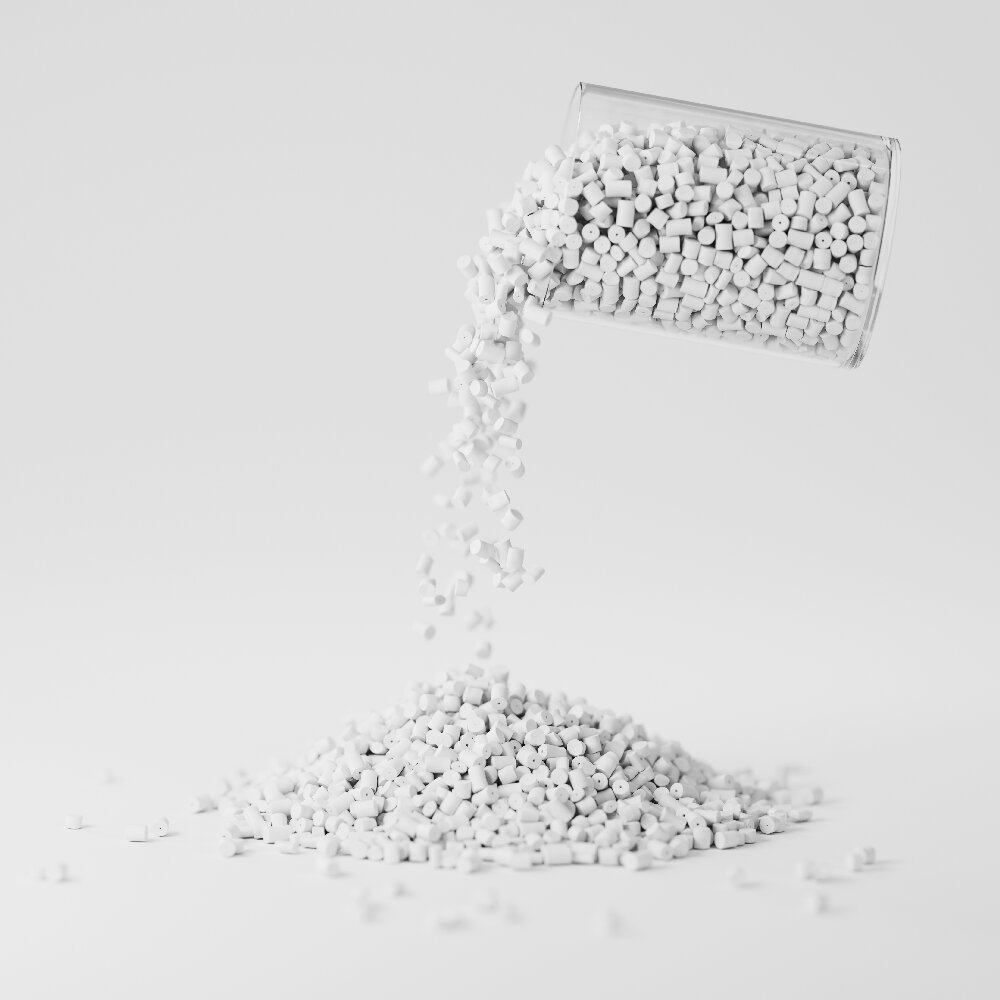

Pellet Purity & Quality

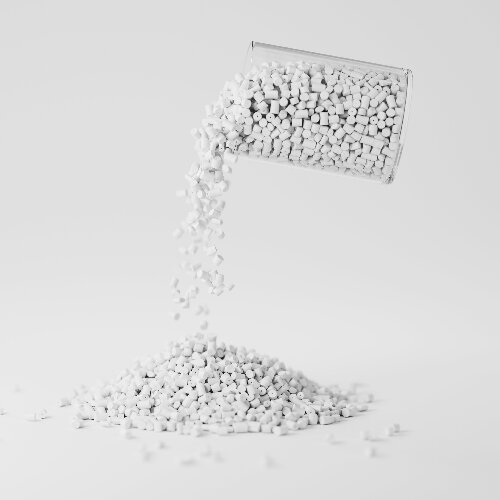

Supplied in consistent 3 mm (0.12 in) dust-free translucent pellets ensuring uniform extruder feed rate and stable melt barrel pressure.
Processing Equipment
Compatible with standard melt extrusion, tubing extrusion, compression, and transfer molding. Corrosion-resistant nickel alloys (Hastelloy, Inconel) recommended (350°C–390°C).

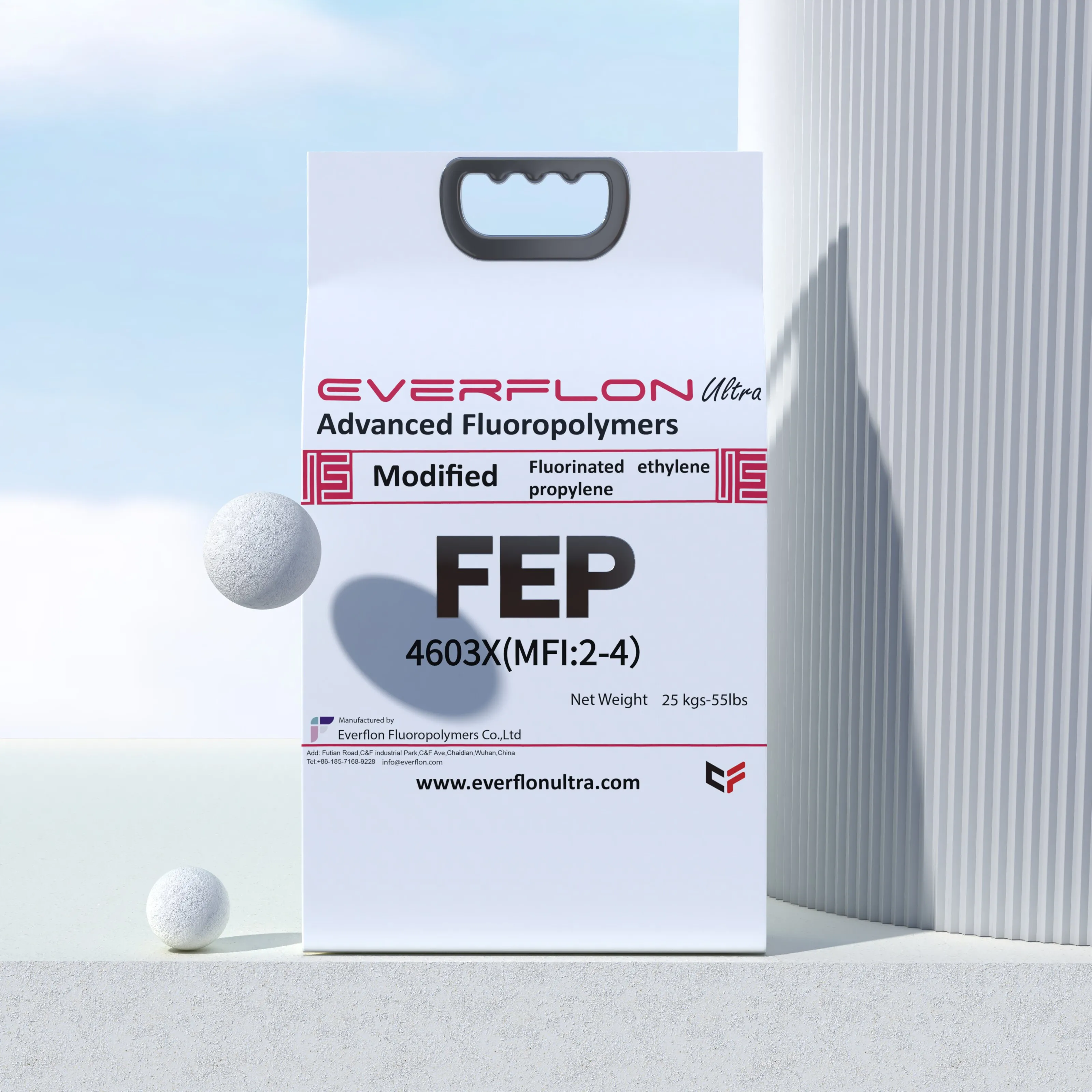

Packaging Standards

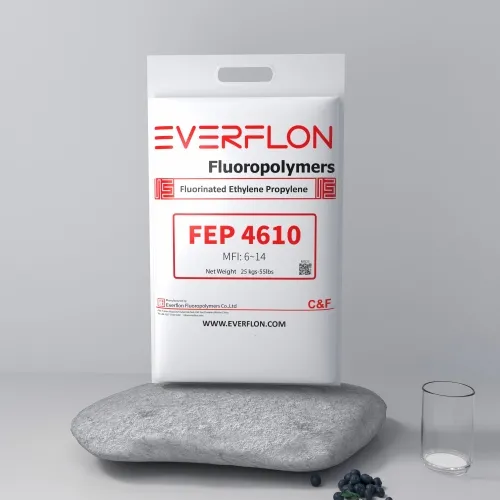

Delivered in heavy-duty 25-kg (55.1-lb) drums sealed with double-layer moisture-proof polyethylene liners to safeguard cleanroom purity.
Quality Standards & Environmental Stewardship
Certified Quality. Uncompromising Environmental Standards.
✓ Flame & Fire Safety
UL 94 V-0 Certified
Everflon™ FEP 4603 achieves the highest UL 94 V-0 flammability classification with an LOI over 95%. It fully complies with strict U.S. National Electrical Code (NEC) plenum fire standards and aerospace flame propagation requirements.
✓ Global Chemical Compliance
RoHS 3 & REACH SVHC
Manufactured without restricted hazardous chemicals. Fully compliant with EU RoHS Directive 2011/65/EU (and 2015/863) and certified free of REACH Substances of Very High Concern (SVHC) for seamless international export.
✓ High Purity & PFOA Free
FDA 21 CFR & Zero-PFOS/PFOA
Synthesized via clean polymer technology containing zero non-compliant PFOA/PFOS surfactants. Meets FDA 21 CFR 177.1550 criteria for chemical tubing, food processing, and semiconductor fluid handling systems.
Everything you need. Atom by atom.
Complete catalog and specs. Download now.
Meet the Everflon™ FEP all-stars.
Even better together.

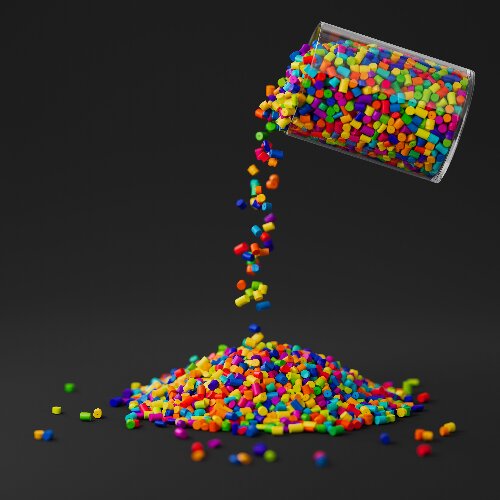

Everflon™+ FEP Color Concentrate
Everflon™+ FEP Foam Resin

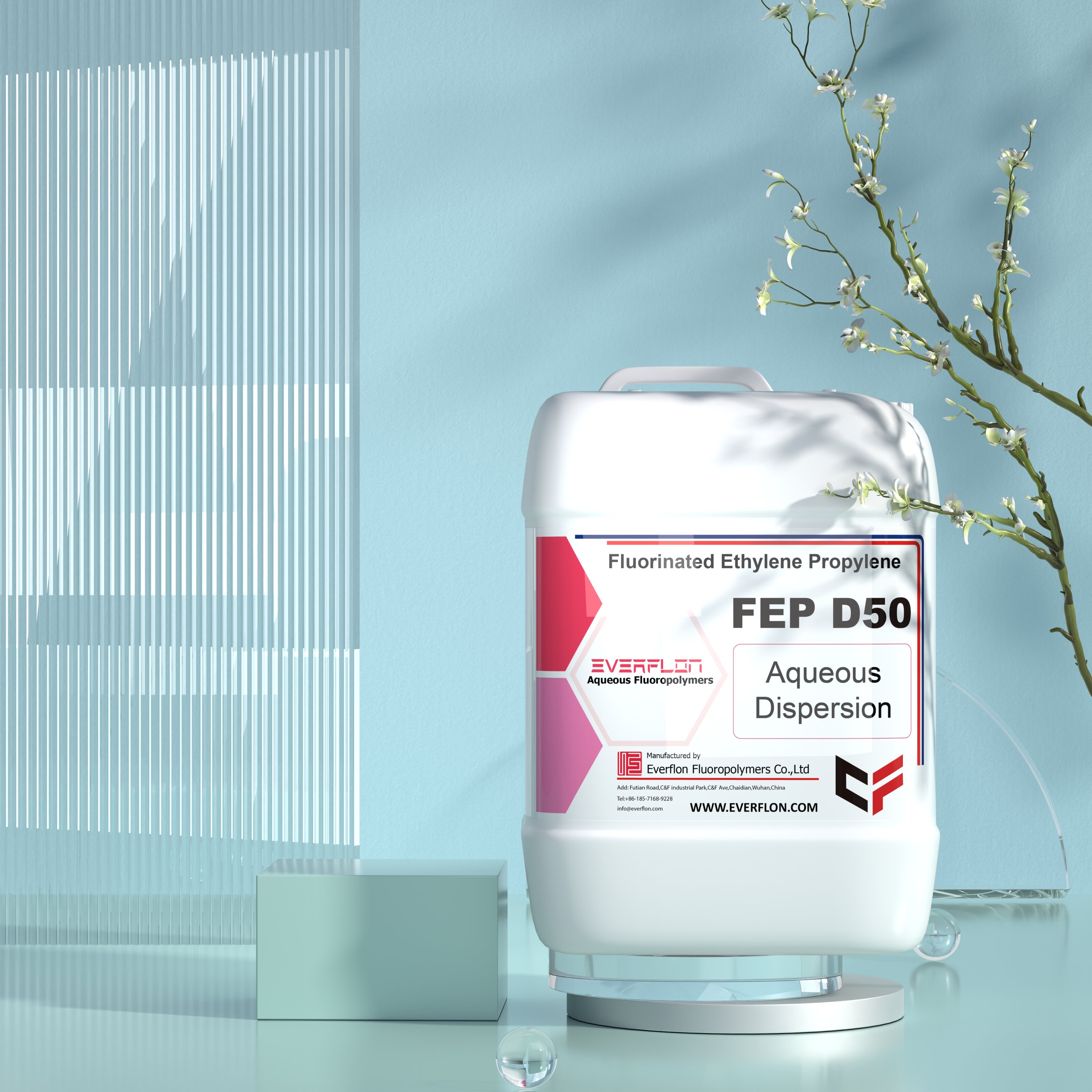

Everflon™ FEP Dispersion
