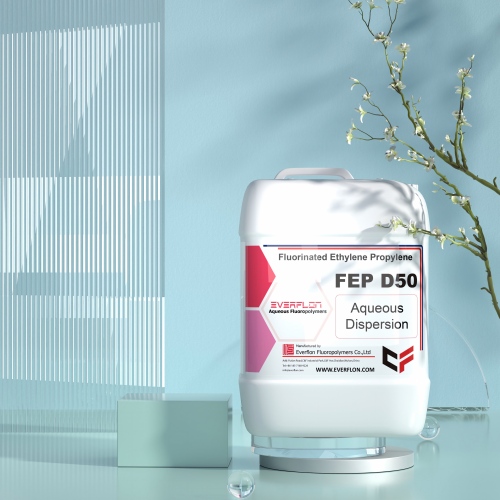

Everflon™ FEP D50.
Seamless protection, melted into precision.

Off-white aqueous FEP dispersion engineered for heat-sealable top-coats and chemical barrier coatings from -400°F to 400°F.

Flowable performance. Absolute barrier.

Designed to solve complex thermal bonding and anti-corrosion challenges.

Heat-Sealable
Lower Melting Point

Fuses at lower temperatures than PTFE, making it the premier choice for heat-sealable top-coats on PTFE glass fabrics.

Hot Melt Adhesive
Liquid Bonding Power

Acts as an effective liquid hot melt adhesive to bond PTFE, PFA, and FEP molded parts or film structures together.

Pinhole-Free Film
Superior Barrier Protection

Forms smooth, transparent, non-porous films that offer high chemical impermeability and non-wetting electrical isolation.

Non-Ionic Stability
Crack-Free Multi-Layering

Stabilized formulation allows precise thin-layer deposition (< 5 μm) avoiding mud-cracking during drying cycles.

Versatility crafted for high-stakes industries.

Empowering high-performance manufacturing across North America.

Heat-Sealable Top Coatings

Serves as a heat-sealable top coat over PTFE-coated glass fabrics for industrial conveyer belting, flexible expansion joints, circuit boards, and architectural membranes.

Chemical Barrier Cast Films

Casts ultra-thin, pinhole-free films that provide chemical impermeability for capacitor dielectrics, valve diaphragms, and ultra-pure chemical barrier linings.

Fluoropolymer Liquid Hot Melt

Functions as a reliable liquid hot melt adhesive layer to fuse PTFE, PFA, and FEP parts together during thermal consolidation processing.

Anti-Corrosion Metal Coating

Imparts anti-corrosion, chemical isolation, and release properties to metal substrates subjected to corrosive fumes or elevated temperatures.

Effortless processing. Controlled melt.

Compatible with dip, spray, spin, or roller coating techniques.

STAGE 01

Application

Apply thin coats (< 5 μm / 0.2 mil) per pass to avoid mud cracking during drying cycles.

STAGE 02

Drying

Evaporate water content at 120 °C (250 °F) prior to surfactant bake-off.

STAGE 03

Bake Off

Decompose non-ionic surfactant completely at 250–270 °C (482–518 °F).

STAGE 04

Consolidation

Melt-fuse particles into a continuous film above 280–310 °C (536–590 °F).

Scaled for industrial precision.

Packaged for safety, extended shelf-life, and seamless storage.

25 Liters

44 lbs (20 kg) PE Drum

Ideal for pilot batch production, high-value specialty coatings, and R&D testing.

1,000 Liters

2,750 lbs (1,250 kg) IBC Tote

Engineered for continuous commercial manufacturing and automated filling lines.

Designed to work together.

Pair Everflon™ FEP D50 with our complementary fluoropolymer dispersions.

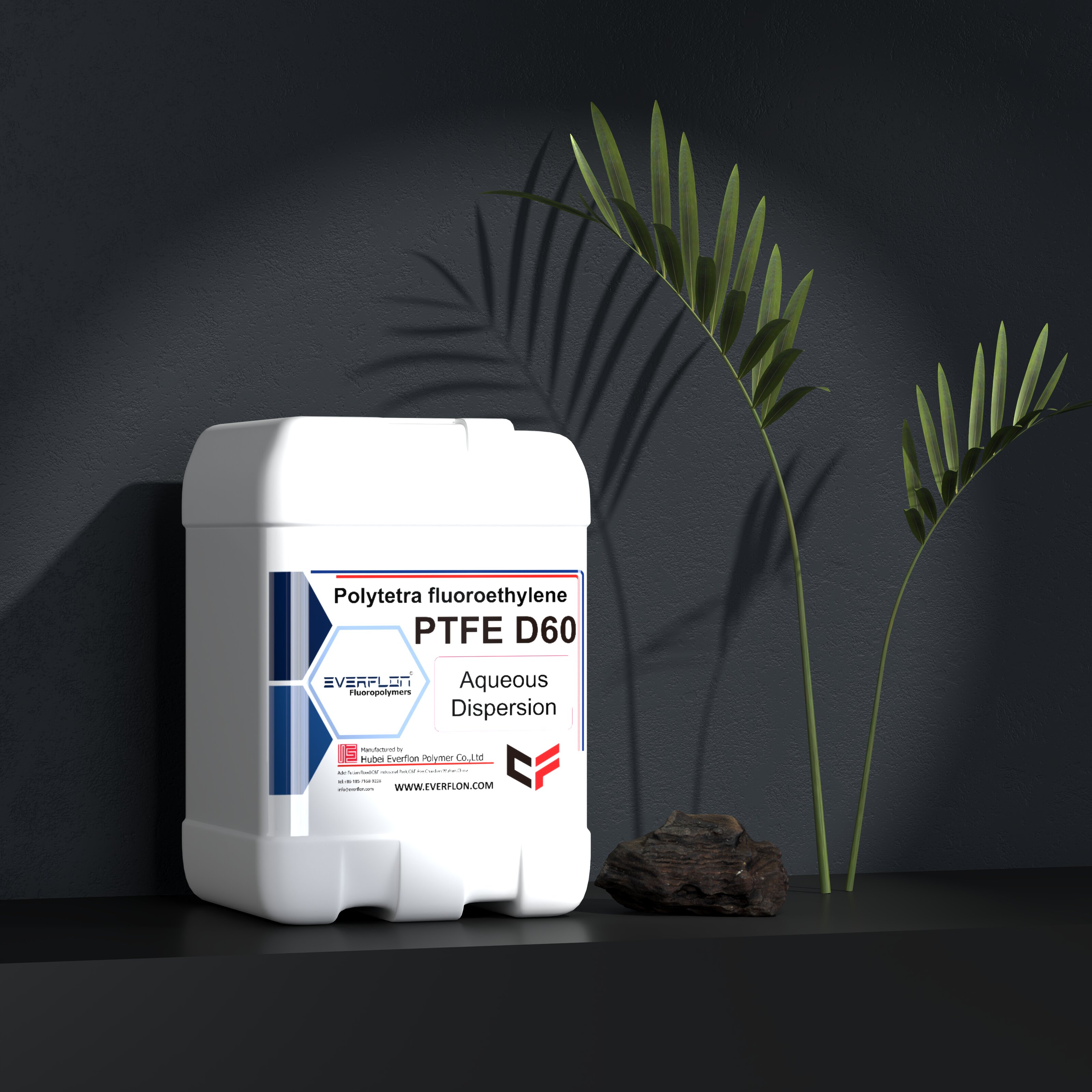

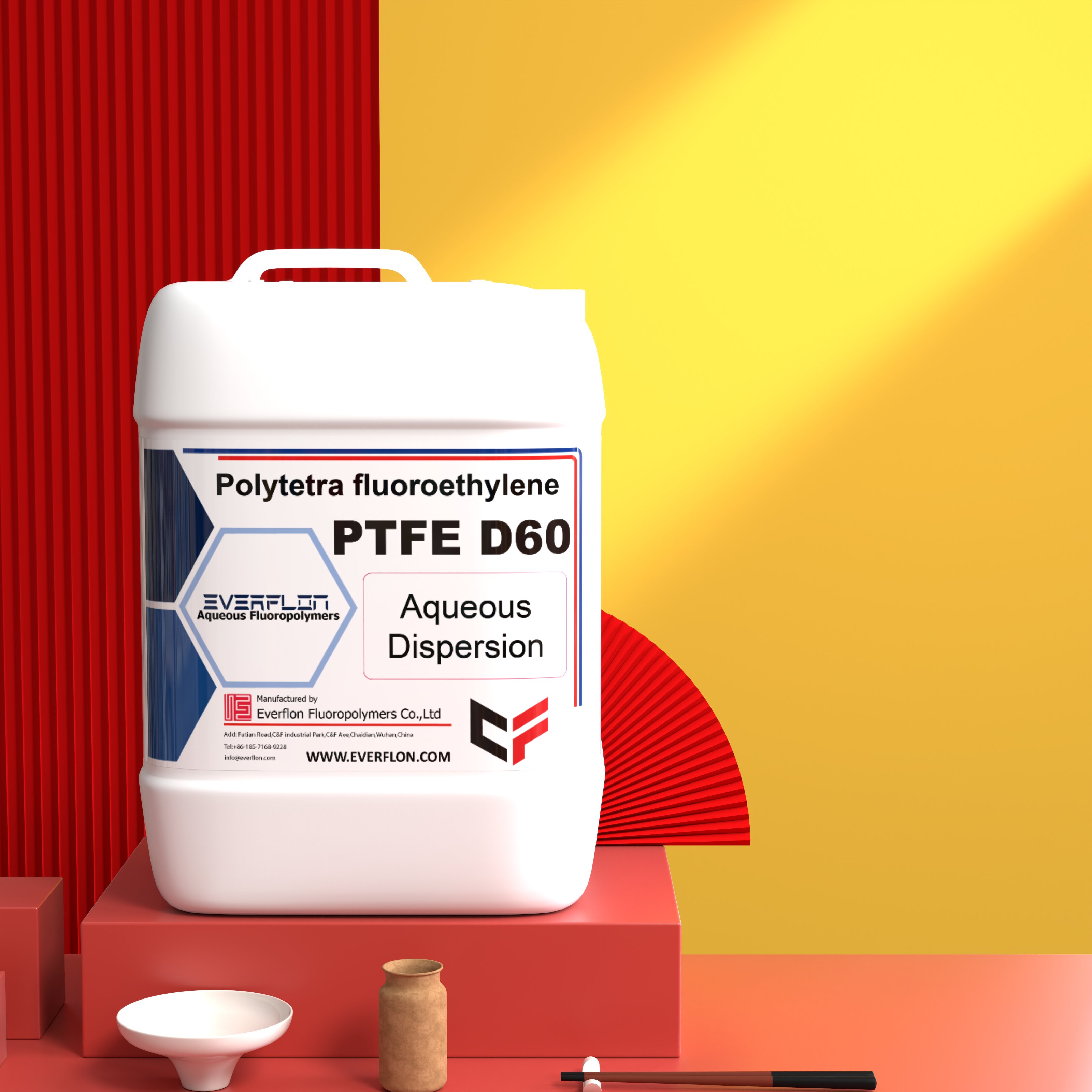

PTFE Dispersion

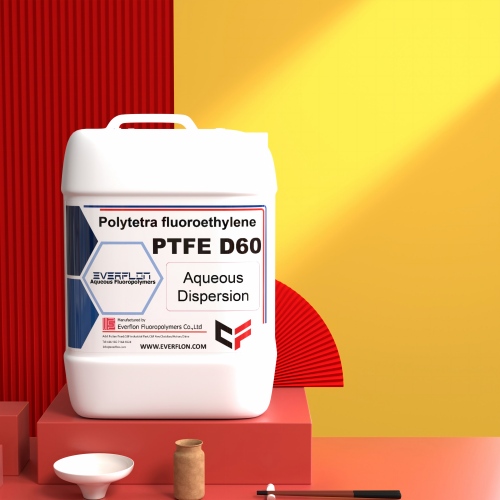

Everflon™ PTFE D60

60% solids aqueous PTFE dispersion with 210nm spherical particles for superior fabric coating and wetting.

Learn more >

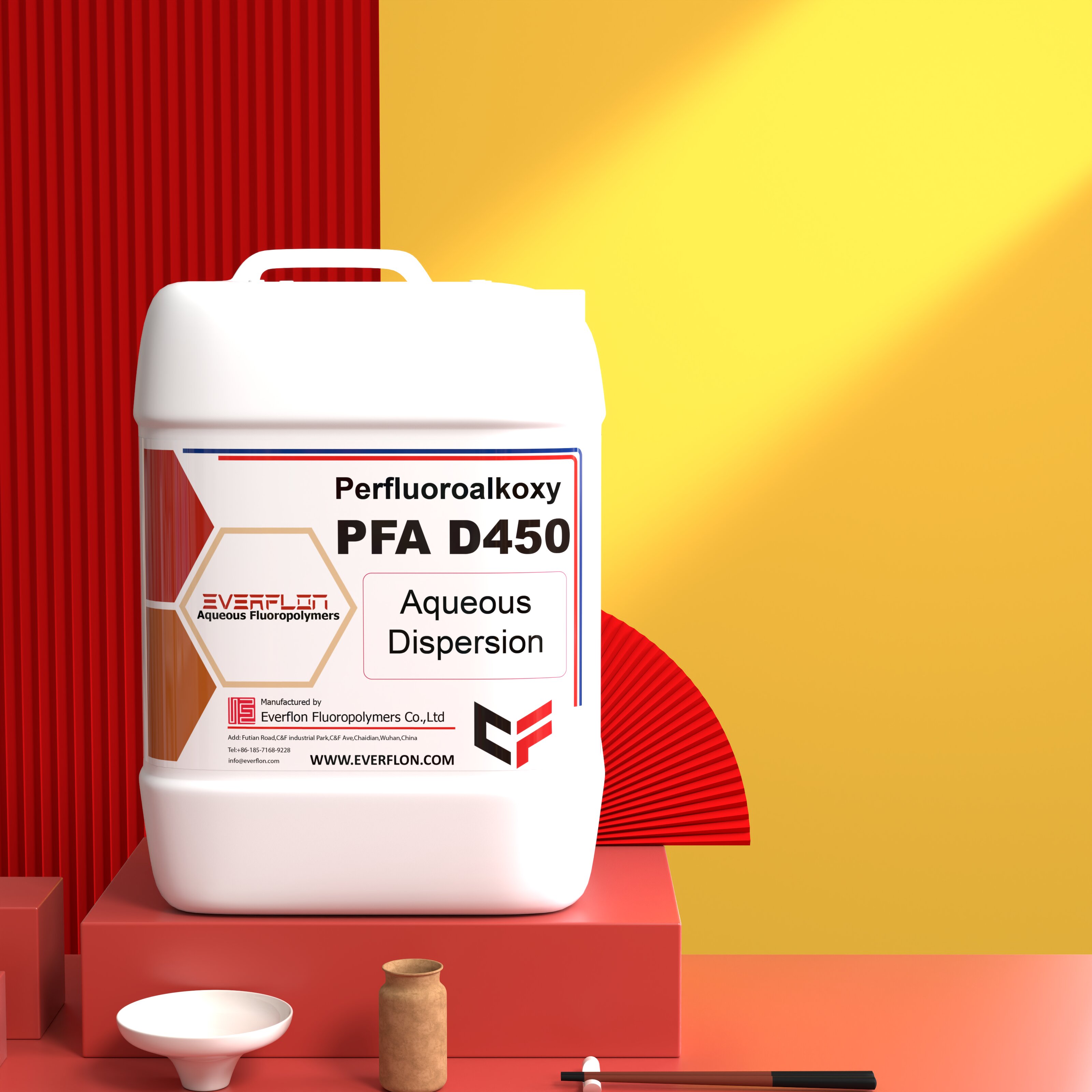

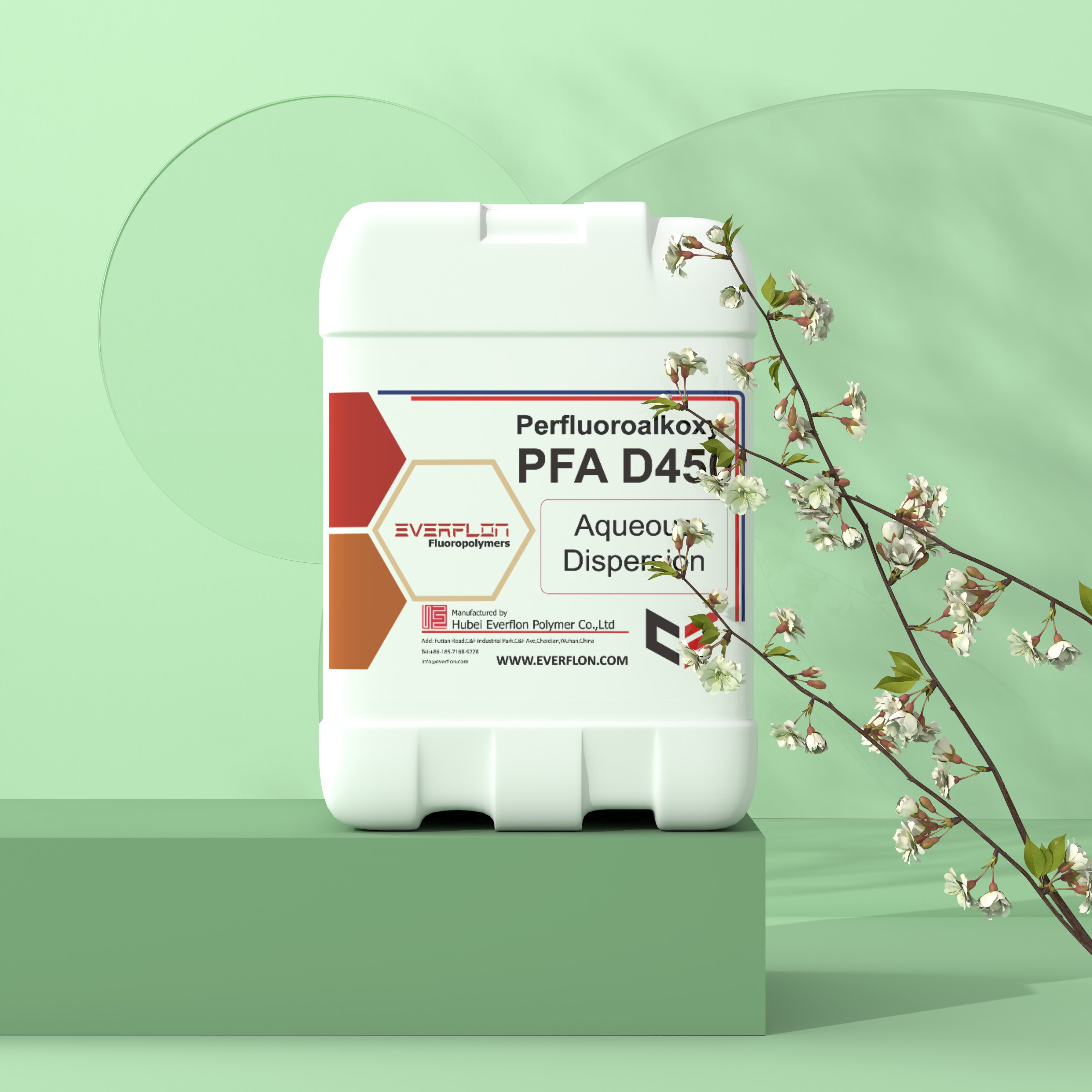

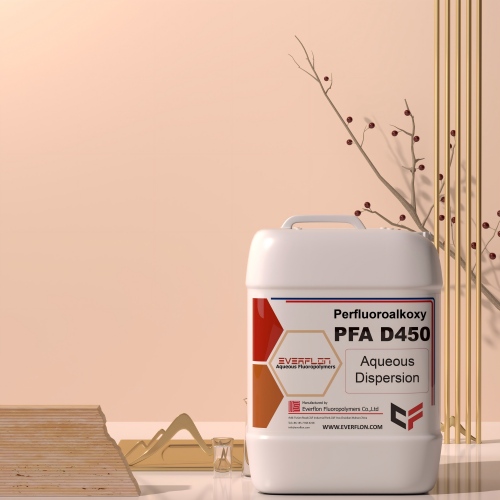

PFA Dispersion

Everflon™ PFA D450

Higher-temperature aqueous PFA dispersion engineered for extreme thermal stability up to 500°F.

Learn more >

Precision by the Numbers.

Technical Data Sheet / Specification

Everflon™ FEP Dispersion D50

High-Performance Fluorinated Ethylene Propylene Aqueous Dispersion Matrix

Category	Technical Properties	Test Method	Typical Value
Physical Properties	Solid Content (wt%)	ASTM D4441	50%
	Average Particle Size (μm)	ASTM D4441	0.25 μm
	Dispersion pH Value	ASTM D4441	9.0 – 10.0
Rheology & Melt Flow	Brookfield Viscosity (mPa·s)	ASTM D4441	15 – 30 mPa·s
Rheology & Melt Flow	Melt Flow Index (MFI, g/10min @372°C, 5kg)	ASTM D2116	8.0 – 12.0
Thermal Performance	Base Resin Melting Point	ASTM D2116	260 °C / 500 °F
Process Characteristics	• Exceptional Shear Stability: Engineered for precision coating and demanding impregnation processes; highly resistant to coagulation under high shear rates. • Superior Adhesion Profile: Enhances structural bonding to metallic surfaces (e.g., SUS316L, copper foils) and fiberglass substrates, delivering premium corrosion resistance. • Low Settling Tendency: Formulated with premium non-ionic surfactants ensuring stellar long-term shelf-life and dilution stability.

🎯 Target US Industry Vertical

Semiconductor wet processing equipment lining, high-frequency 5G/6G RF coaxial data cables, aerospace insulation, and architectural high-performance fiberglass membranes.

🛠️ Recommended Processing

Optimized for standard industrial methodologies including Spray Coating, Roller Coating, and automated Continuous Dip Impregnation lines.

Disclaimer: The technical data provided herein represents typical properties based on standardized laboratory evaluations (e.g., ASTM D4441/D2116) and should not be used as absolute product specifications. End-users are strongly advised to perform independent testing on specific substrate matrices (e.g., critical copper alloys, woven fiberglass, specialized liners) to verify exact sintering profiles, thermal stress boundaries, and adhesion performance for compliance with specialized regulatory parameters.
