FEP 4601
Everflon™ Extreme Molecular Weight Fluoropolymers
FEP 4601
The ultimate ceiling of stress-crack resistance and flexural durability.
Engineered for ultra-pure semiconductor fluid distribution, chemical bellows, heavy corrosion linings, and severe-duty conduits.
2.0 g/10 min
Melt Flow Index Benchmark (ASTM D2116)
> 100 kV/mm
Dielectric Strength (0.25 mm)
2.03
Relative Permittivity @ 1 GHz
205°C / 400°F
Continuous Service Temp.
Maximum Molecular Toughness
Unsurpassed flexural fatigue immunity and environmental stress-crack defense.
Ultra-Low MFI 2.0
Maximum Melt Strength & Molecular Chain Integrity
Superior Melt Viscosity: Formulated with extreme molecular weight parameters (MFI 1.5–2.5 g/10min), FEP 4601 delivers exceptional melt strength for thick-walled extrusion, demanding compression molding, and zero-sagging structural shapes.
Maximum ESCR & Flex Life
Ultimate Resistance to Environmental Stress Cracking
Absolute Crack Immunity: Sets the benchmark for ESCR and MIT flex fatigue endurance. Resists stress crazing and micro-fracturing under aggressive chemical attack, constant mechanical vibration, and extreme thermal cycling.
Pure Dielectric Shield
Lossless High-Voltage & High-Frequency Performance
Ultra-Low Permittivity (2.03 @ 1 GHz): Provides uncompromised electrical isolation for high-voltage industrial leads and precision sensors, backed by a dielectric breakdown strength greater than >100 kV/mm.
Absolute Chemical Defense
UL 94 V-0 Safety & Zero Ionic Contamination
UHP-Grade Cleanliness: Features low extractables and zero ionic leaching for sensitive wet-bench chemistry. Defies aggressive boiling acids, fuming oxidizers, and harsh solvents up to 205 °C (400 °F) with top-tier UL 94 V-0 ratings.
Mission-Critical Applications
Engineered for semiconductor wet benches, high-purity valves, and dynamic bellows.
APPLICATION 01
Semiconductor UHP Chemical Tubing & Fittings
Premium resin for ultra-pure fluid handling systems, wet bench chemical distribution loops, valve bodies, and high-purity fittings requiring maximum resistance to chemical stress cracking.
APPLICATION 02
High-Cycle Chemical Bellows & Expansion Joints
Extrusion and compression molding of heavy-duty flexible bellows, metering pump diaphragms, and thermal expansion joints enduring rigorous mechanical and thermal fatigue cycles.
APPLICATION 03
Corrosion Linings & Heavy Industrial Conduits
Thick-wall anti-corrosion pipe linings, vessel sheets, and severe-duty protective conduits designed to withstand aggressive mineral acids and organic solvents under continuous operation.
Datasheet & Material Properties
Technical Specifications at a Glance
| Property | Test Method | Typical Value | Engineering Assessment & Notes |
|---|---|---|---|
| Melt Flow Index (MFI) | ASTM D2116 | 1.5 – 2.5 g/10 min | Extreme molecular weight for absolute stress-crack resistance |
| Specific Gravity | ASTM D792 | 2.15 | Dense, ultra-high purity fluoropolymer matrix |
| Tensile Strength | ASTM D638 | 27 MPa | Peak tensile endurance & heavy mechanical pull strength |
| Elongation at Break | ASTM D638 | 360 % | Highest flexural ductility and extreme elongation retention |
| Izod Impact Strength (23 °C) | ASTM D256 | No Break | Uncompromised toughness from cryogenic to elevated thermal extremes |
| Dielectric Strength (0.25 mm) | IEC 243 / ASTM D149 | > 100 kV/mm | High-voltage insulation armor and electrical surge protection |
| Relative Permittivity (1 GHz) | IEC 250 / ASTM D150 | 2.03 | Low dielectric constant & lossless high-frequency signal propagation |
| Limiting Oxygen Index (LOI) | ISO 4589 / ASTM D2863 | > 95 % | UL 94 V-0 top-tier fire safety rating |
| Continuous Service Temp. | --- | 205 °C / 400 °F | Engineered for continuous thermal and environmental extremes |

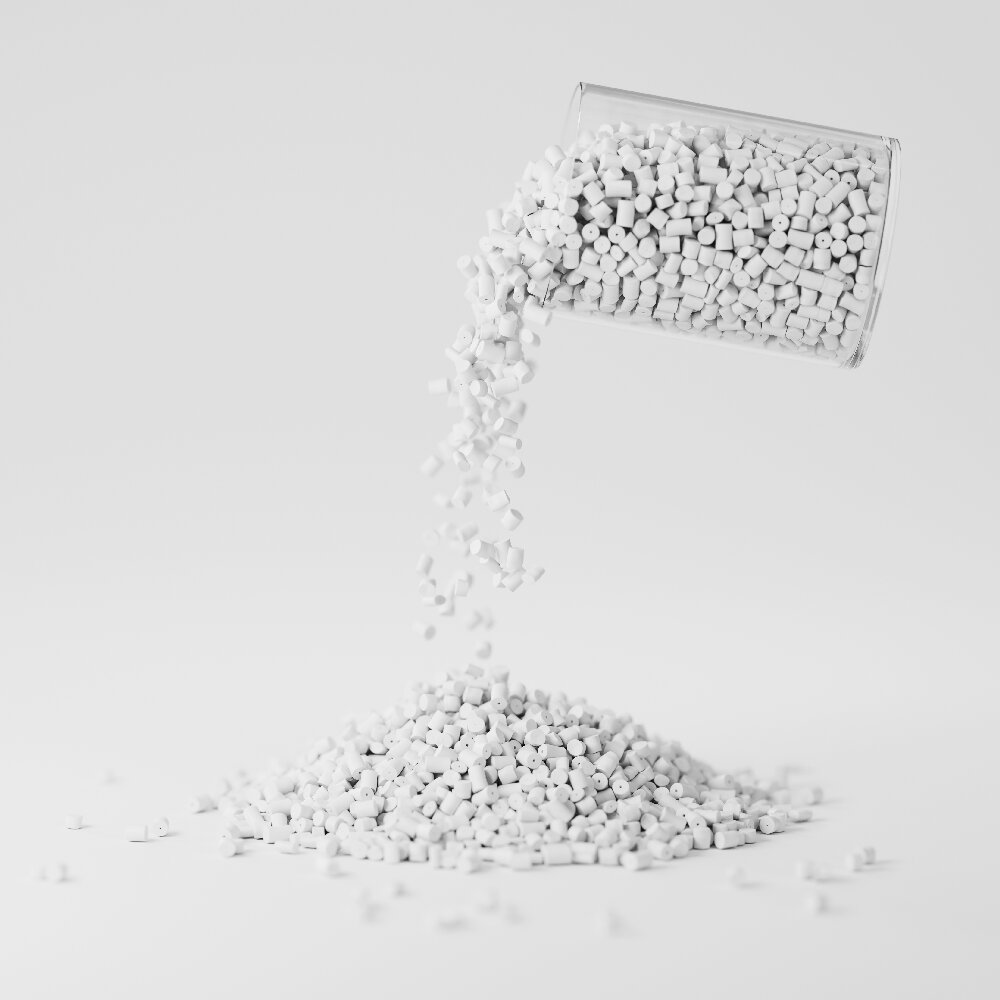

Pellet Purity & Quality

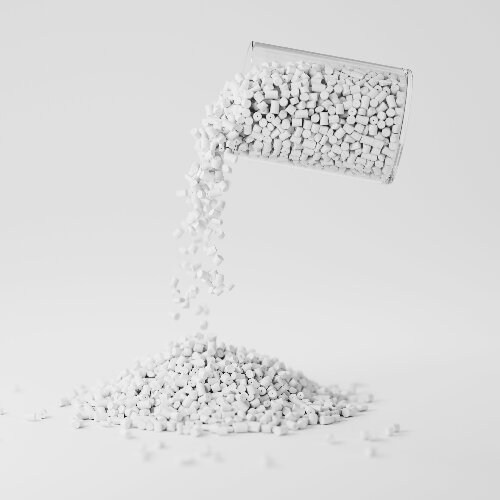

Supplied in consistent 3 mm (0.12 in) dust-free translucent pellets ensuring uniform extruder feed rate and stable melt barrel pressure.
Processing Equipment
Compatible with standard heavy-duty melt extrusion, compression molding, and transfer molding. Corrosion-resistant nickel alloys (Hastelloy, Inconel) recommended (360°C–400°C).
Packaging Standards
Delivered in heavy-duty 25-kg (55.1-lb) drums sealed with double-layer moisture-proof polyethylene liners to safeguard semiconductor cleanroom purity.
Quality Standards & Environmental Stewardship
Certified Quality. Uncompromising Environmental Standards.
✓ Flame & Fire Safety
UL 94 V-0 Certified
Everflon™ FEP 4601 achieves the highest UL 94 V-0 flammability classification with an LOI over 95%. It fully complies with strict U.S. National Electrical Code (NEC) plenum fire standards and aerospace flame propagation requirements.
✓ Global Chemical Compliance
RoHS 3 & REACH SVHC
Manufactured without restricted hazardous chemicals. Fully compliant with EU RoHS Directive 2011/65/EU (and 2015/863) and certified free of REACH Substances of Very High Concern (SVHC) for seamless international export.
✓ High Purity & PFOA Free
FDA 21 CFR & Zero-PFOS/PFOA
Synthesized via clean polymer technology containing zero non-compliant PFOA/PFOS surfactants. Meets FDA 21 CFR 177.1550 criteria for chemical tubing, food processing, and semiconductor fluid handling systems.
Everything you need. Atom by atom.
Complete catalog and specs. Download now.
Meet the Everflon™ FEP all-stars.
Even better together.

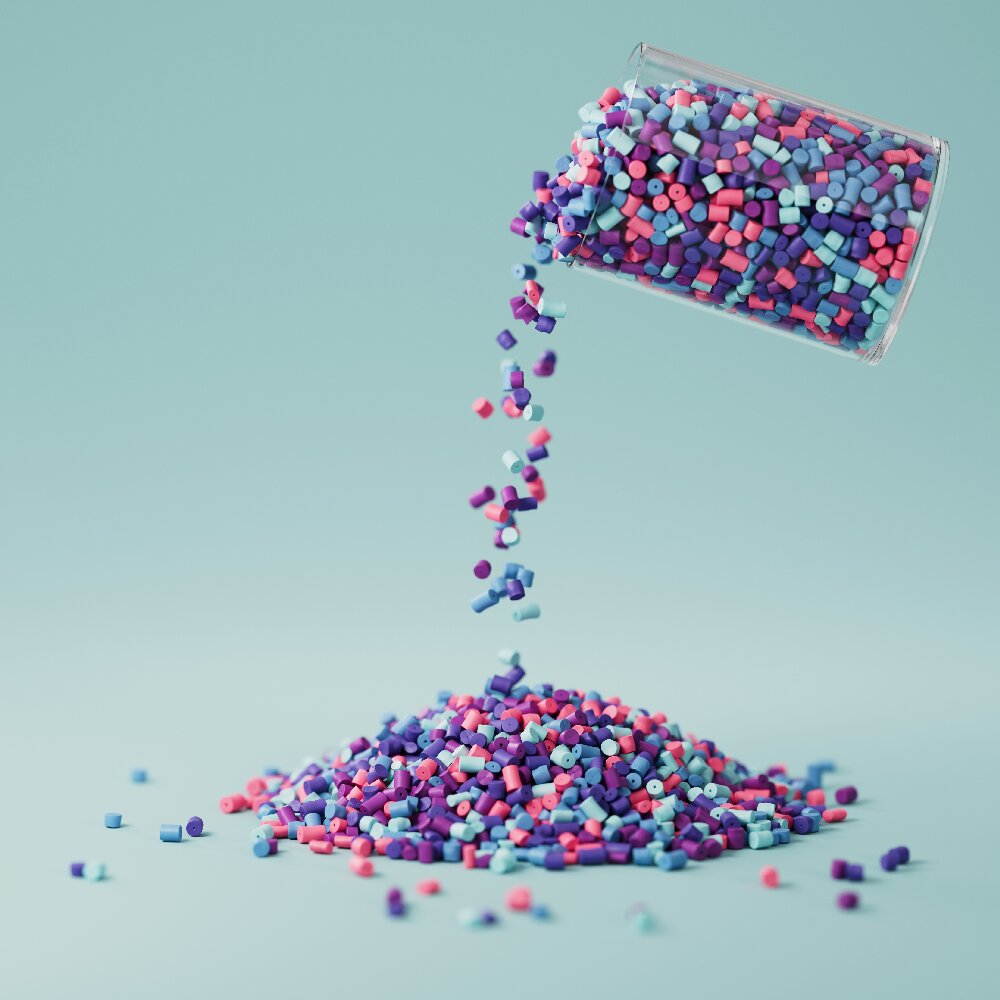

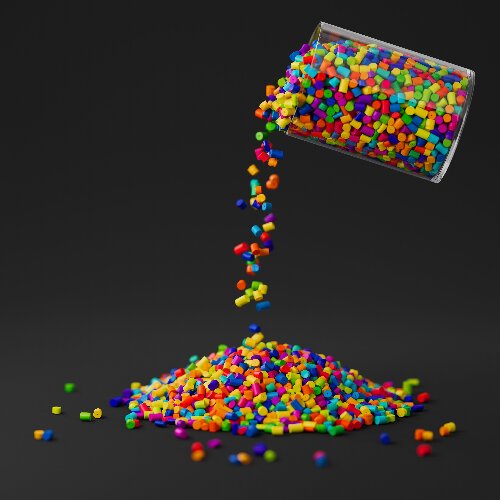

Everflon™+ FEP Color Concentrate
Everflon™+ FEP Foam Resin

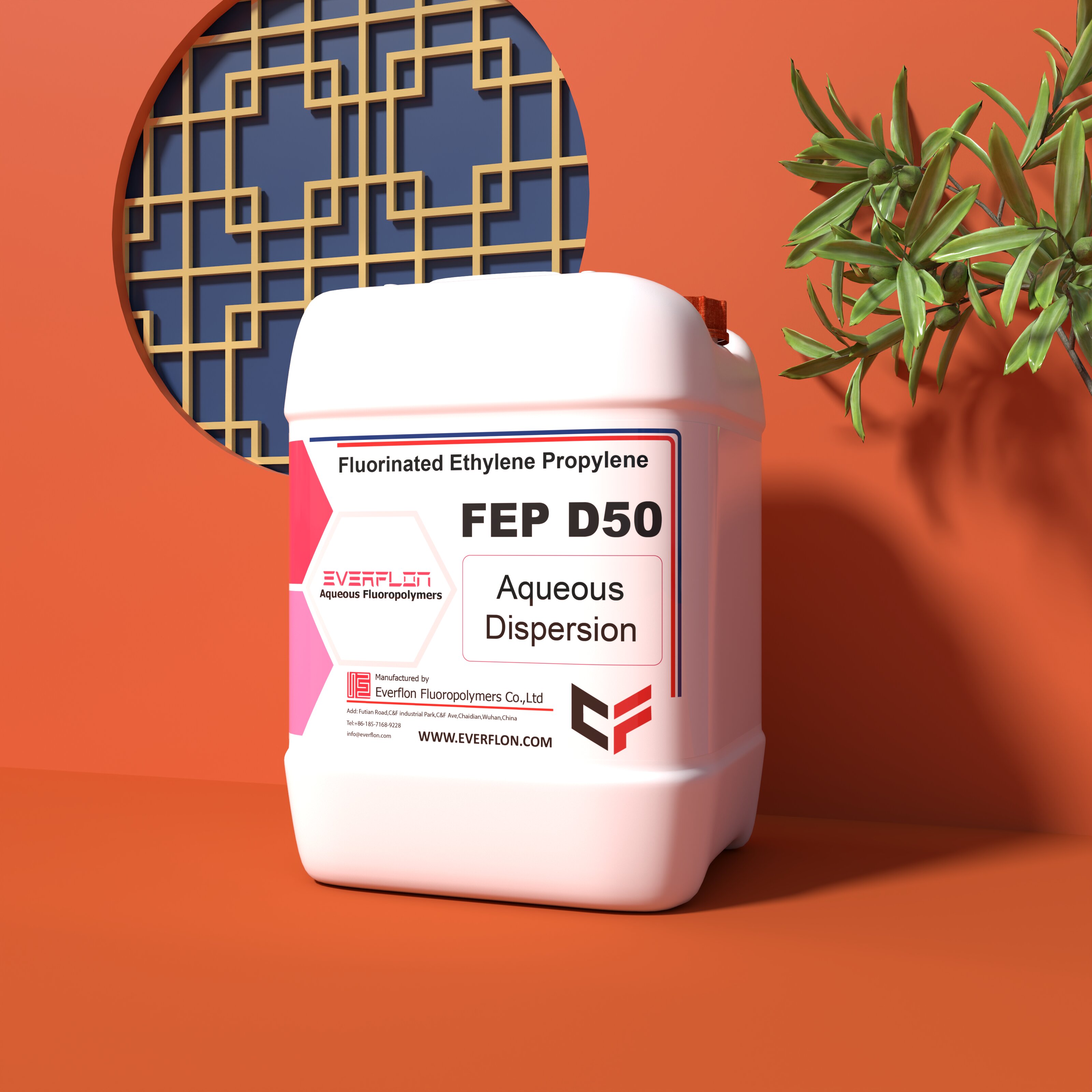

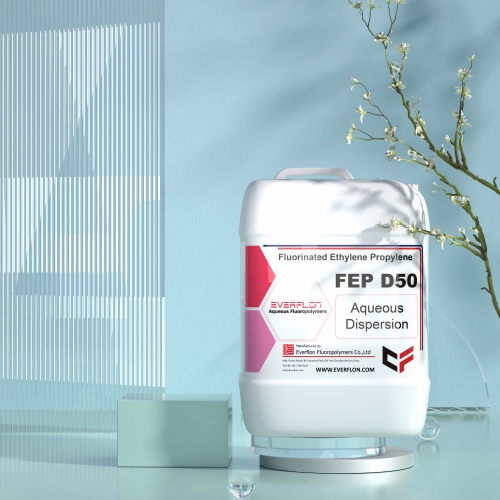

Everflon™ FEP Dispersion
