ETFE 4030
Ultra High-Flow Fluoroplastics
Everflon™ ETFE 4030.
Extreme flow for micro-precision and ultra-thin walls.
A specialized melt-processable copolymer resin tailored with an ultra-high melt flow rate. Engineered to enable maximum line speed in ultra-thin wire insulation, micro-tubing, and complex multi-cavity injection molding.
35–45 g/10min
Ultra-High Melt Flow (MFR)
150 °C / 302 °F
Continuous Service Temp
UL 94 V-0
Flame Rating
ASTM D3159
Type I, Grade 3 Standard
Unrestricted Flow Velocity
Tailored for ultra-fine micro-processing.
Everflon™ ETFE 4030 reduces melt pressure at high shear, ensuring consistent resin delivery across ultra-thin cross-sections and high-speed coating lines.
01
Ultra-High Melt Flow (MFR 35–45)
Unlocks maximum extrusion draw-down and zero-hesitation cavity filling in intricate multi-cavity micro-molding applications.
02
Ultra-Thin Wall Capabilities
Achieves smooth surface finishes and pinhole-free continuous coatings on miniature aerospace wires, sensor lines, and medical micro-catheters.
03
Broad Thermal Span
Maintains continuous thermal capability up to 150 °C (302 °F) with excellent mechanical retention and impact strength down to cryogenic temperatures.
04
Dielectric & Chemical Integrity
Complete inertness to solvents, aggressive acids, and fuels combined with low dielectric constant (2.6) for precision high-speed data cables.
Technical Datasheet (TDS)
Everflon™ ETFE 4030 Property Data
Meets ASTM D3159 Type I, Grade 3
Processing & End Uses
Target Applications & Processing Guidelines
Engineered for high-rate wire drawing, thin-gauge tubing, and multi-cavity micro injection molding.
■ Ultra High-Flow End Uses
Ultra-Thin Wire & Cable Insulation: Micro-coaxial cables, sensor wires, and aerospace data lines.
Micro-Tubing & Medical Catheters: Smooth-bore fluid conduits, analytical tubing, and chemical dispensing lines.
Multi-Cavity Micro Connectors: High-density electronic sockets, miniature housings, and coil bobbins.
Precision Thin-Walled Labware: Delicate test cassettes, micro-valves, and analytical disposable elements.
High-Clarity Ultra-Thin Films: Cast films requiring uniform thickness and pinhole-free barrier performance.
■ Melt Processing Recommendations
Processing Techniques: High-speed extrusion, multi-cavity micro-injection molding, and transfer molding.
Barrel & Melt Temperatures: Heating zone between 320 °C – 345 °C (610 °F – 653 °F). Long L/D extruder barrels recommended.
Die Dynamics: High shear thinning permits extremely narrow die clearances without high backpressure.
Tool Metallurgy: Corrosion-resistant alloys (Hastelloy, Inconel) required in contact with molten resin.
Injection Machines: Reciprocating screw injection units preferred for precise shot repeatability.
Quality Assurance & Standards
Certified quality. Global compliance.
Every production lot of Everflon™ ETFE 4030 undergoes rigorous quality control to meet strict North American industrial benchmarks and safety requirements.
✓
Industry Certifications
ASTM D3159 Standard Compliance
Meets ASTM D3159 Type I, Grade 3 specifications for ultra high-flow ETFE fluoropolymer resins.
UL 94 Flammability Standard
Certified V-0 self-extinguishing classification for critical electronics, aerospace, and defense enclosures.
Dielectric & Electrical Performance
High dielectric strength (65 kV/mm) and low loss factor for high-speed micro-coaxial transmission lines.
RoHS & REACH SVHC Compliant
Free of restricted heavy metals and hazardous substances, fully documented for US supply chain audits.
📦
Packaging & Handling

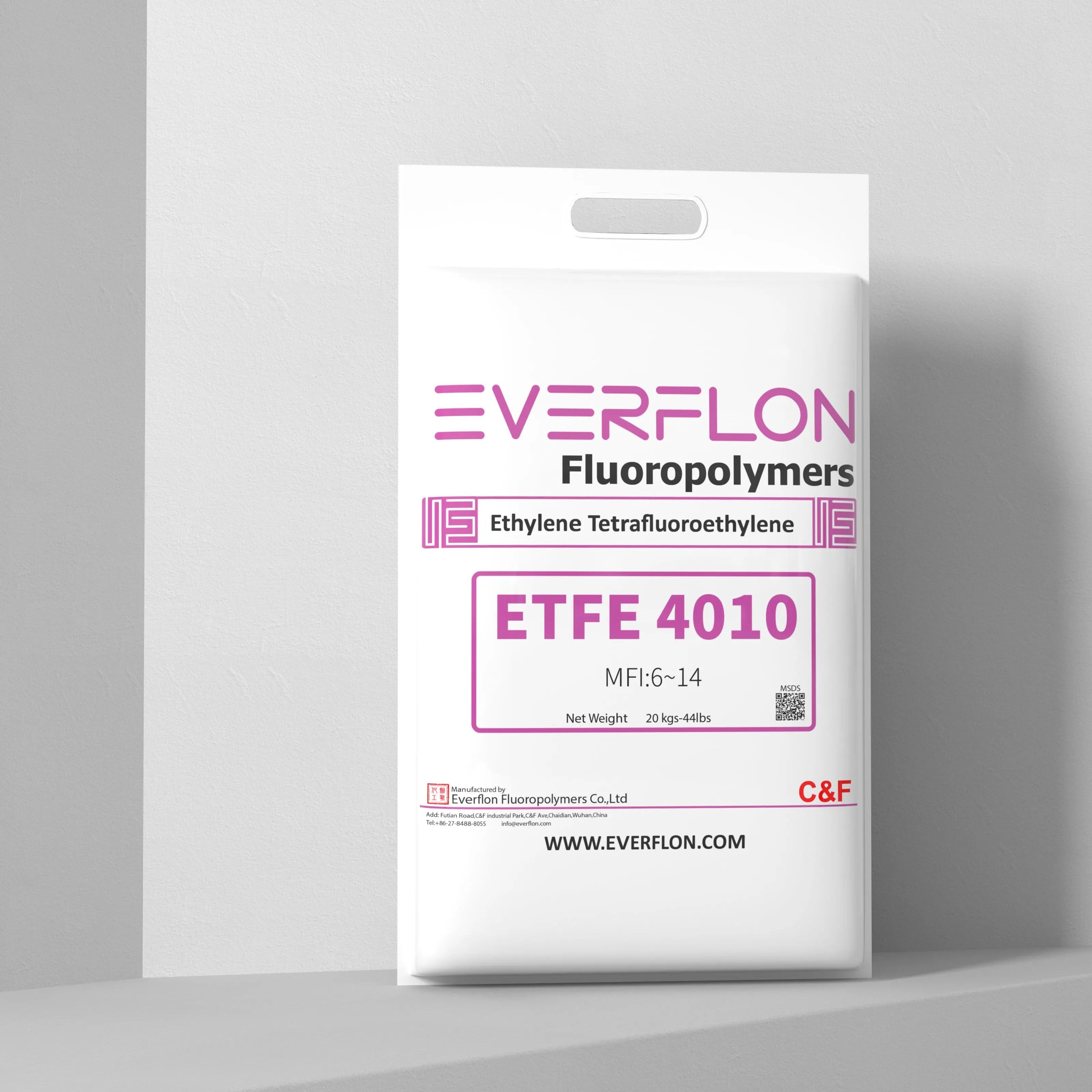

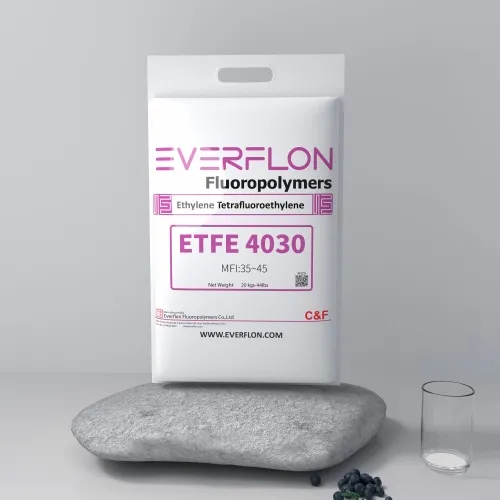

Standard Net Weight Package

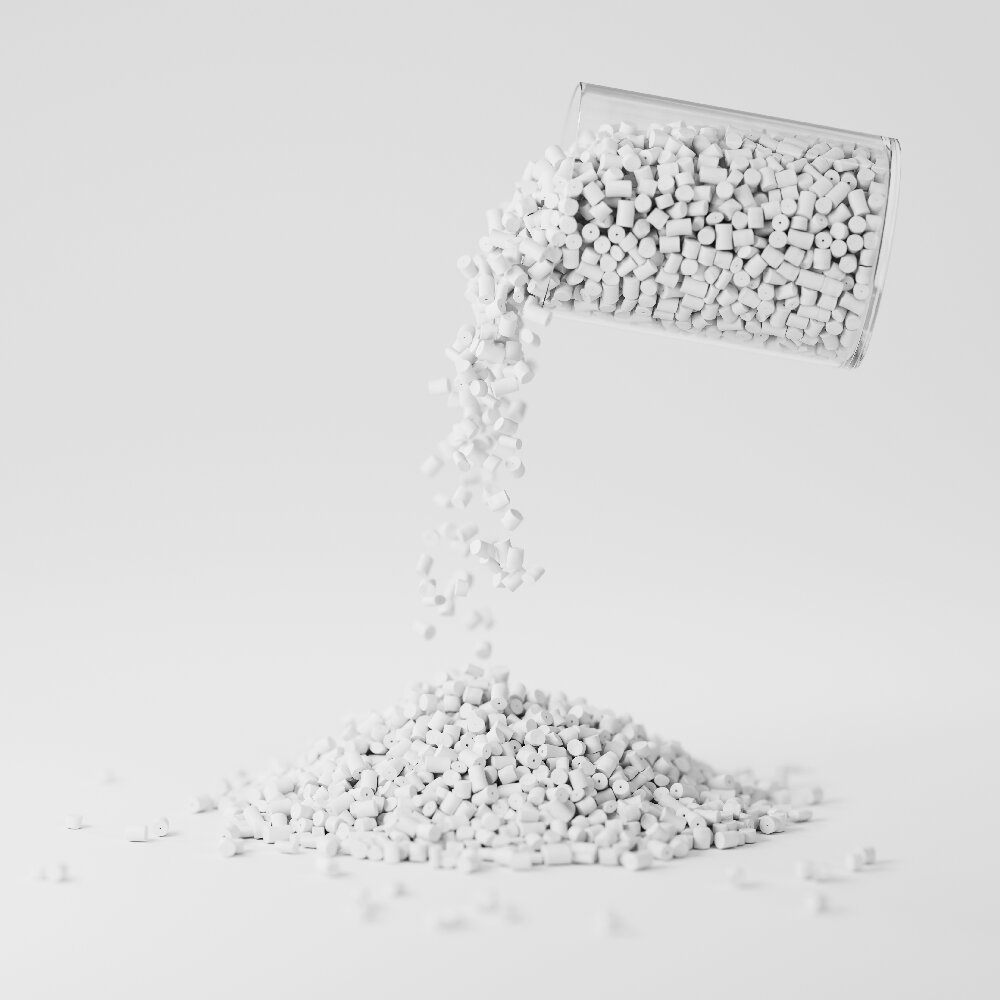

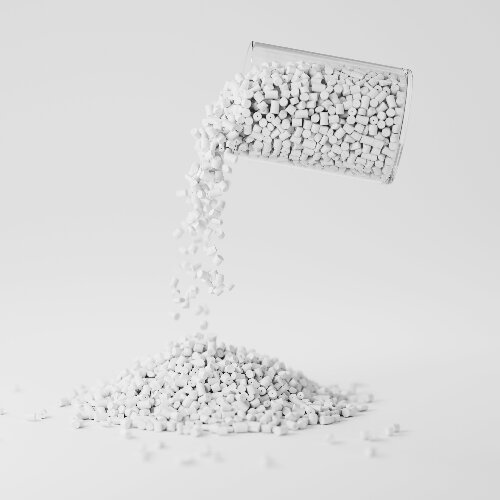

Packaged in translucent, 2.5-mm (0.1-in) uniform pellets within 20.3-kg (45-lb) moisture-sealed plastic bags.
Palletized Logistics (US Standard)
50 bags per standard wooden pallet (1,015 kg / 2,250 lbs net), shrink-wrapped with moisture-barrier covering for shipping.
Indefinite Storage Stability
Resin properties are unaffected by storage time. Store in clean, dry ambient conditions to avoid airborne contamination and water condensation.
Lot Traceability & Documentation
Unique barcode and lot tracking on each bag linked to complete Certificate of Analysis (CoA) and Safety Data Sheets (SDS).
Quality Assurance: All property data is verified per ASTM standard test methods. Full lot-specific CoA provided with each shipment.
ISO 9001:2015 REGISTERED QUALITY SYSTEM
Start with the material. Go beyond.
Everything you need to turn ideas into what’s next.
ETFE. Engineered Beyond Boundaries.
Significant Others

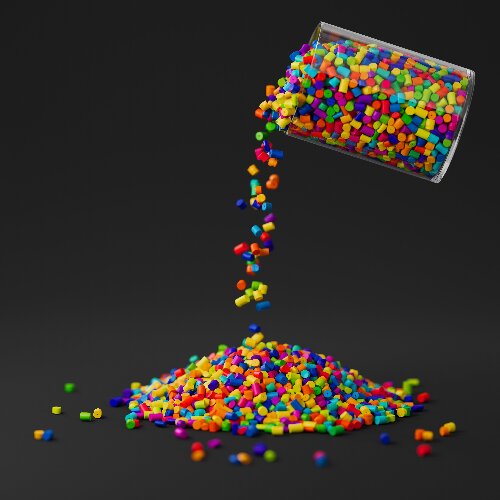

Everflon+ ETFE Color Concentrate
Everflonultra™ ETFE Cross Linkable

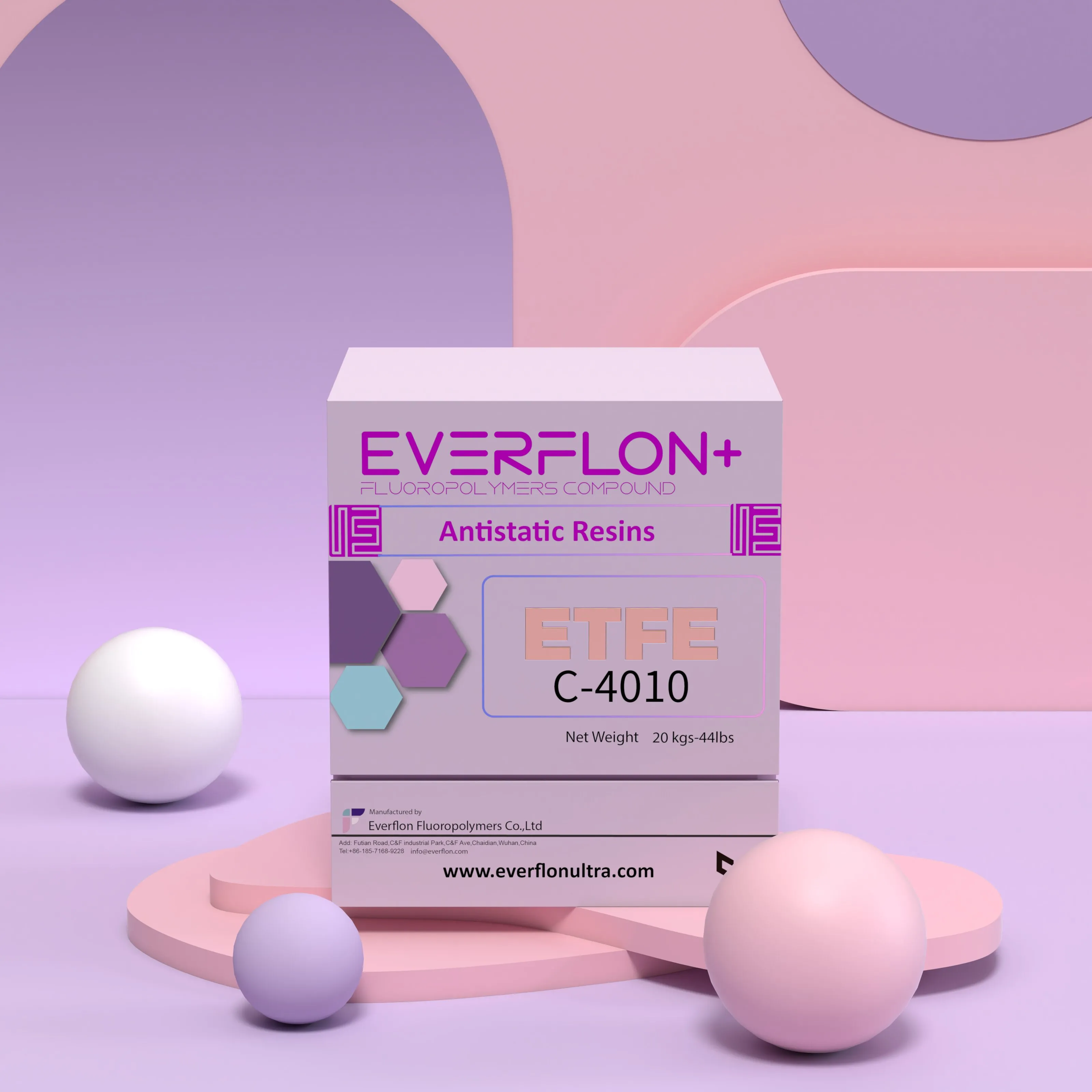

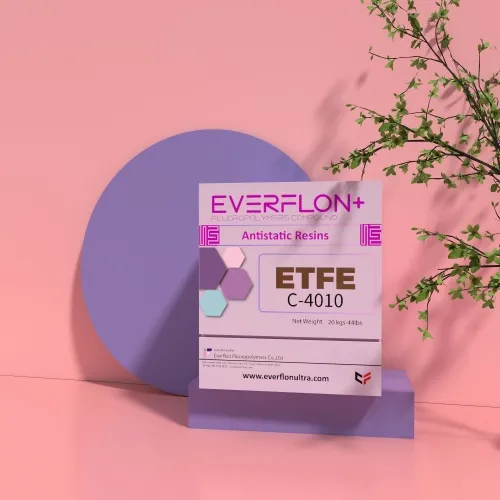

Everflon™+ ETFE Compound
