Rotational Molding Fluoroplastic Resin

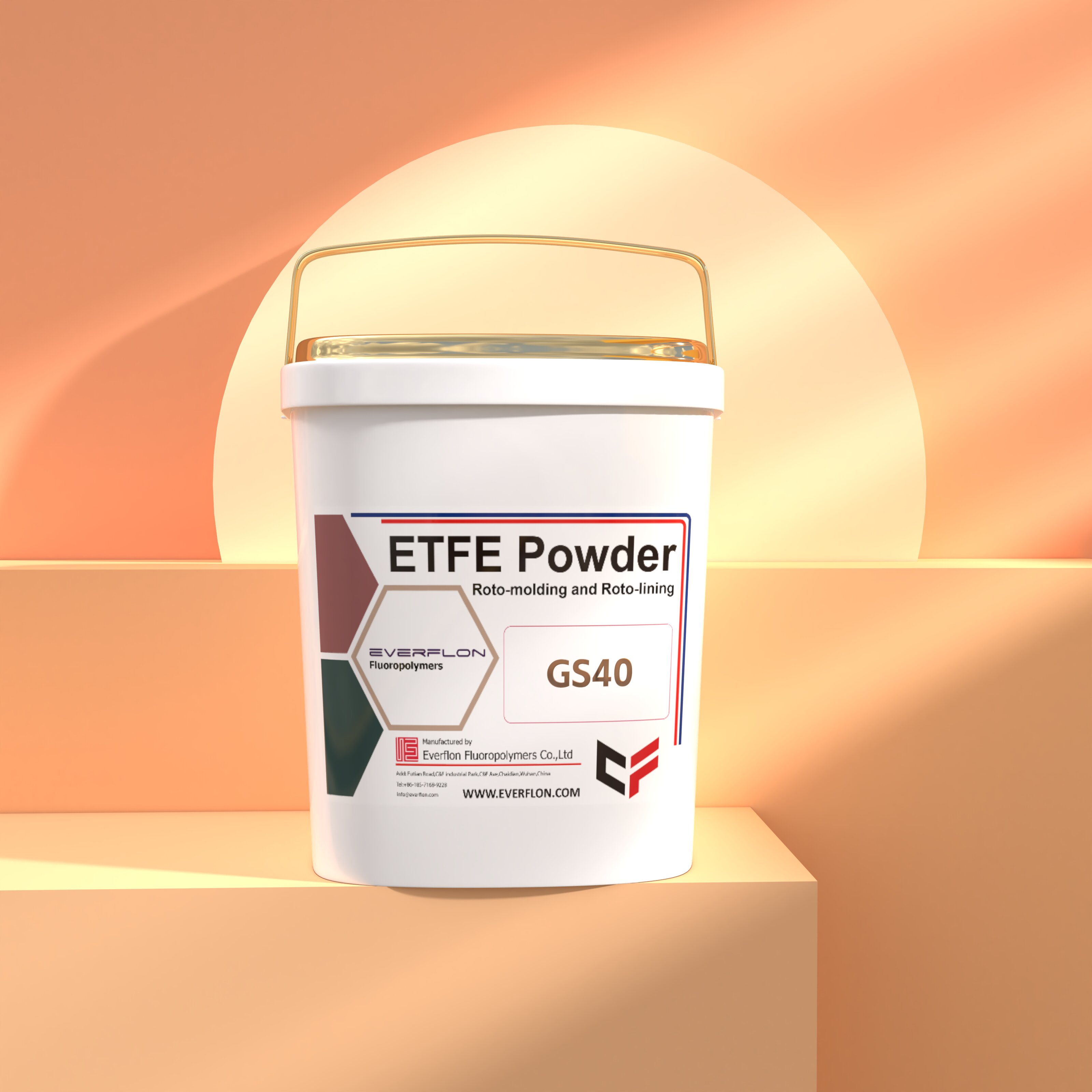

Everflon™ ETFE GS40

A premium-grade, free-flowing ETFE powder engineered specifically for rotational molding and rotolining hollow components in aggressive chemical environments.

Mechanical Toughness & Seamless Rotolining

Engineered particle morphology delivering excellent stiffness, high ultimate elongation, and chemical inertness.

💪

Superior Mechanical Strength

Combines exceptional physical stiffness with outstanding cut-through and abrasion resistance, maintaining high property retention from -100°C to +150°C.

🌀

Controlled Powder Morphology

Precision-controlled particle size (average 270 µm) and bulk density (750 g/L) ensure free-flowing behavior and bubble-free fusion across complex internal contours.

🛡️

Robust Chemical Inertness

Outstanding weatherability and chemical resistance to most industrial acids, bases, and aggressive solvents in continuous liquid and vapor contact.

Engineering Data

Typical Property Data for Everflon™ ETFE GS40

Property Parameter	Test Method (ASTM)	Unit	Typical Value
Thermal Properties
Nominal Melting Point	ASTM D3418	°C (°F)	257 (495)
Upper Service Temperature (20,000 hr / UL)	UL / ASTM	°C (°F)	150 (302)
Useful Lower Temperature	ASTM	°C (°F)	-100 (-148)
Melt Flow Rate (MFR 297°C/5.0kg)	ASTM D3159	g/10 min	25
Linear Coefficient of Expansion (0–100°C / 32–212°F)	ASTM D696	mm/mm/°C (in/in/°F)	9 × 10⁻⁵ (5 × 10⁻⁵)
Physical & Particle Characteristics
Specific Gravity	ASTM D792	—	1.72
Average Particle Size	Laser / Sieve	µm	270
Bulk Density	ASTM	g/L	750
General Properties
Water Absorption (24 hr)	ASTM D570	%	< 0.03
Weather and Chemical Resistance	Standard Exposure	—	Outstanding

Fabrication Guidelines

Rotational Molding & Rotolining Parameters

Recommended thermal cycles and mechanical rotation speeds for bubble-free lining of 2.3 mm (0.090 in) thickness.

STEP 01

Substrate Grit Blasting

Remove scratches and burrs. Grit blast interior metal surfaces (e.g., 24-grit aluminum oxide for mild steel) to maximize anchor patterns and lining uniformity.

STEP 02

Venting & Charging

Charge ~360 g/ft² (0.80 lb/ft²) of powder for a 2.3 mm lining. Install vent tubes stuffed with glass wool to prevent internal pressure buildup and exclude contaminants.

STEP 03

Biaxial Rotation Speeds

Apply conventional rotation ratios: 8 rpm major / 9 rpm minor for pipes, tees, and spool pieces; 8 rpm major / 10 rpm minor for spherical bodies.

STEP 04

Ambient Air Cooling

Cool using ambient air to allow the molten ETFE resin to solidify and densify uniformly, creating an integral protective lining. Disassemble hot molds only in ventilated areas.

Typical Minimum Time / Temperature for Bubble-Free Linings (2.3 mm / 0.090 in):

282°C (540°F)

100 min

288°C (550°F)

60 min

293°C (560°F)

50 min

Target Applications & End Products

Ideal for rotational lining of hollow metal structures with complex geometry requiring superior mechanical toughness.

Chemical Processing Industries (CPI)

• Chemical pump casings, impellers, and valve bodies
• Reaction vessels, scrubbers, and distillation column sections
• Complex piping components: elbows, tees, reducers, and manifolds
• Heavy-duty pipe sections with unusual geometric profiles

High-Abrasive & Fluid Handling Systems

• Slurry handling pipes and high-velocity fluid flow equipment
• Hollow industrial containers and storage vessels
• Spool pieces and headers exposed to mechanical wear and vibration
• In-situ protective cladding for large metal tanks and containers

Logistics & Handling

Packaging, Storage & Handling

Preserving resin purity and particle integrity throughout global shipping and storage.

📦

Packaging Specifications

Everflon™ ETFE GS40 is packaged in heavy-duty sealed drums containing 25 kg (55 lb) net weight. Packaging procedures prevent foreign particulate contamination.

🌡️

Storage & Handling Conditions

Store containers under ambient dry conditions to prevent airborne dust contamination and water condensation on the powder when drums are opened.
