ETFE 4003
High-Performance Fluoroplastics
Everflon™ ETFE 4003.
Peak mechanical integrity under extreme stress.
A melt-processable modified copolymer of ethylene and tetrafluoroethylene. Engineered for low flow rate, enhanced flex life, and unmatched environmental stress-crack resistance (ESCR).
4 g/10min
Nominal Melt Flow Rate (MFR)
150 °C / 302 °F
Continuous Service Temp
UL 94 V-0
Flame Rating
ASTM D3159
Type I, Grade 1 Standard
Uncompromising Reliability
Built for severe operational limits.
Where standard thermoplastics fail under continuous mechanical vibration or harsh chemical immersion, Everflon™ ETFE 4003 delivers unmatched structural retention.
01
Superior ESCR & Flex-Life
Formulated with high molecular integrity to withstand continuous cyclic flexing, severe impact, cut-through, and environmental stress cracking.
02
Universal Chemical Inertness
Inert to strong industrial solvents, acids, and bases. Hydrolytically stable with extremely low water absorption (< 0.01%).
03
Broad Thermal Span
Performs continuously up to 150 °C (302 °F) with full mechanical toughness and impact resistance retained even at cryogenic temperatures.
04
Thick-Section Moldability
Controlled low melt flow allows precise transfer molding, compression molding, and heavy-wall encapsulation around metal inserts.
Technical Datasheet (TDS)
Everflon™ ETFE 4003 Property Data
Meets ASTM D3159 Type I, Grade 1
Fabrication & Utility
Target Applications & Processing Guide
Optimized for heavy-duty industrial fabrication requiring prolonged mechanical load and anti-corrosion barriers.
■ Target Industrial End Uses
Chemical Valve & Pipe Linings: Heavy-gauge corrosion barriers, column packings, and pump housings.
Molded Thick-Section Components: Complex parts molded with metal inserts requiring minimal stress cracking.
Pump Impellers & Fluid Handling: High abrasion resistance and mechanical strength under high shear.
Nuclear & High-Radiation Equipment: Meets IEEE 383 standards for nuclear power plant components.
Corrugated Tubing & Conduit: Extreme flex-fatigue life under dynamic thermal cycling.
■ Melt Processing Parameters
Processing Techniques: Conventional melt-extrusion, injection, transfer, compression, and blow molding.
Barrel & Melt Temperatures: Heating zone up to approximately 340 °C (640 °F). Long L/D extruder barrels recommended.
Tool Metallurgy: Corrosion-resistant alloys (e.g., Hastelloy, Inconel) required in contact with molten resin.
Viscosity Behavior: Melt viscosity decreases with increasing shear rate, permitting narrow die extrusion.
Machine Recommendation: Reciprocating screw injection machines preferred.
Quality Assurance & Standards
Certified quality. Global compliance.
Every production lot of Everflon™ ETFE 4003 undergoes rigorous quality control to meet strict North American industrial benchmarks and safety requirements.
✓
Industry Certifications
ASTM D3159 Standard Compliance
Classified as Type I, Grade 1 fluoropolymer resin with verified low-flow and stress-crack performance.
UL 94 Flammability Standard
Certified V-0 self-extinguishing rating for critical aerospace and electrical applications.
IEEE 383 Nuclear Radiation Benchmark
High-energy radiation resistance qualified for use in nuclear power plants and aerospace electronics.
RoHS & REACH SVHC Compliant
Free of restricted heavy metals and hazardous substances, fully documented for US supply chain audits.
📦
Packaging & Handling
Standard Net Weight Package

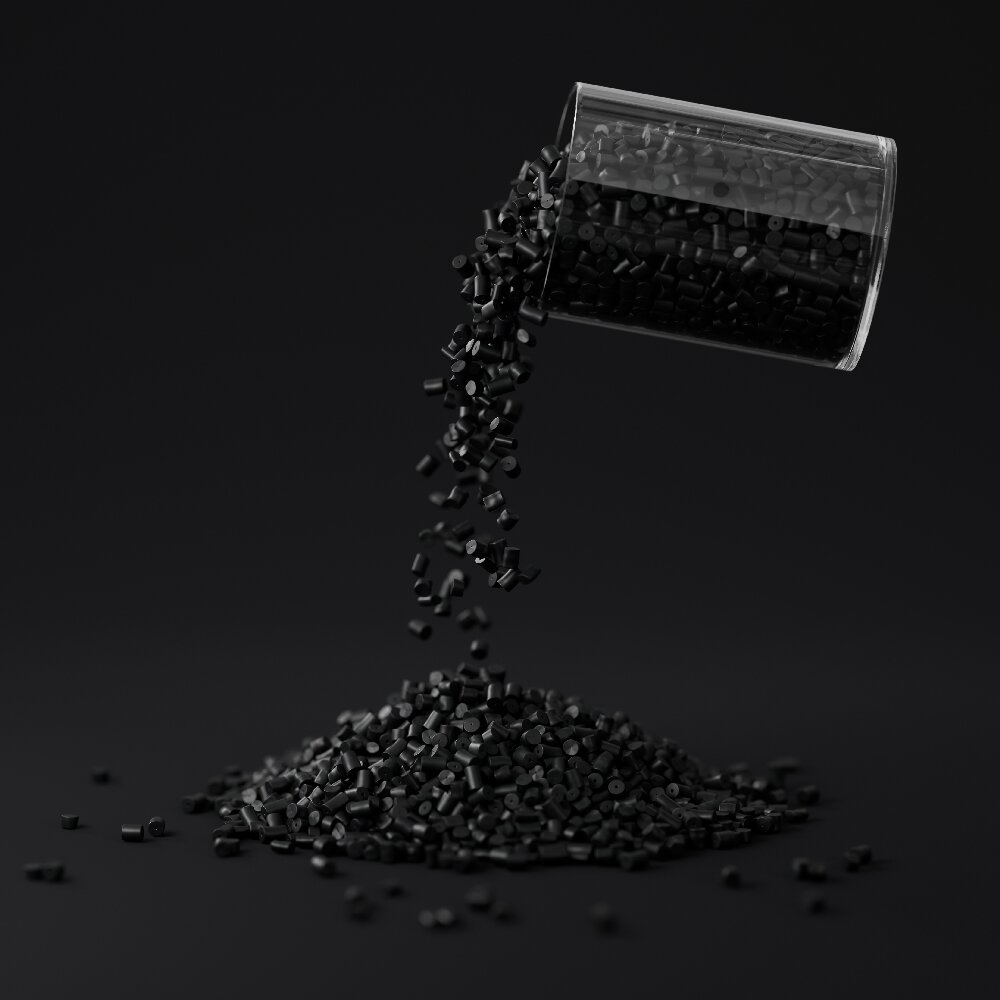

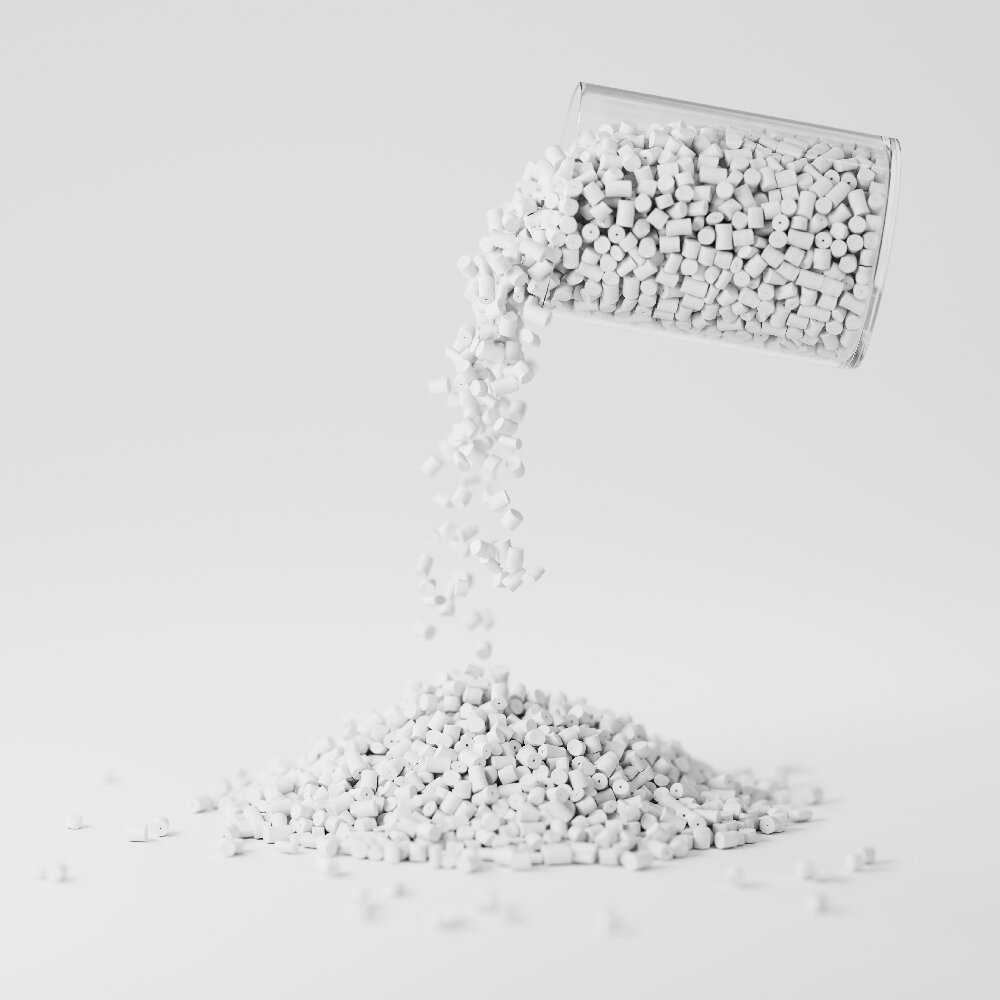

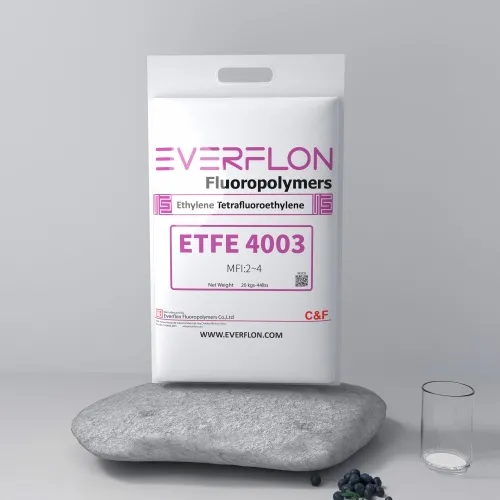

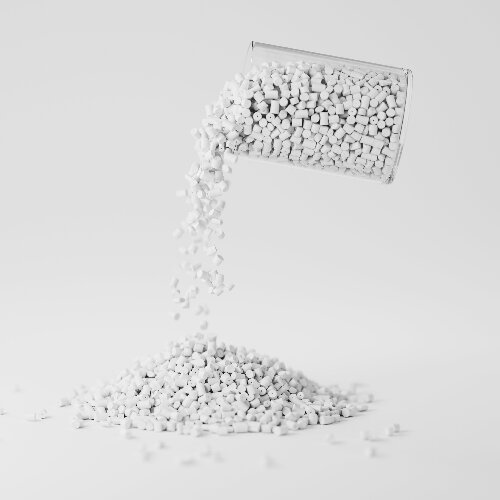

Packaged in translucent, 2.5-mm (0.1-in) uniform pellets within 20.3-kg (45-lb) moisture-sealed plastic bags.
Palletized Logistics (US Standard)
50 bags per standard wooden pallet (1,015 kg / 2,250 lbs net), shrink-wrapped with moisture-barrier covering for international shipping.
Indefinite Storage Stability
Resin properties are unaffected by storage time. Store in clean, dry ambient conditions to avoid airborne dust and moisture condensation.
Lot Traceability & Documentation
Complete lot numbers on each package linked with Certificates of Analysis (CoA) and Safety Data Sheets (SDS).
Quality Assurance: All technical properties are verified under ASTM methods. Full lot-specific CoA provided with each delivery.
ISO 9001:2015 REGISTERED QUALITY SYSTEM
