ETFE Conductive C4003
Conductive & Anti-Static ETFE Fluoropolymer

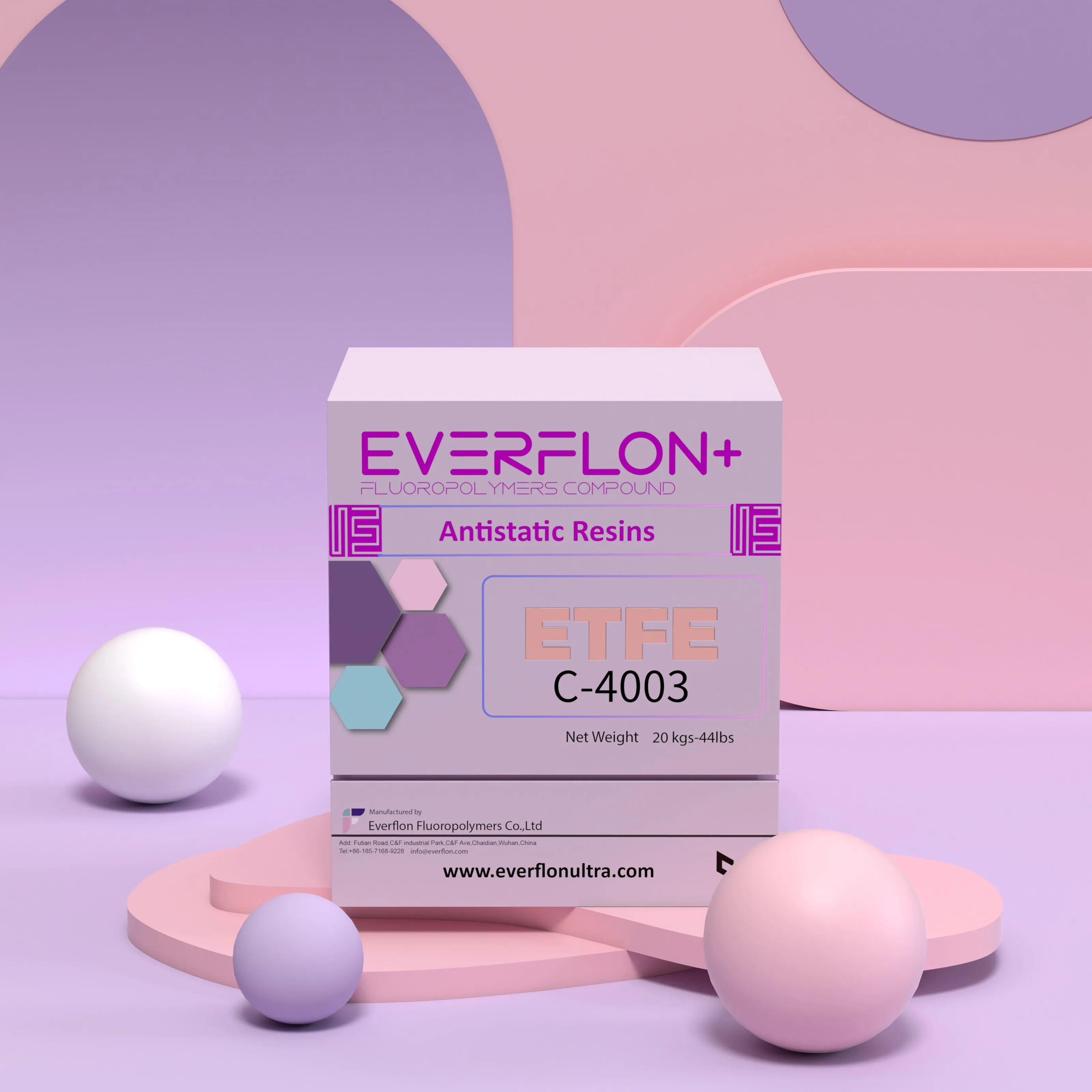

Everflon+™ ETFE C4003.
Superior Toughness. Electrostatic Control.
Engineered copolymer combining outstanding mechanical durability, high-temperature chemical resistance, and carbon-filled static dissipation for automotive fuel lines and industrial anti-static linings.
1.0–3.5 g/10min
MFR (297°C / 49N)
15% Carbon
Conductive Filler
150°C (302°F)
Continuous Service
UL 94V-0
Flame Retardancy
Advanced ETFE Copolymer Engineering
Uncompromising Mechanical Strength & Static Control
Mechanical Toughness
Exceptional Impact Resistance & Flex Life
ETFE outperforms standard fluoropolymers like PFA, FEP, and PVdF in physical toughness, cut-through resistance, and fatigue endurance, making Everflon+™ ETFE C4003 ideal for demanding dynamic automotive and industrial applications.
Carbon-Filled Conductivity
Anti-Static Fuel Line Safety
Integrated with 15% specialized carbon fiber/black filler, C4003 drains electrostatic buildup instantly, preventing vapor ignition and wall degradation in automotive fuel tubing systems.
Chemical Inertness
Resistant to Nearly All Solvents
Exhibits outstanding resistance to strong acids, alkalis, aggressive automotive fuels, and organic chemicals while supporting continuous service temperatures up to 150°C.
Versatile Processability
Optimized for Extrusion & Complex Shaping
Processes smoothly through standard thermoplastic extrusion equipment, allowing manufacturers to produce high-integrity tubing, multilayer hoses, and precision anti-static profiles with high production yields.
Technical Specifications
Typical Property Data
Standard ASTM / ISO laboratory test values for Everflon+™ ETFE C4003 (Alternative to AGC Fluon® CB-8015X).
Fabrication & Processing Guidelines
Extrusion Molding Parameters & Key Applications
01. Extrusion Molding Parameters
Optimized Melt Viscosity
Designed specifically for high-integrity extrusion molding. Standard thermoplastic processing equipment handles Everflon+™ ETFE C4003 efficiently, ensuring consistent wall thickness and smooth internal pipe surfaces.
02. Pre-Drying & Melt Control
Moisture Removal & Stability
Pre-drying at 100°C–120°C for 3 to 4 hours is recommended prior to extrusion. The resin exhibits excellent thermal stability at processing temperatures, minimizing degradation risks during long production runs.
03. Tooling Metallurgy
Corrosion-Resistant Alloys
Barrels, screws, and crossheads in direct contact with molten ETFE compounds should be constructed from corrosion-resistant high-nickel or stainless steel alloys to withstand high processing temperatures.
Target Applications & Industry Solutions
Automotive Fuel Tubes & Vapor Lines Extruded anti-static fuel lines and hoses requiring reliable grounding to prevent electrostatic ignition of combustible vapors.
Chemical Processing Equipment Linings Corrosion-resistant inner layer linings for chemical storage tanks, reaction vessels, pumps, and specialized industrial piping.
Specialized Industrial Tubing & Profiles High-toughness tubing for high-viscosity fluid transfer and static-dissipative profiles in electronics manufacturing.
Logistics & Safety Protocols
Packaging, Storage & Safe Handling Guidelines

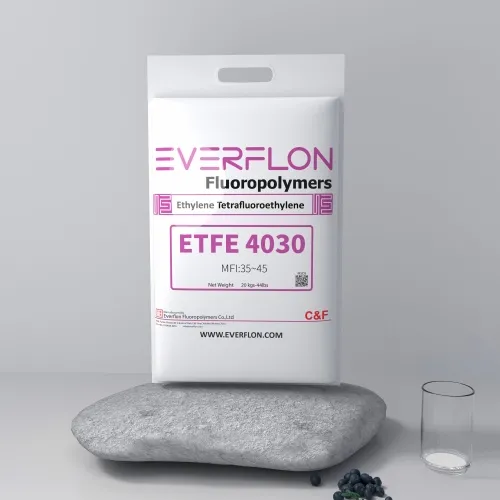

Standard Packaging
Supplied as uniform, dust-free carbon-filled conductive pellets.
25-kg / 45.4-kg Heavy-Duty Drums
Hermetically sealed with a moisture-barrier polyethylene inner liner.
Storage & Pre-Drying
Resin properties are stable under ambient storage. Protect containers from airborne contamination and water condensation.
Drying: 100°C–120°C for 3 to 4 Hours
Recommended prior to processing to achieve optimal surface finish.
Safety Precautions & Ventilation
Process only in well-ventilated areas with Local Exhaust Ventilation (LEV) to evacuate processing fumes completely.
Avoid Tobacco Contamination
Prevent polymer fume fever by keeping tobacco free from resin dust. Consult the Safety Data Sheet (SDS).
See What’s Inside.
The data behind the conductivity.
Unlock the world of ETFE.
Significant Others

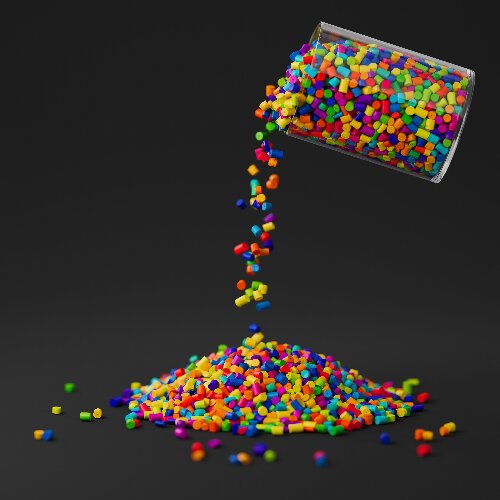

Everflon+ ETFE Color Concentrate
