ETFE Cross Linkable X4010
XLETFE Radiation Cross-Linkable Wire Polymer
Everflon+™ ETFE X4010.
E-Beam Cross-Linking. Extreme Thermal Insulation.
Engineered for aerospace wire harnesses, automotive thin-wall wiring, and high-temperature electronic equipment. Powered by electron-beam irradiation to deliver exceptional solder resistance, mechanical toughness, and thermal aging stability.
8 ~ 15 g/10min
MFI (Melt Flow Index)
200+ °C
Short-Term Limit Rating
150 °C
Continuous Service Temp
Solder Iron
Melt-Resistant Shield
XLETFE Radiation Cross-Linking Architecture
Molecular Reinforcement Beyond Traditional Thermoplastics
Radiation Cross-Linkable
Electron-Beam (E-Beam) Bridging Technology
Everflon+™ ETFE X4010 is optimized for high-efficiency electron-beam irradiation. Following wire extrusion or molding, controlled exposure induces robust three-dimensional polymer network cross-linking, completely eliminating high-temperature flow deformation typical of standard thermoplastics.
Superior Solder Resistance
Eliminates Hot Iron Meltback
During high-density electronic harness assembly and manual soldering, the cross-linked XLETFE insulation layer exhibits exceptional immunity to thermal melting and shrinkage, securing terminal integrity.
Mechanical Abrasion Defense
Exceptional Cut-Through & Scratch Resistance
The cross-linked molecular matrix provides high surface hardness and cut-through durability, easily withstanding tight automotive routing friction and harsh aerospace dynamic pulling forces.
Thin-Wall Lightweight Design
Enhanced Strength Enables Extreme Wire Harness Weight Savings
Because cross-linking multiplies mechanical resilience, wire designs can incorporate thinner insulation walls while maintaining superior dielectric performance, significantly reducing overall harness weight for aerospace and EV efficiency.
Technical Specifications
Typical Property Data
Standard ASTM / ISO laboratory test values for Everflon+™ ETFE X4010 (Pre-crosslink base MFI 8–15, Metric units).
Extrusion & Irradiation Guidelines
Wire Extrusion, E-Beam Parameters & Target Applications
01. High-Speed Wire Insulation Extrusion
Thin-Wall Coating & Stable Parameters
Optimized for high-speed tubular or pressure extrusion lines. Recommended melt temperatures range from 320°C to 360°C. Featuring an MFI of 8–15, it balances melt flow and draw-down tension for uniform concentricity on fine-gauge conductors.
02. Electron-Beam (E-Beam) Irradiation
Precise Dosimetry & 3D Network Building
Extruded wires are routed through an electron accelerator for cross-linking. Optimized dosage levels lock in superior thermal endurance, cut-through protection, and high-temperature solder melt resistance.
03. Conductor & Equipment Compatibility
Tinned / Silver-Plated Copper
Seamlessly compatible with tinned copper, silver-plated copper, and high-strength alloy conductors. Extruder fluid-contact parts should utilize corrosion-resistant alloy steels for continuous production runs.
Target Applications for Extreme Wire & Cable Markets
Aerospace & Defense High-Temp Wire Harnesses Lightweight, thin-wall aircraft hook-up wires complying with rigorous aerospace specifications, withstanding severe mechanical vibration and extreme thermal ranges.
Automotive Engine Bay & Sensor Wiring Thin-wall signal and power cables for EV and ICE engine compartments demanding solder-iron resistance and long-term thermal aging protection.
High-End Industrial & Server Internal Interconnects High-density electronic internal wiring that avoids insulation melt deformation during automated mass soldering operations.
Logistics & Safety Protocols
Packaging, Storage & Safe Handling Guidelines

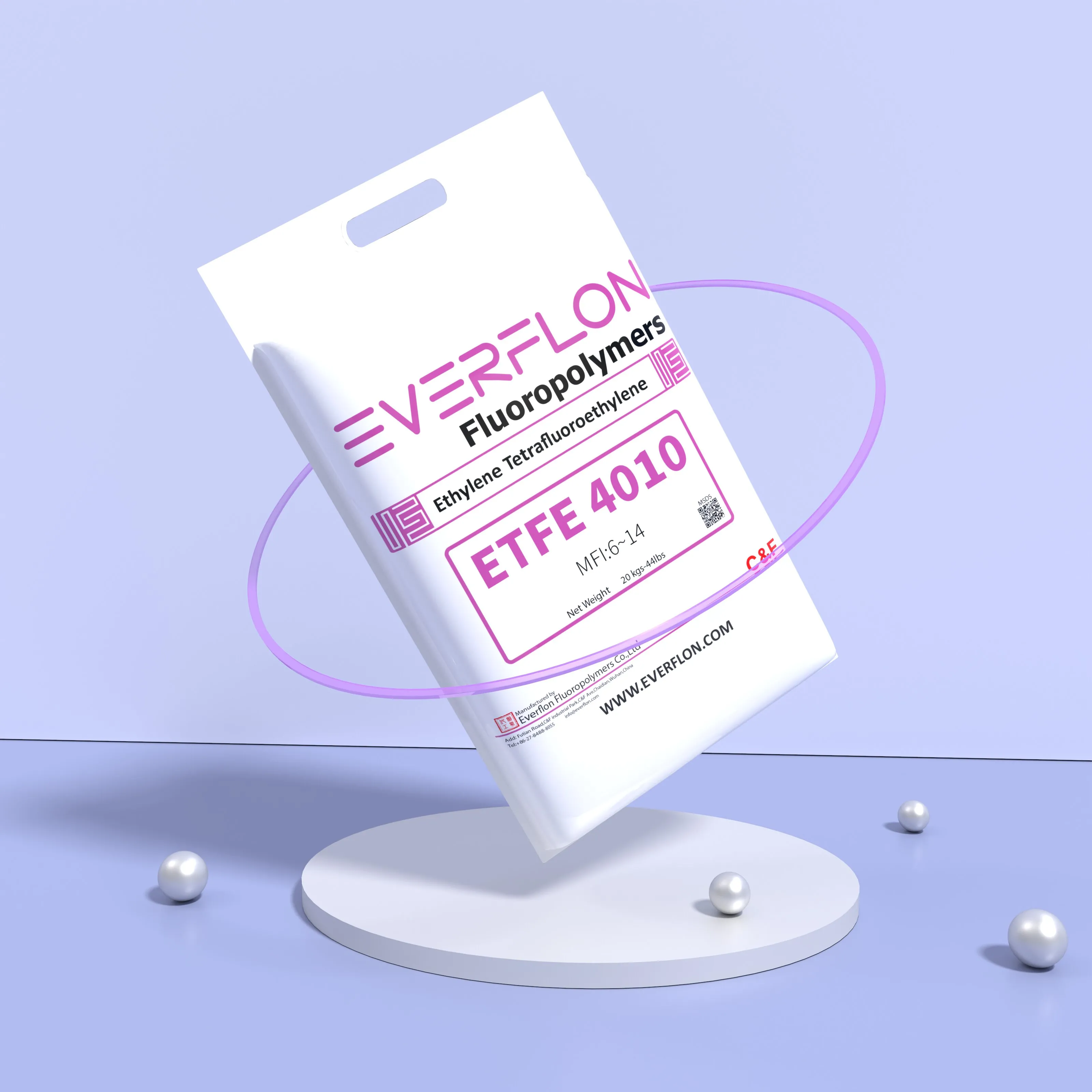

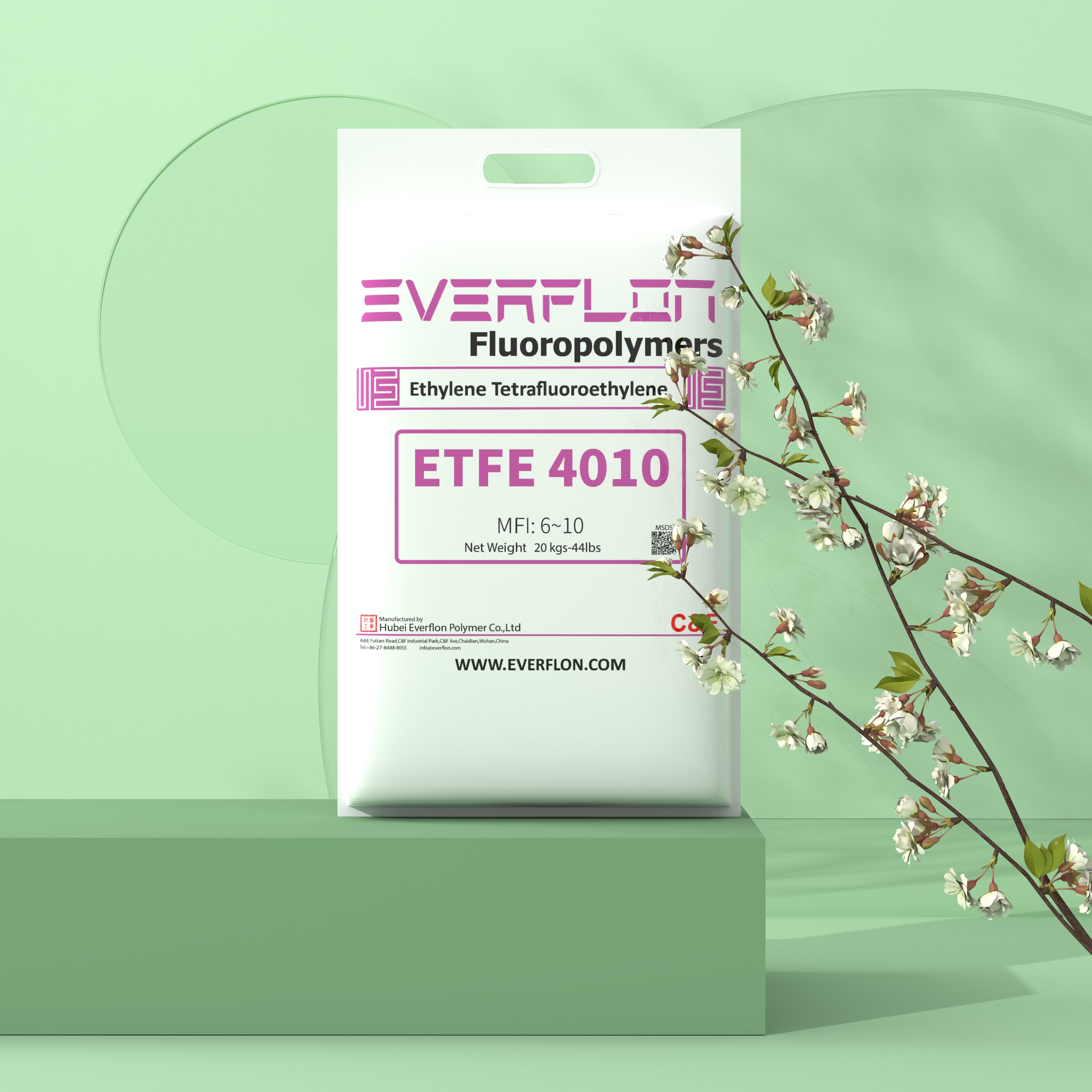

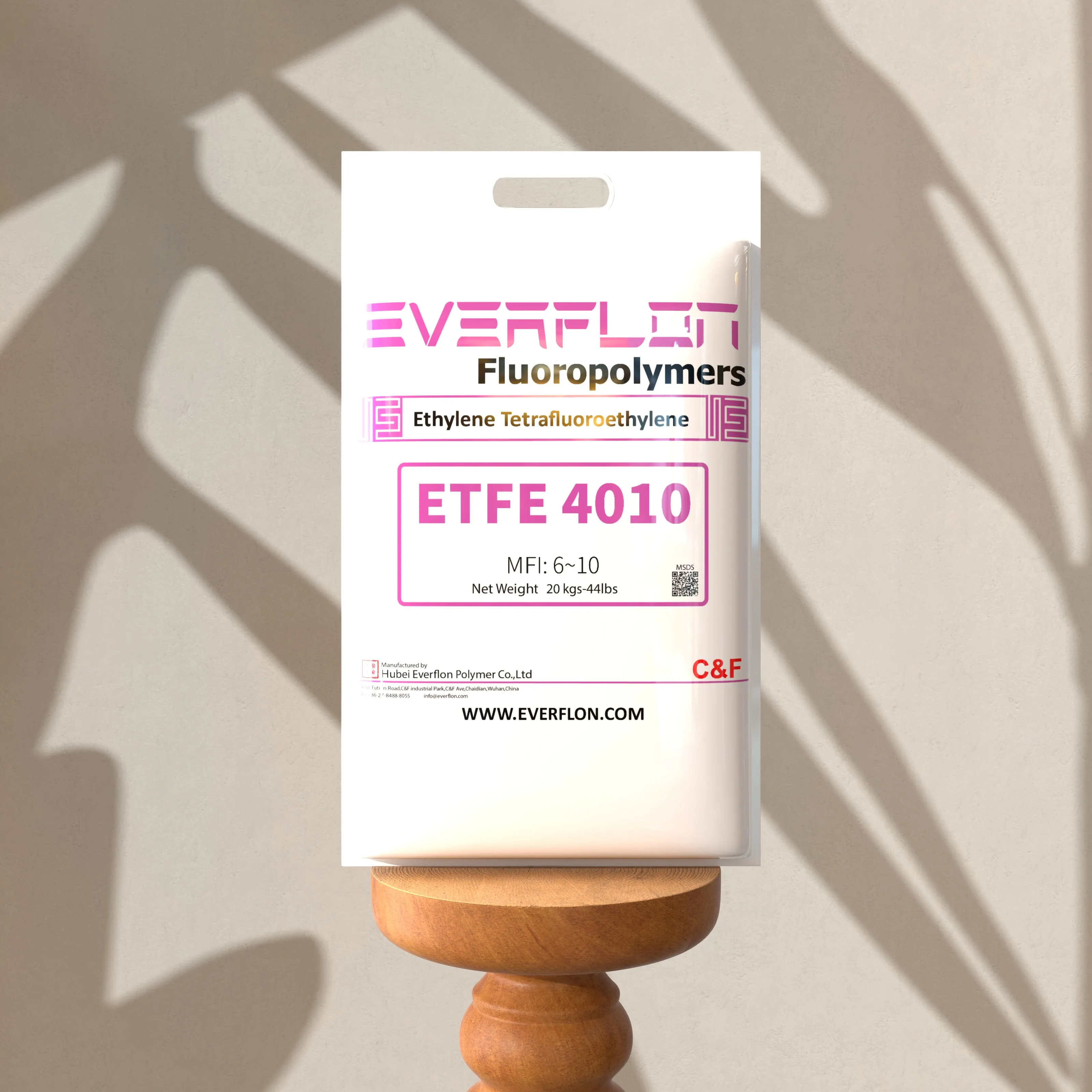

Standard Packaging
Supplied as uniform, dust-free cross-linkable ETFE pellets optimized for wire extrusion feeding.
25-kg / 45.4-kg Heavy-Duty Drums (Metric)
Hermetically sealed with a moisture-barrier polyethylene inner liner.
Storage & Pre-Drying
Resin properties remain stable under ambient dry storage. Protect containers from airborne contamination and moisture condensation.
Drying: 100°C to 120°C for 3 to 4 Hours
Recommended prior to high-speed extrusion to ensure flawless insulation concentricity.
Safety Precautions & Ventilation
Process only in well-ventilated areas with Local Exhaust Ventilation (LEV) to evacuate thermal processing fumes.
Avoid Tobacco Contamination
Prevent polymer fume fever by keeping tobacco free from resin dust. Consult the Safety Data Sheet (SDS).
