ETFE Color Concentrate
Formulated with 100% virgin Ethylene Tetrafluoroethylene (ETFE) carrier resins and high-shear inorganic pigments. Engineered for aerospace airframe wire (AS22759/16), nuclear instrumentation cabling, and downhole energy lines requiring exceptional radiation and abrasion resistance.
ETFE combines the chemical resistance of fluoropolymers with high mechanical tensile modulus, impact strength, and exceptional gamma radiation endurance up to 200 Mrad.
Engineered with sub-micron inorganic particles that do not compromise ETFE's high tensile modulus (1200 MPa) or tear propagation strength. Meets strict Mil-W-22759/16 airframe scraping standards.
Formulated with specialized radiation-stable colorants that resist crosslinking degradation, embrittlement, or discoloration in nuclear reactors and orbital satellites.
Thermal stabilizers prevent degradation, off-gassing, or screw deposit formation during thin-wall line speeds up to 1,000 ft/min.

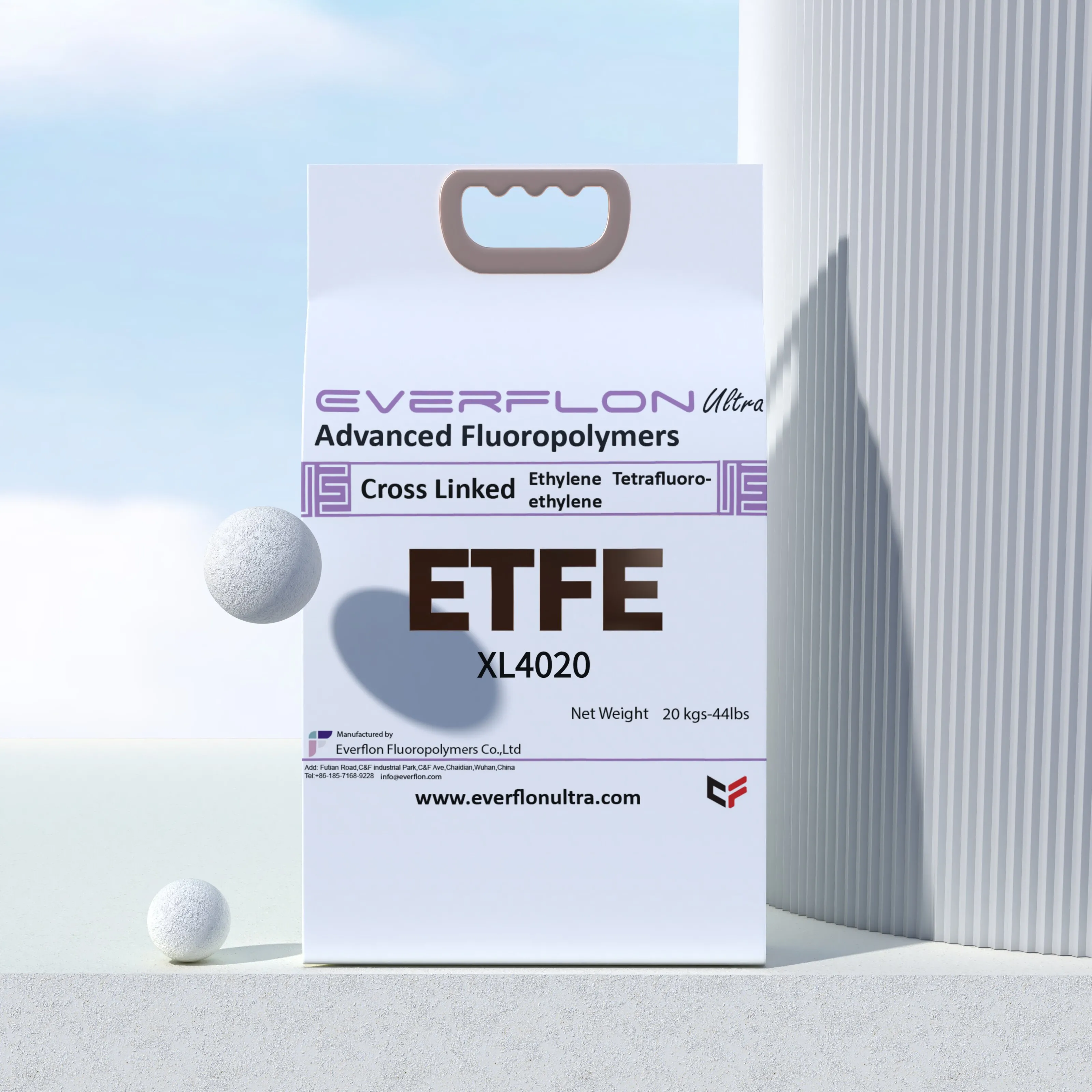

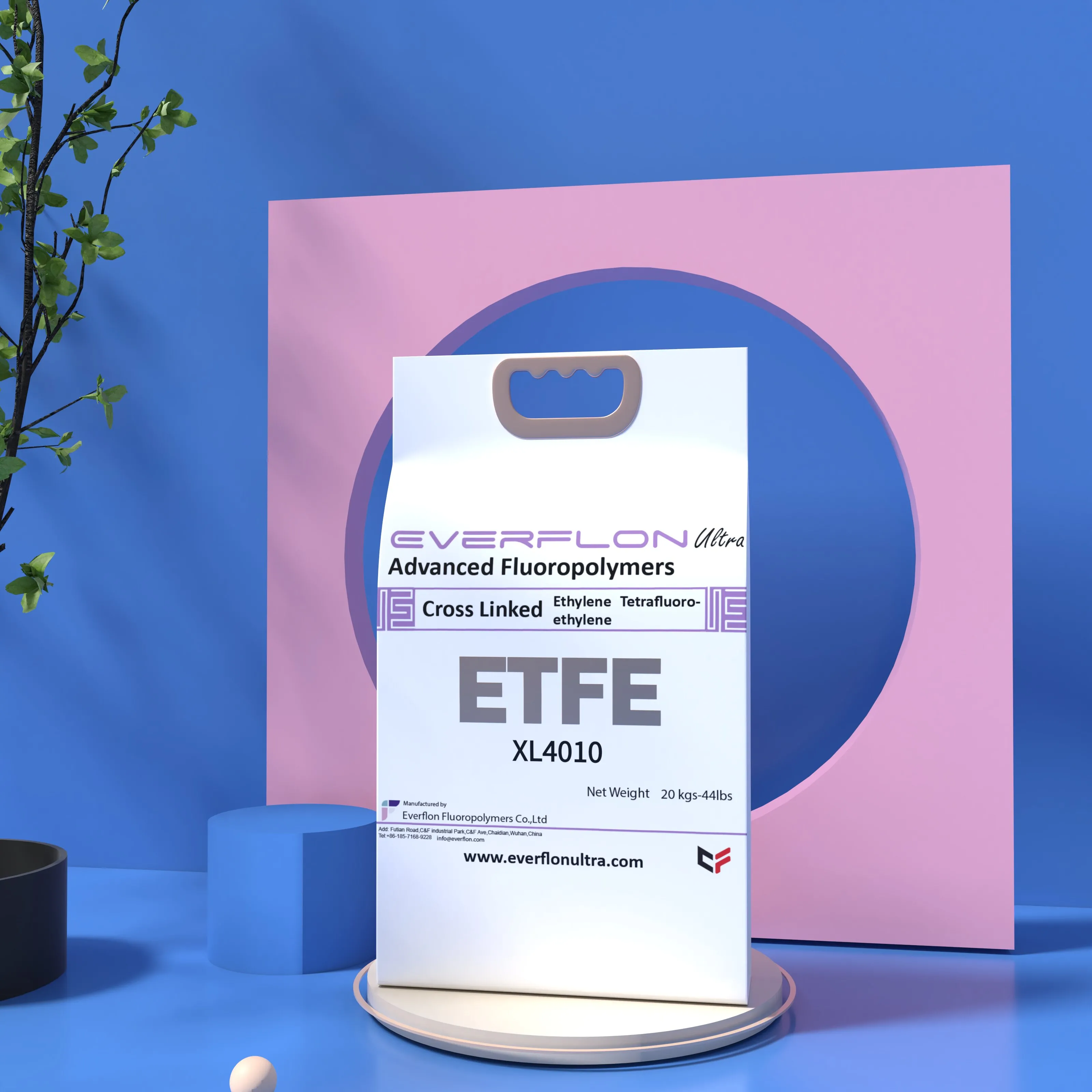

Carrier resins matched to standard ETFE extrusion and electron-beam crosslinkable (X-ETFE) grades (MFR 6 to 30 g/10min), providing immediate melt homogenization without spark test pinholes.
Fully verified against MIL-STD-104 Class 1 & 2 and EIA-359-A color limits, supporting custom Pantone and RAL spectrophotometer color matching for OEM harness branding.

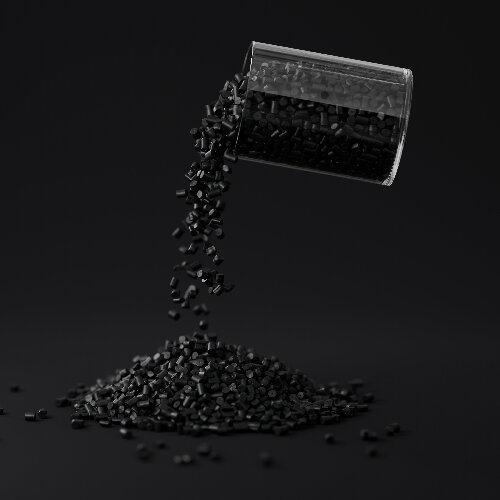

High-purity carbon black, weather resistant
Inorganic titanate brown, radiation stable

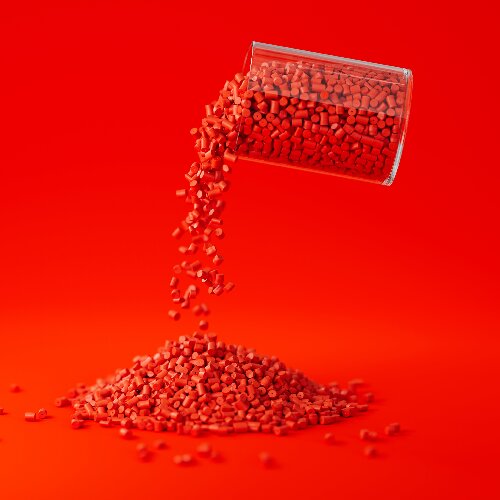

High-contrast neon red for circuit tracing

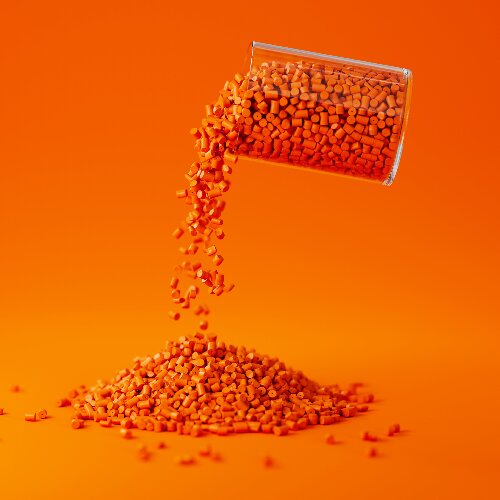

High-visibility aerospace & EV warning orange

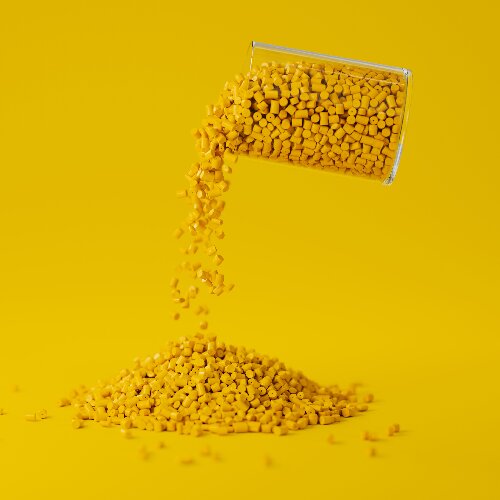

Heavy-metal-free calcined yellow
High-energy neon green, Cr-free formulation

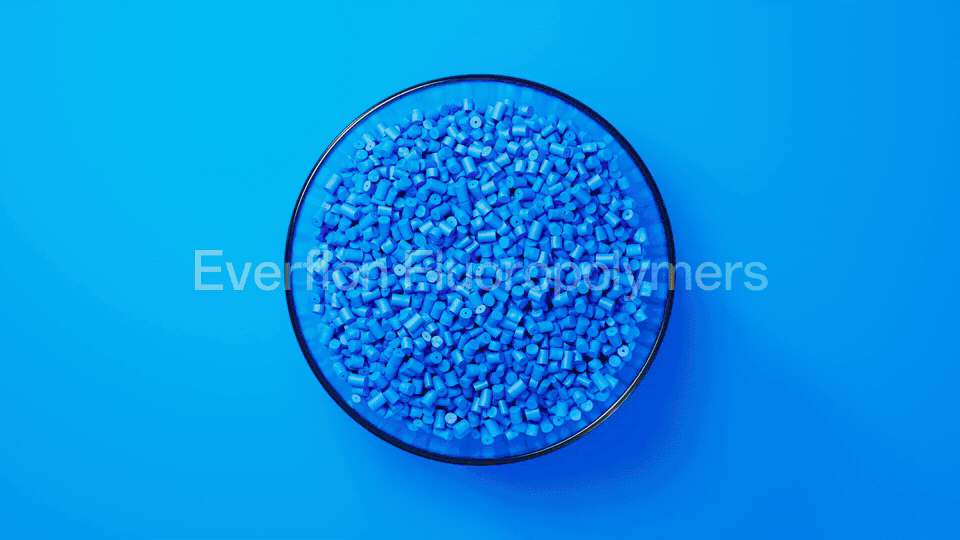

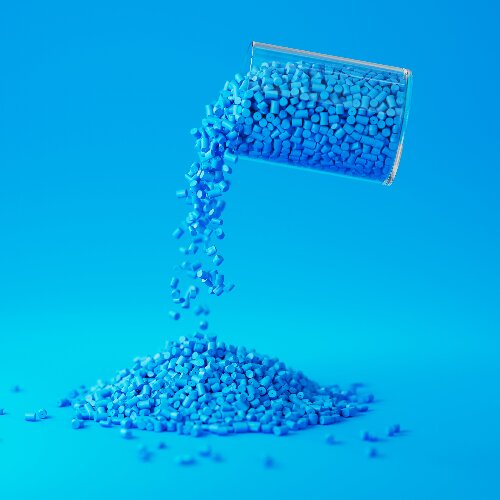

Cobalt aluminate blue, thermal stable
Consistent tint for paired avionics wires
Neutral jacket and conduit colorant

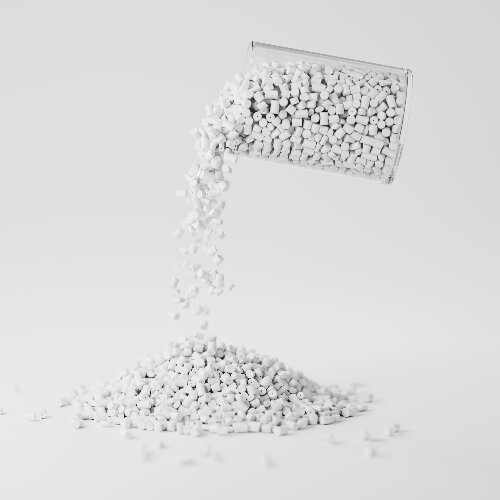

Sub-micron rutile TiO2, high opacity
Qualified for US and international aerospace airframe programs, nuclear reactor containment control cabling, downhole drilling telemetry, and transit rolling stock.
Provides thin-wall, lightweight dual-wall insulation for commercial and military aircraft. Exceptional resistance to tight-bend scraping, cut-through, and hydraulic fluids.
Endures high-dose gamma radiation (up to 200 Mrad) and Class 1E LOCA test conditions without physical embrittlement or insulation breakdown.
Resists extreme mechanical crush and oilfield chemicals (H2S, drilling mud, methane) in high-vibration measurement-while-drilling (MWD) tools.
Delivers low smoke toxicity, flame retardancy (UL 94 V-0), and superior impact resistance for locomotive undercar wiring and pantograph connections.
Our ETFE Color Masterbatch Portfolio
| Standard Color Matching | Available in MIL and RAL shades |
| Concentration Range | From 2% up to 10% to suit your product's wall thickness and color density needs. |
| Color Difference | ≤1.5 |
| Moisture Content | ≤0.03% |
| Particle Size | 1.3-2.1 mm |
| Dark Spot | ≤1% |
| Various MFR Options | Masterbatches are tuned to match a range of ETFE melt flow requirements for injection, extrusion or film processing. |
| Full Compliance | RoHS and REACH compliant and free of heavy metals as your requirement. |
| Features | Excellent chemical resistance: Retains ETFE's compatibility with aggressive media — solvents, acids, alkalis and other corrosives. Wide temperature capability: Continuous service roughly -200 °C to 150 °C; short-term exposure up to ~200 °C. High optical quality: High transparency (up to ~95% transmittance) and low haze options for optical films and glazing. Robust mechanics: High toughness and impact resistance suitable for structural and dynamic parts. Good processability: Formulated for reliable extrusion, blow film, injection molding and coating processes with minimal loss of base resin performance. Regulatory compliance: RoHS and REACH-friendly formulations available; heavy-metal-free options available. |
| Applications | Colored films, tubing, jacketing, architectural membranes, molded parts |
Color, meets extreme.
Explore the spec sheets. The future is ready.
Say Hello to Good Buy
Magichromatic.
Space Black
Tangy Blue
Citrusy Orange

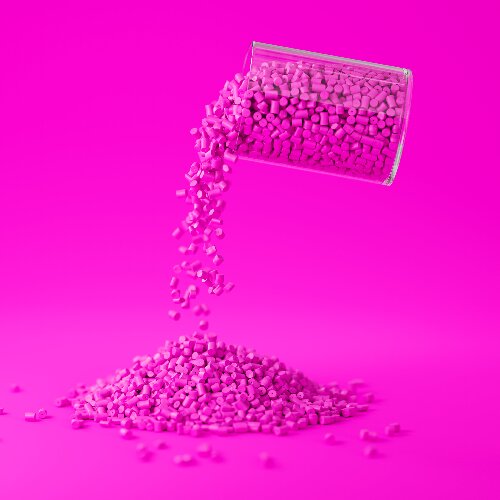

Neon Fuchsia
