ETFE 4020
Special-Purpose High-Flow Fluoroplastics
Everflon™ ETFE 4020.
Unmatched flow for intricate and thin-wall precision.
A melt-processable modified copolymer of ethylene and tetrafluoroethylene. Engineered with a superior high flow rate (MFR 20 g/10min) for high-speed wire coating, thin-walled tubing, and complex precision injection molding.
20 g/10min
High Melt Flow Rate (MFR)
150 °C / 302 °F
Continuous Service Temp
UL 94 V-0
Flame Rating
ASTM D3159
Type I, Grade 3 Standard
High-Speed Processing Advantage
Designed for high throughput and thin walls.
Everflon™ ETFE 4020 combines high flow rates with excellent mechanical toughness, enabling faster cycle times and intricate part geometries.
01
High Flow Rate (MFR 20)
Facilitates high-speed extrusion lines and complete cavity filling in slender, thin-walled, or multi-cavity injection molds with low injection pressure.
02
Broad Chemical Inertness
Fully inert to aggressive solvents, strong acids, and bases. Hydrolytically stable with extremely low moisture absorption (< 0.01%).
03
Thermal & Impact Durability
Maintains continuous thermal capability up to 150 °C (302 °F) with excellent Izod impact strength (No Break) preserved into cryogenic ranges.
04
High-Frequency Electrical Stability
High dielectric strength (65 kV/mm) and low dielectric constant (2.6–2.8) ensure minimal signal loss in electronic sockets and micro-connectors.
Technical Datasheet (TDS)
Everflon™ ETFE 4020 Property Data
Meets ASTM D3159 Type I, Grade 3
Processing & End Uses
Target Applications & Processing Guidelines
Optimized for rapid cycle times, high-rate wire coating, and delicate thin-wall molding.
■ High-Flow End Uses
High-Speed Wire & Cable Insulation: Thin-wall extruded insulation, multi-conductor jackets, and sleeving.
Precision Electrical Connectors: Multi-pin sockets, miniature switches, coil forms, and relay covers.
Thin-Walled Laboratory Ware: Micro-tubing, analytical valves, chemical containers, and precision fasteners.
Battery & Instrumentation Components: Thin-shell cases and complex internal structural parts requiring chemical inertness.
Complex Mechanical Hardware: Slender molded components, threaded fasteners, and intricate seal components.
■ Melt Processing Recommendations
Processing Techniques: High-speed melt extrusion, high-cavity injection, compression, transfer, and blow molding.
Barrel & Melt Temperatures: Heating zone up to approximately 340 °C (640 °F). Long L/D extruder barrels recommended.
Die & Flow Dynamics: Significant shear-thinning allows narrow-die pressure extrusion with minimal drawdown.
Tool Metallurgy: Corrosion-resistant alloys (Hastelloy, Inconel) recommended in contact with molten resin.
Machine Preference: Reciprocating screw injection molding machines for uniform melt and fast injection cycles.
Quality Assurance & Standards
Certified quality. Global compliance.
Every production lot of Everflon™ ETFE 4020 undergoes rigorous quality control to meet strict North American industrial benchmarks and safety requirements.
✓
Industry Certifications
ASTM D3159 Standard Compliance
Meets ASTM D3159 Type I, Grade 3 specifications for high-flow ETFE fluoropolymer resins.
UL 94 Flammability Standard
Certified V-0 self-extinguishing classification for critical electronics, aerospace, and defense applications.
Dielectric & Electrical Reliability
Verified high dielectric strength (65 kV/mm) and low loss factor under high-frequency operating conditions.
RoHS & REACH SVHC Compliant
Free of restricted heavy metals and hazardous substances, fully documented for US supply chain audits.
📦
Packaging & Handling

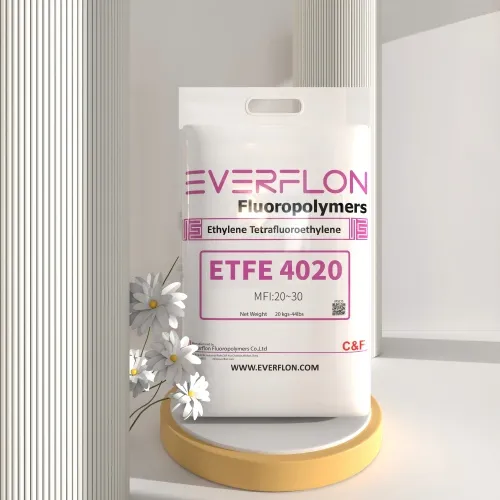

Standard Net Weight Package

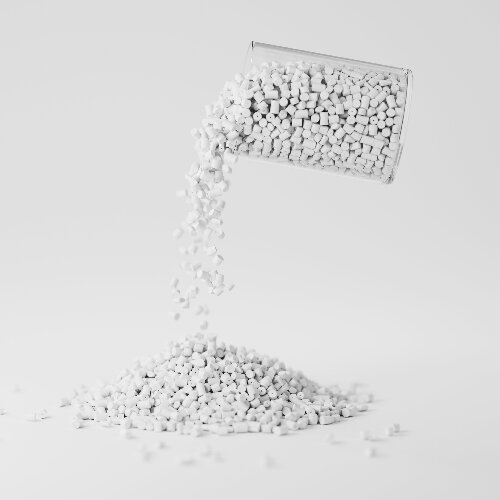

Packaged in translucent, 2.5-mm (0.1-in) uniform pellets within 20.3-kg (45-lb) moisture-sealed plastic bags.
Palletized Logistics (US Standard)
50 bags per standard wooden pallet (1,015 kg / 2,250 lbs net), shrink-wrapped with moisture-barrier covering for shipping.
Indefinite Storage Stability
Resin properties are unaffected by storage time. Store in clean, dry ambient conditions to avoid airborne contamination and water condensation.
Lot Traceability & Documentation
Unique barcode and lot tracking on each bag linked to complete Certificate of Analysis (CoA) and Safety Data Sheets (SDS).
Quality Assurance: All property data is verified per ASTM standard test methods. Full lot-specific CoA provided with each shipment.
ISO 9001:2015 REGISTERED QUALITY SYSTEM
Start with the material. Go beyond.
Everything you need to turn ideas into what’s next.
ETFE. Engineered Beyond Boundaries.
Significant Others

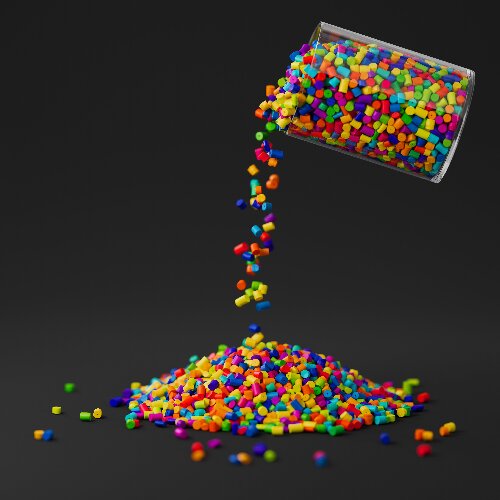

Everflon+™ ETFE Color Concentrate
