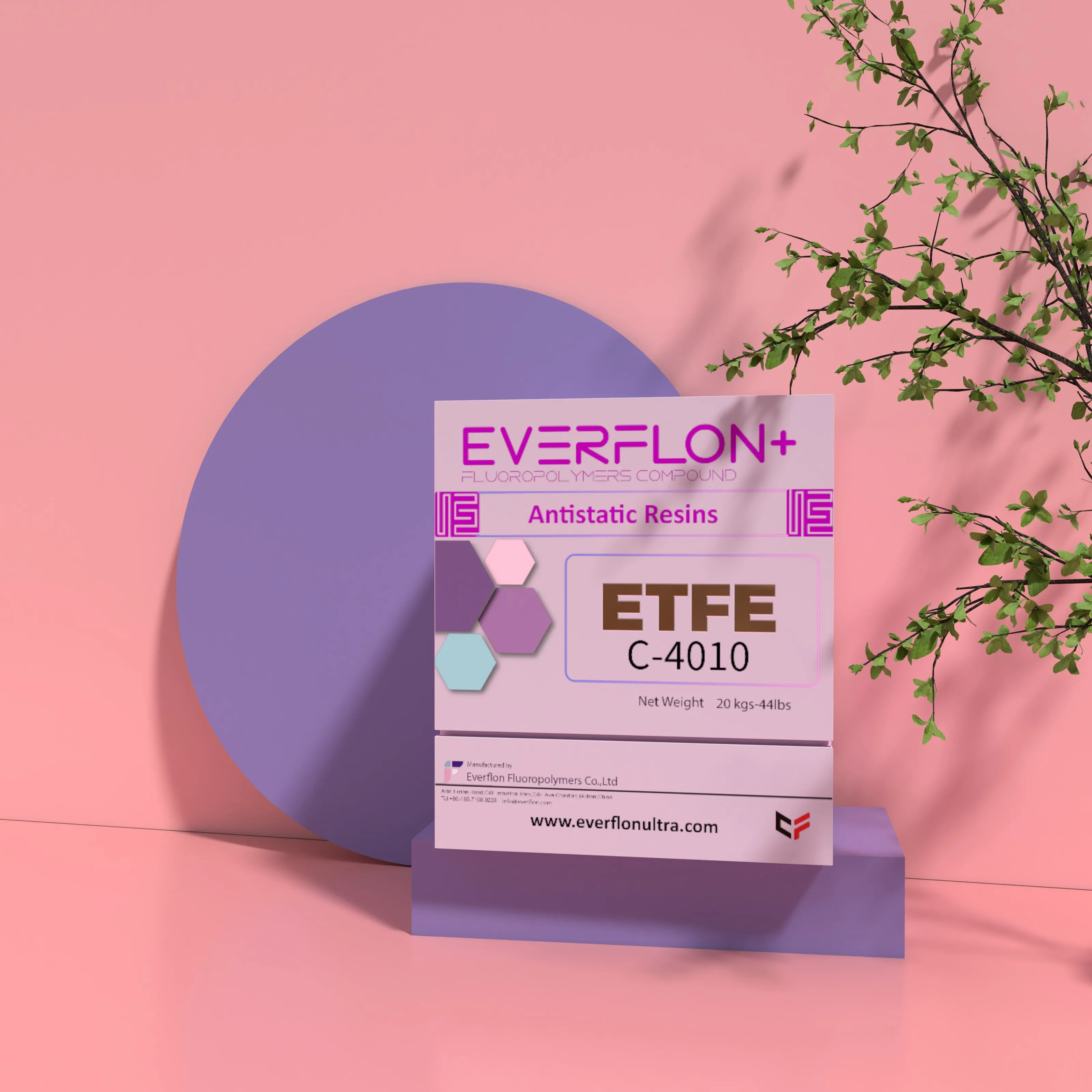

ETFE Conductive C4010
Get to know Everflon+™ ETFE C4010.
Conductive & Anti-Static Injection-Grade ETFE
Everflon+™ ETFE C4010.
Enhanced Melt Flow. Precision Injection Molding.
Engineered for complex injection-molded components, multi-cavity precision tools, and anti-static fuel system parts. Offering superior flowability for thin-walled parts while retaining exceptional chemical and mechanical robustness.
8.0–15.0 g/10min
MFR (297°C / 49N)
<10² Ω·cm
Volume Resistivity
150°C (302°F)
Continuous Service Rating
UL 94V-0
Flame Retardancy
High-Flow Injection Engineering
Optimized Rheology for Complex Injection Molding
Enhanced Melt Flow
Flawless Filling for Thin-Walled Parts
Designed specifically for injection molding where standard low-flow ETFE grades fall short. Everflon+™ ETFE C4010 delivers excellent melt fluidity, allowing seamless filling of intricate molds, narrow flow channels, and micro-components.
ESD Protection
Reliable Static Dissipation
Uniformly compounded with conductive carbon fillers to prevent hazardous static charge buildup, making it ideal for fuel system quick-connects, pump housings, and electronics enclosures.
Robust Durability
High Impact & Stress Crack Resistance
Retains the legendary mechanical strength, stress-crack resistance, and cut-through toughness characteristic of ETFE copolymers, ensuring long-term reliability under severe operating loads.
Harsh Environment Defense
Chemical Inertness & Thermal Stability
Resistant to aggressive automotive fuels, strong acids, bases, and organic solvents. Operates reliably up to 150°C continuous service temperature with exceptional weatherability.
Technical Specifications
Typical Property Data
Standard ASTM / ISO laboratory test values for Everflon+™ ETFE C4010.
Fabrication & Processing Guidelines
Injection Molding Parameters & Key Applications
01. Injection Molding Parameters
Optimized Melt Temperatures
Designed for injection molding with barrel temperatures ranging from 300°C to 340°C and mold temperatures maintained at 100°C to 150°C to ensure proper crystallinity and part stability.
02. Pre-Drying & Moisture Control
Surface Finish Integrity
Pre-drying at 120°C for 3 to 4 hours is strongly recommended prior to molding to eliminate surface moisture, preventing silver streaks and internal voids in precision injection parts.
03. Tooling Metallurgy
Corrosion-Resistant Steel
Mold cavities and injection screws should be constructed from corrosion-resistant high-grade stainless steel or nickel-based alloys to prevent tool wear and degradation from molten fluoropolymer contact.
Target Applications & Industry Solutions
Automotive Fuel System Quick-Connects Injection molded connectors, valves, and fittings for automotive fuel lines requiring static dissipation and tight dimensional tolerances.
Anti-Static Chemical Pump & Valve Housings Molded components for aggressive chemical handling equipment where grounding prevents electrostatic discharge hazards.
Precision Industrial Electrical Enclosures Specialized enclosures and connectors requiring flame retardancy (UL 94V-0) and electrostatic discharge mitigation.
Logistics & Safety Protocols
Packaging, Storage & Safe Handling Guidelines
Standard Packaging
Supplied as uniform, dust-free carbon-filled conductive pellets optimized for injection feeding.
25-kg / 45.4-kg Heavy-Duty Drums
Hermetically sealed with a moisture-barrier polyethylene inner liner.
Storage & Pre-Drying
Resin properties remain stable under ambient storage. Protect containers from airborne contamination and water condensation.
Drying: 120°C for 3 to 4 Hours
Recommended prior to injection molding to ensure pristine surface appearance.
Safety Precautions & Ventilation
Process only in well-ventilated areas with Local Exhaust Ventilation (LEV) to evacuate thermal processing fumes.
Avoid Tobacco Contamination
Prevent polymer fume fever by keeping tobacco free from resin dust. Consult the Safety Data Sheet (SDS).
Control the Charge. Keep What Matters Moving.
Conductive fluoropolymers designed for controlled performance.
Unlock the world of ETFE.
Significant Others

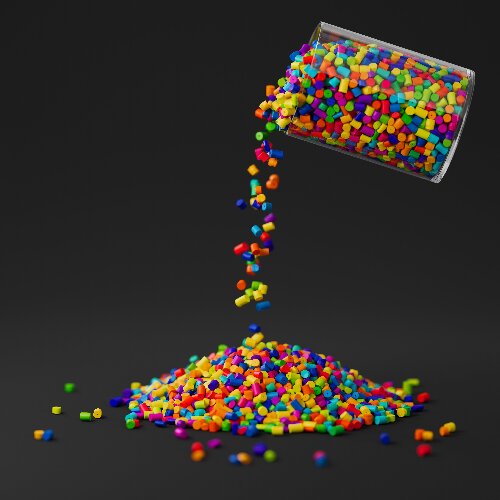

Everflon+ ETFE Color Concentrate
