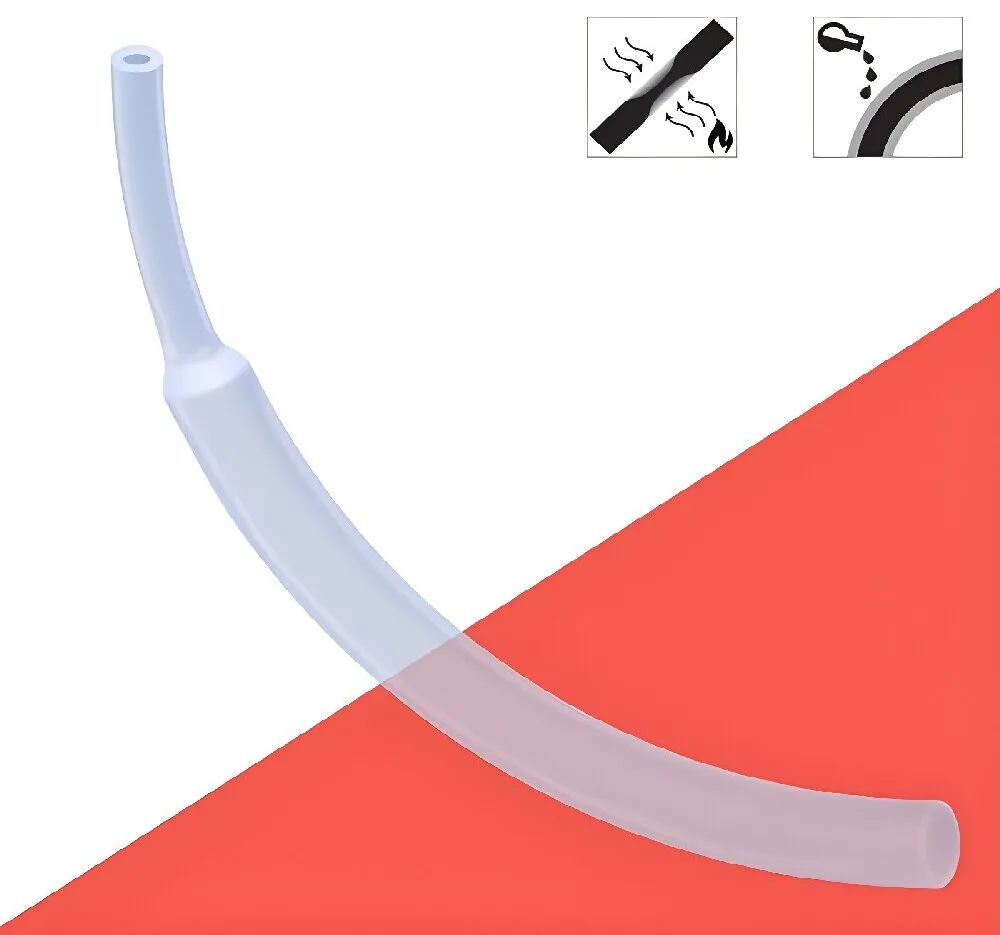

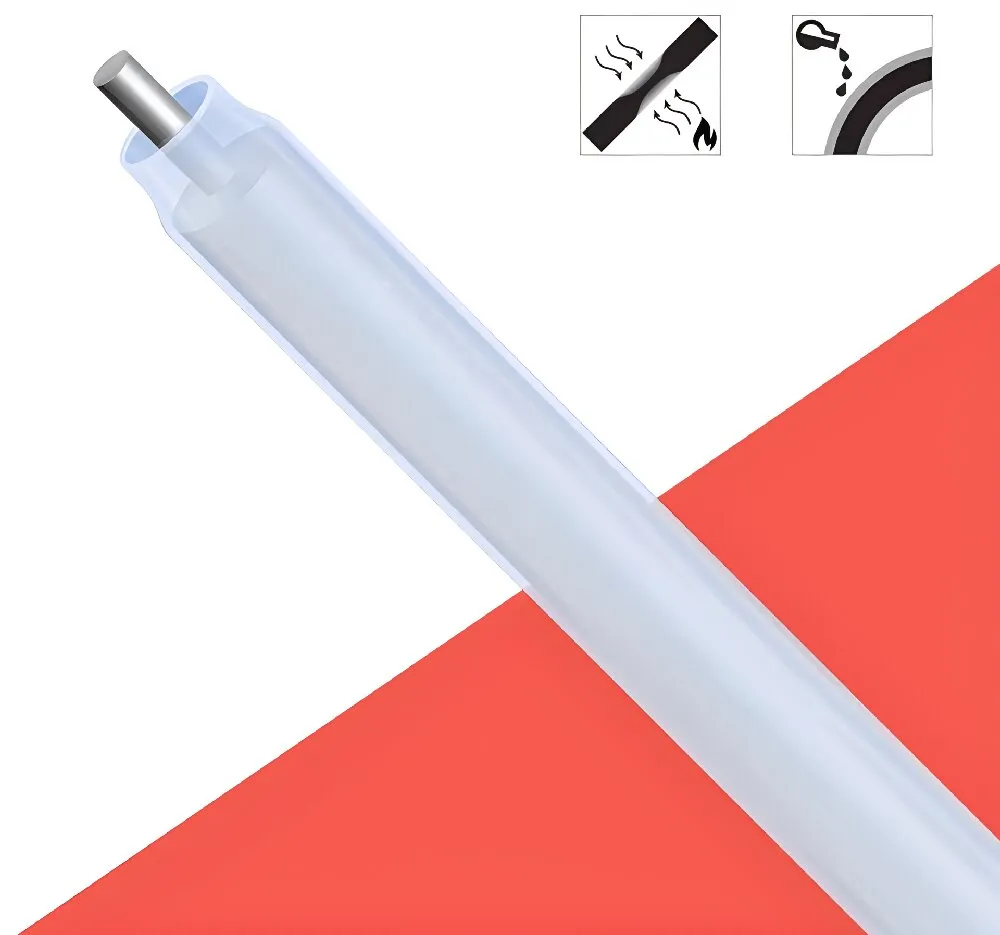

Techyours™ PTFE Tubing

Get to Know Techyours™ PTFE Tubing

The unique properties of Techyours™ PTFE tubing cover an impressive range. These include high use temperature compared to other polymers, almost universal chemical resistance, excellent electrical properties at high voltage and high signal frequencies, non-stick characteristics, usefulness under extreme low temperatures (cryogenic conditions), and UV resistance. However, mechanical strength and wear resistance are not criteria for which PTFE is recommended, which is one reason for the development of FEP tubing, PFA tubing and ETFE tubing.

Techyours™ PTFE tubing's high viscosity in the gel state (it does not truly melt) prevents it from being processed conventionally in extruders or injection molding. Techyours™ PTFE tubing is therefore dry molded or extruded in hydraulic extruders with (paste extrusion) or without (ram extrusion) lubricants. Paste extrusion of PTFE yields flexible tubing. However, it occurs in a batch process and thus long continuous lengths are limited to the batch size, unlike the melt-processible fluoropolymers FEP, PFA and ETFE.

Techyours™ PTFE Tubing Offers:

● Non-stick properties
● Temperature resistance up to 260º C (500º F)
● Aging resistance
● Can be steam or chemically sterilized in-line
● Superior chemical resistivity and low coefficient of friction

Techyours™ PTFE Tubing Applications:

Aerospace &Transportation Technology, Electronics, Components & Insulators, Chemical & Pharmaceutical Manufacturing, Food Processing, Environmental Sciences, Air Sampling, Fluid Transfer Devices and Water Processing Systems.

Techyours™ PTFE Tubing Offers

● Non-stick properties

● Temperature resistance up to 260º C (500º F)

● Aging resistance

● Can be steam or chemically sterilized in-line

● Superior chemical resistivity and low coefficient of friction

SIZE, ID X OD	INSIDE DIAMETER-ID	TOLERANCE, +/-	WALL THICKNESS	TOLERANCE, +/-	OUTSIDE DIAMETER-OD
2 x 3	2.00	0.10	0.50	0.10	3.00
2 x 4	2.00	0.10	1.00	0.10	4.00
3 x 4	3.00	0.15	0.50	0.20	4.00
3 x 5	3.00	0.15	1.00	0.20	5.00
4 x 5	4.00	0.15	0.50	0.10	5.00
4 x 6	4.00	0.15	1.00	0.20	6.00
5 x 6	5.00	0.20	0.50	0.10	6.00
5 x 7	5.00	0.20	1.00	0.20	7.00
6 x 7	6.00	0.20	0.50	0.10	7.00
6 x 8	6.00	0.20	1.00	0.20	8.00
7 x 8	7.00	0.20	0.50	0.10	8.00
7 x 9	7.00	0.20	1.00	0.20	9.00
8 x 9	8.00	0.20	0.50	0.10	9.00
8 x 10	8.00	0.20	1.00	0.20	10.00
10 x 12	10.00	0.30	1.00	0.20	12.00
12 x 14	12.00	0.30	1.00	0.20	14.00
14 x 16	14.00	0.40	1.00	0.20	16.00
16 x 18	16.00	0.40	1.00	0.20	18.00
18 x 20	18.00	0.50	1.00	0.20	20.00
20 x 22	20.00	0.50	1.00	0.20	22.00

SIZE, FRACTIONA	INSIDE DIAMETER-ID	WALL THICKNESS	TOLERANCE, +/-	OUTSIDE DIAMETER-OD	TOLERANCE, +/-
1/32	0.031	0.016	0.003	0.063	0.004
1/16	0.063	0.031	0.005	0.125	0.005
1/16	0.063	0.062	0.010	0.188	0.008
1/8	0.125	0.031	0.005	0.188	0.008
1/8	0.125	0.062	0.010	0.250	0.008
5/32	0.156	0.047	0.007	0.250	0.008
3/16	0.188	0.031	0.005	0.250	0.008
1/4	0.250	0.031	0.005	0.313	0.010
1/4	0.250	0.062	0.010	0.375	0.010
5/16	0.312	0.031	0.005	0.375	0.010
3/8	0.375	0.031	0.005	0.438	0.010
3/8	0.375	0.062	0.010	0.500	0.010
7/16	0.438	0.031	0.005	0.500	0.010
1/2	0.500	0.031	0.005	0.563	0.010
1/2	0.500	0.062	0.010	0.625	0.010
9/16	0.562	0.031	0.005	0.625	0.010
5/8	0.625	0.031	0.007	0.688	0.020
5/8	0.625	0.062	0.010	0.750	0.020
11/16	0.688	0.031	0.007	0.750	0.020
3/4	0.750	0.040	0.007	0.830	0.020
7/8	0.875	0.045	0.007	0.965	0.020
7/8	0.875	0.062	0.010	1.000	0.020
1	1.000	0.045	0.007	1.090	0.020
1-1/4	1.250	0.045	0.007	1.340	0.020
1-1/2	1.500	0.050	0.008	1.600	0.020

INSIDE DIAMETER-ID	TOLERANCE, +/-	WALL THICKNESS	TOLERANCE, +/-	OUTSIDE DIAMETER-OD
0.30	0.05	0.23	0.05	0.76
0.40	0.05	0.23	0.05	0.86
0.50	0.05	0.23	0.05	0.96
0.50	0.05	0.30	0.07	1.10
0.70	0.05	0.25	0.05	1.20
0.90	0.05	0.30	0.07	1.50
1.00	0.05	0.30	0.07	1.60
1.10	0.10	0.30	0.07	1.70
1.20	0.10	0.30	0.07	1.80
1.40	0.10	0.30	0.07	2.00
1.50	0.10	0.30	0.07	2.10
1.70	0.10	0.30	0.07	2.30
1.90	0.10	0.30	0.07	2.50
2.20	0.15	0.30	0.07	2.80
2.40	0.15	0.30	0.07	3.00
2.70	0.15	0.30	0.07	3.30
2.90	0.15	0.30	0.07	3.50
3.00	0.15	0.30	0.07	3.60
3.20	0.15	0.30	0.07	3.80
3.40	0.15	0.30	0.07	4.00

SIZE	INSIDE DIAMETER-ID		LIGHT WALL		THIN WALL		STD.WALL		HEAVY WALL
	MIN	MAX	NOM	TOL +/-	NOM.	TOL +/-	NOM.	TOL +/-	NOM.	TOL +/-
32	0.007	0.011	0.006	0.002	0.009	0.002
30	0.010	0.015	0.006	0.002	0.009	0.002	0.009	0.002
28	0.013	0.018	0.006	0.002	0.009	0.002	0.009	0.002
26	0.016	0.021	0.006	0.002	0.009	0.002	0.009	0.002
24	0.020	0.026	0.006	0.002	0.010	0.003	0.012	0.003	0.016	0.003
23	0.023	0.029	0.006	0.002	0.010	0.003	0.012	0.003	0.016	0.003
22	0.025	0.032	0.006	0.002	0.010	0.003	0.012	0.003	0.016	0.003
21	0.029	0.035	0.006	0.002	0.010	0.003	0.012	0.003	0.018	0.003
20	0.032	0.040	0.006	0.002	0.012	0.003	0.016	0.003	0.018	0.003
19	0.036	0.044	0.006	0.002	0.012	0.003	0.016	0.003	0.020	0.004
18	0.040	0.049	0.006	0.002	0.012	0.003	0.016	0.003	0.020	0.004
17	0.045	0.054	0.006	0.002	0.012	0.003	0.016	0.003	0.020	0.004
16	0.051	0.061	0.006	0.002	0.012	0.003	0.016	0.003	0.020	0.004
15	0.057	0.067	0.006	0.002	0.012	0.003	0.016	0.003	0.020	0.004
14	0.064	0.074	0.008	0.002	0.012	0.003	0.016	0.003	0.020	0.004
13	0.072	0.082	0.008	0.002	0.012	0.003	0.016	0.003	0.020	0.004
12	0.081	0.091	0.008	0.002	0.012	0.003	0.016	0.003	0.020	0.004
11	0.091	0.101	0.008	0.002	0.012	0.003	0.016	0.003	0.020	0.004
10	0.102	0.112	0.008	0.002	0.012	0.003	0.016	0.003	0.025	0.005
9	0.114	0.124	0.008	0.002	0.015	0.003	0.020	0.004	0.025	0.005
8	0.129	0.141	0.008	0.002	0.015	0.003	0.020	0.004	0.030	0.005
7	0.144	0.158	0.008	0.002	0.015	0.003	0.020	0.004	0.030	0.005
6	0.162	0.178	0.010	0.003	0.015	0.003	0.020	0.004	0.030	0.005
5	0.182	0.198	0.010	0.003	0.015	0.003	0.020	0.004	0.032	0.005
4	0.204	0.224	0.010	0.003	0.015	0.003	0.020	0.004
3	0.229	0.249	0.010	0.003	0.015	0.003	0.020	0.004
2	0.258	0.278	0.010	0.003	0.015	0.003	0.020	0.004
1	0.289	0.311	0.010	0.003	0.015	0.003	0.020	0.004
0	0.325	0.347	0.012	0.003	0.015	0.003	0.020	0.004
