Fit that follows form.
Specify expanded diameter, recovered diameter and wall thickness around your component geometry.

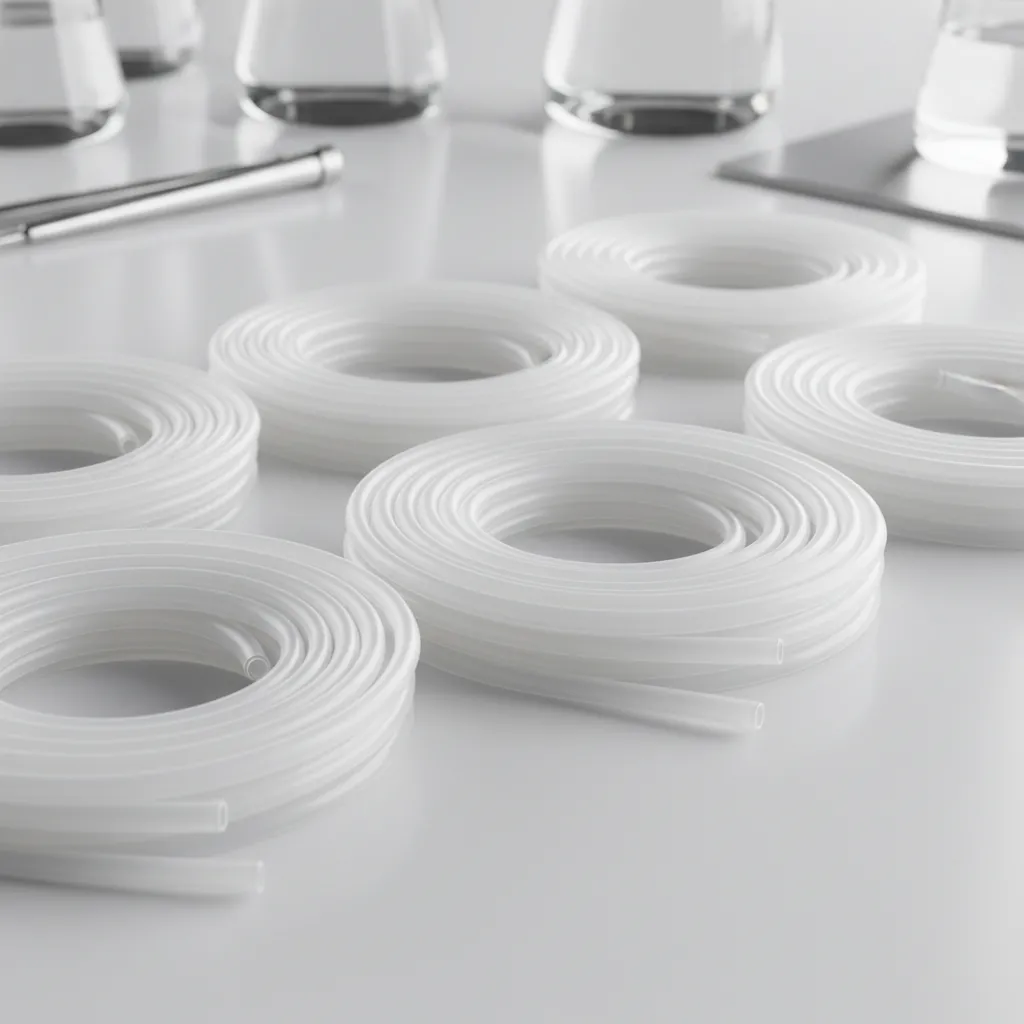

Heat Shrink Tubing

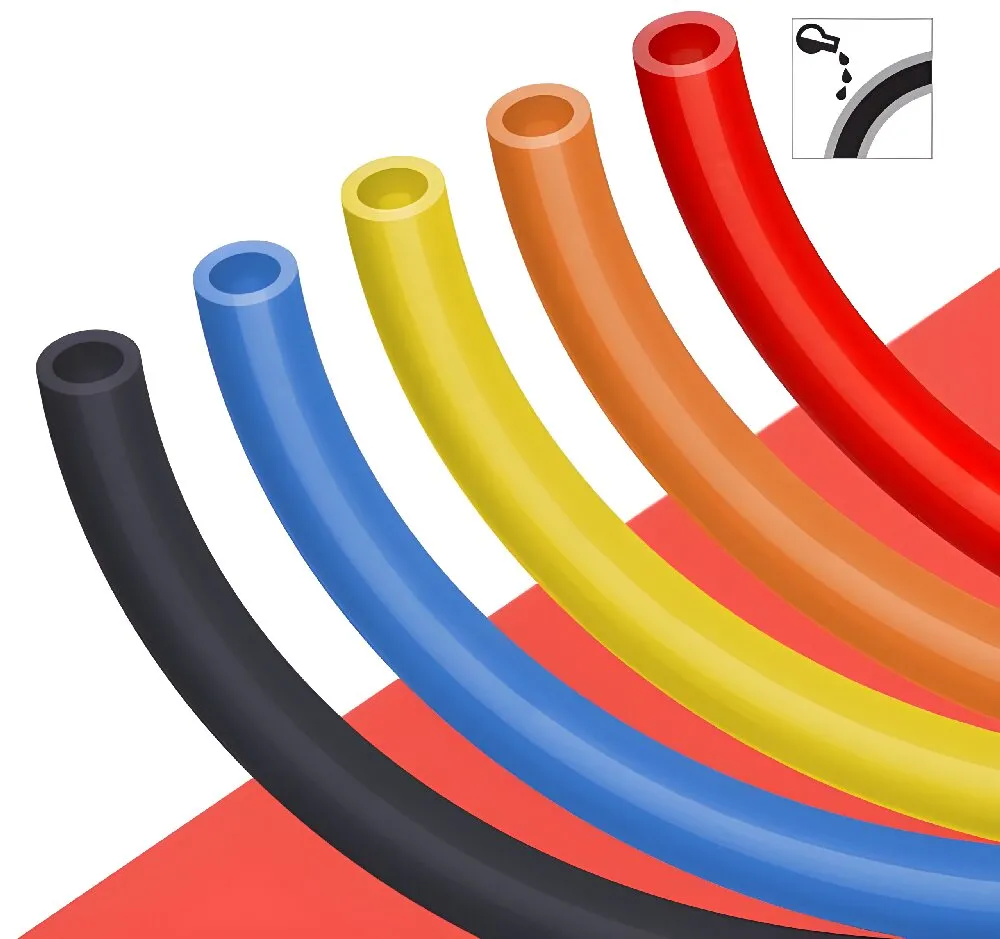

Fluoropolymer heat shrink tubing
A closer fit.
A smarter layer.
Techyours+™ heat shrink tubing brings a tailored protective layer to demanding components. Explore PTFE, FEP, PFA and ETFE options for your next design.
PTFEFEPPFAETFE
Protection starts with the right material, the right dimensions and a controlled recovery process.

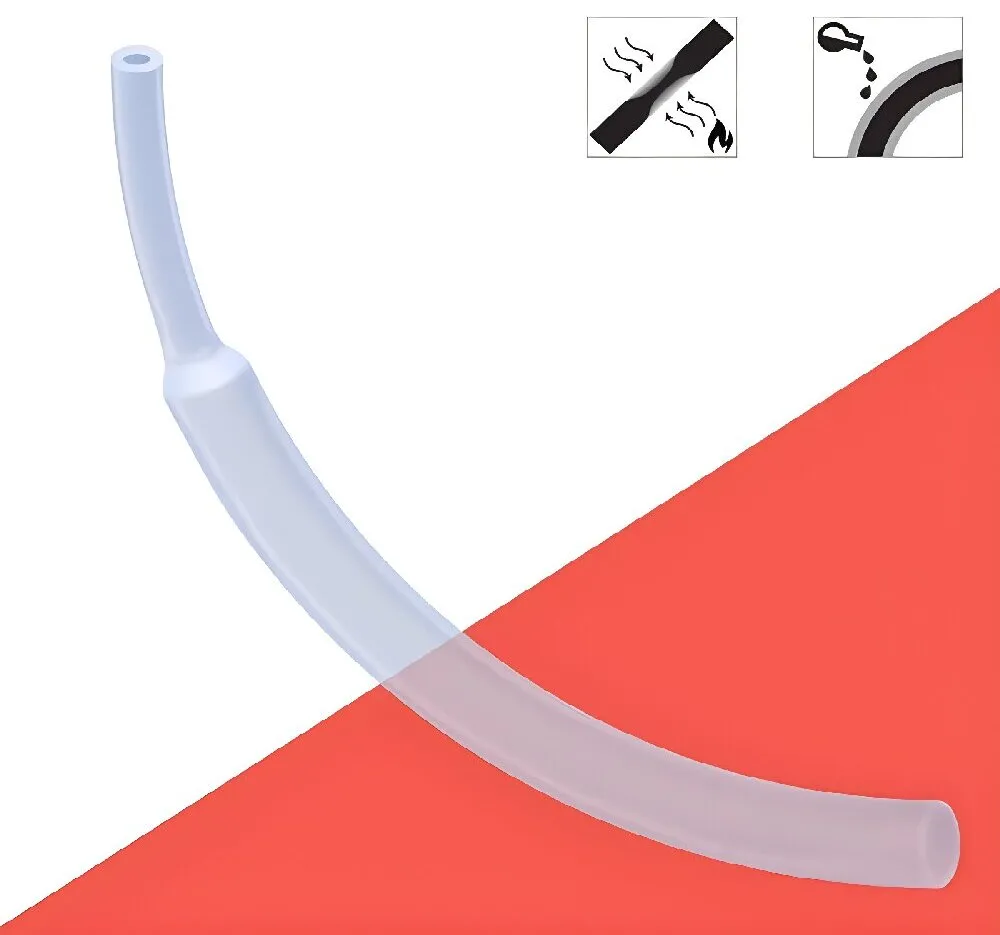

FLUOROPOLYMER HEAT SHRINK / CONCEPT VISUAL
Designed around your component
Less bulk.
More possibility.
A surface that works.
Evaluate fluoropolymer surfaces for release, low friction and resistance to the chemicals in your process.
Protection with purpose.
Consider sleeves for insulation, surface protection or manufacturing support, according to the selected product specification.

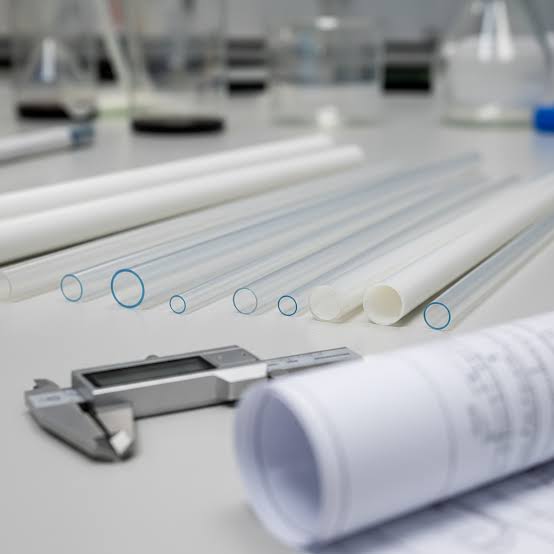

Precision starts early.
Account for longitudinal change, end coverage and substrate heat tolerance before choosing a shrink ratio.

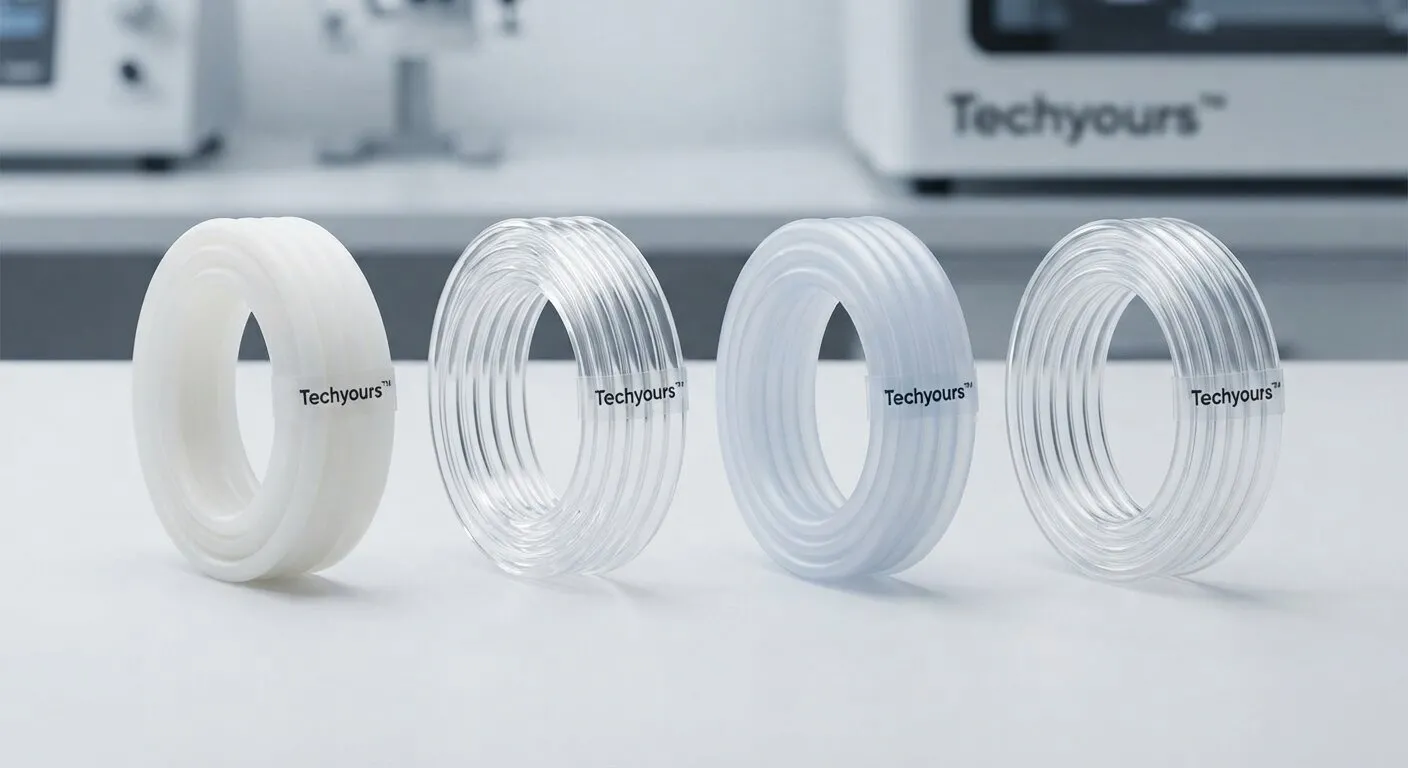

Four material directions
Find your fit.

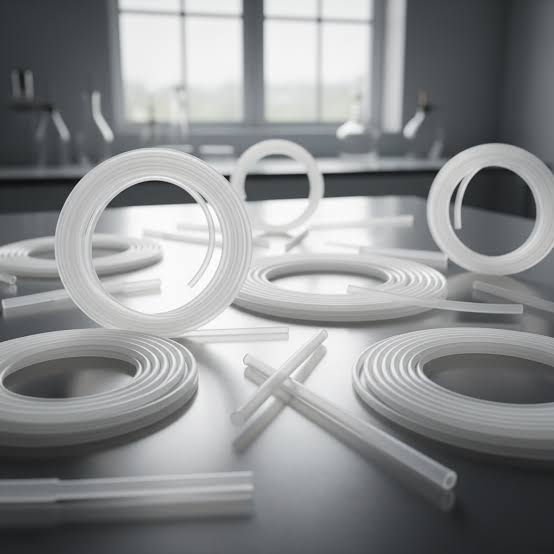

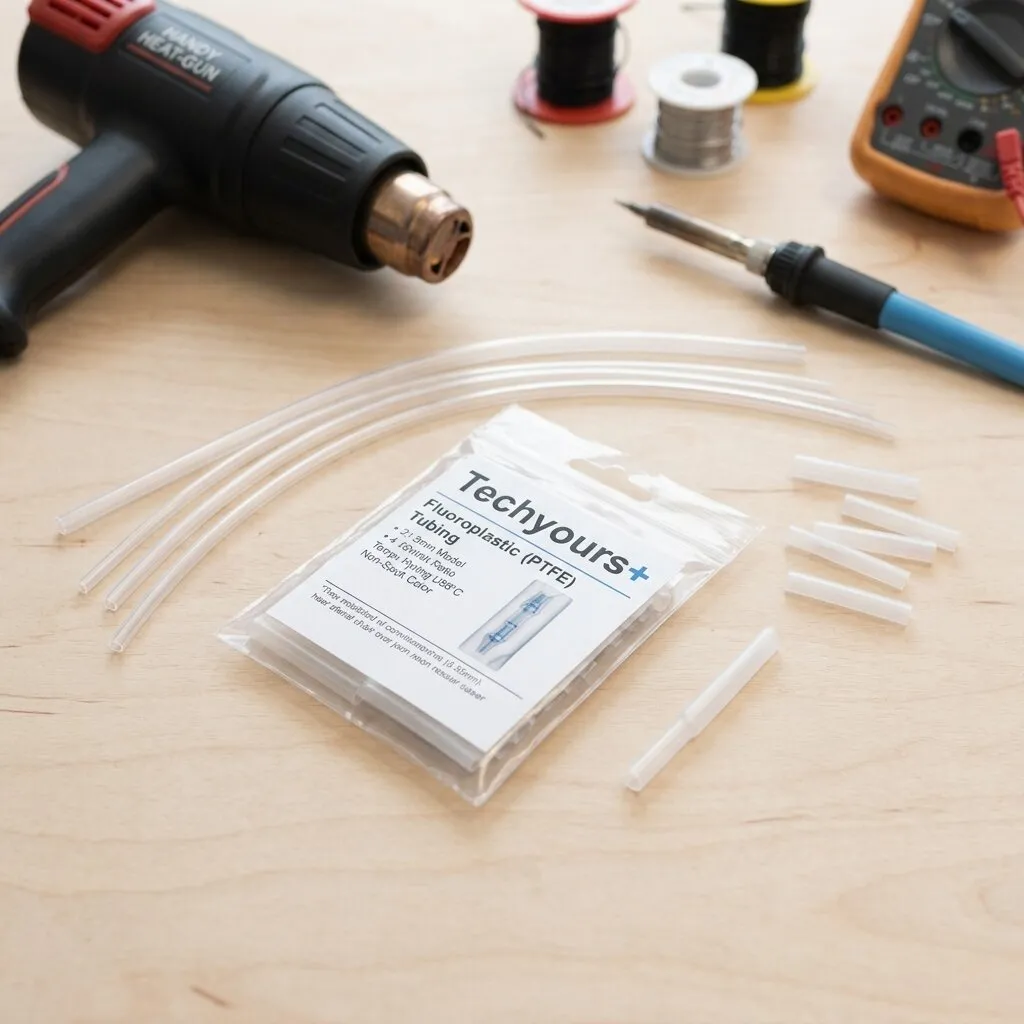

For demanding thermal designs.
Consider PTFE when low friction and thermal performance guide the design. Check whether the component can tolerate the required recovery cycle.

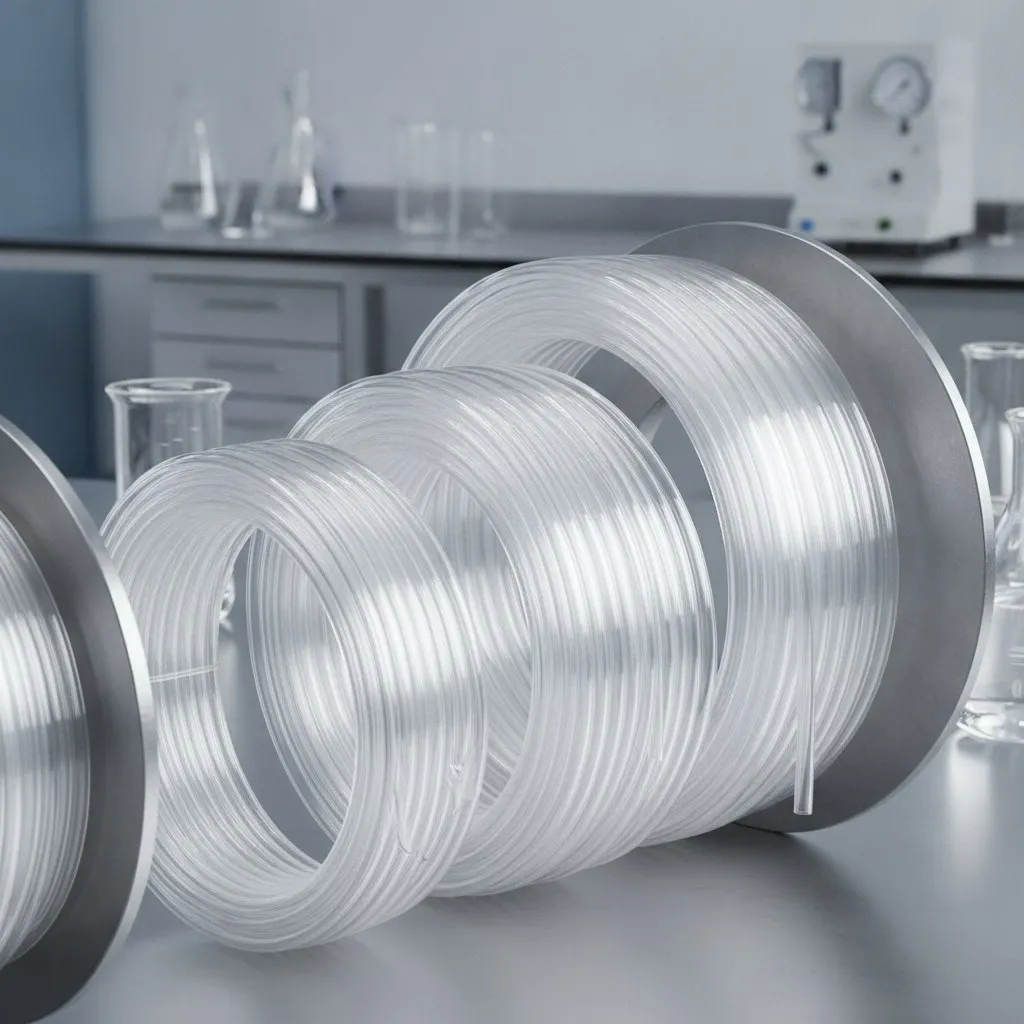

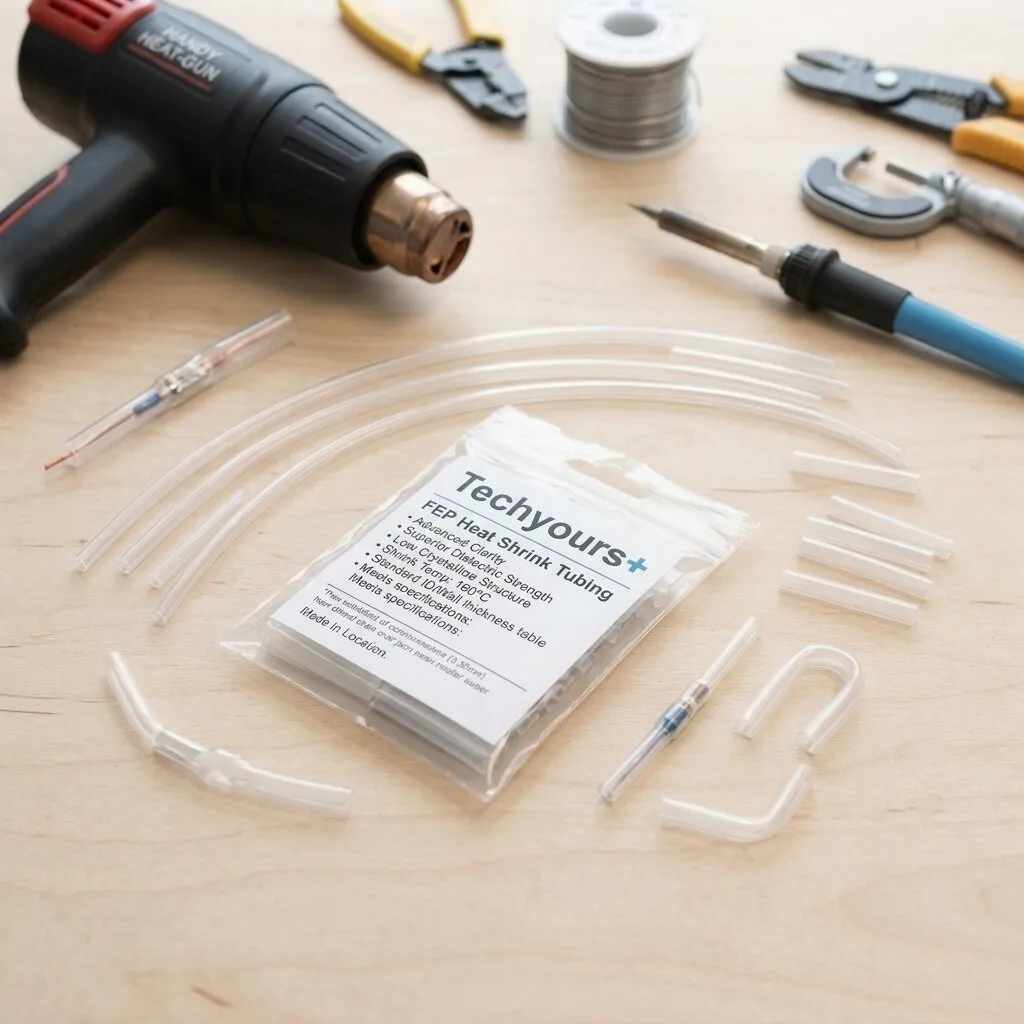

For a clearer view.
Consider FEP for transparent sleeves and applications where visual inspection matters. Confirm clarity and recovery conditions on the actual product.

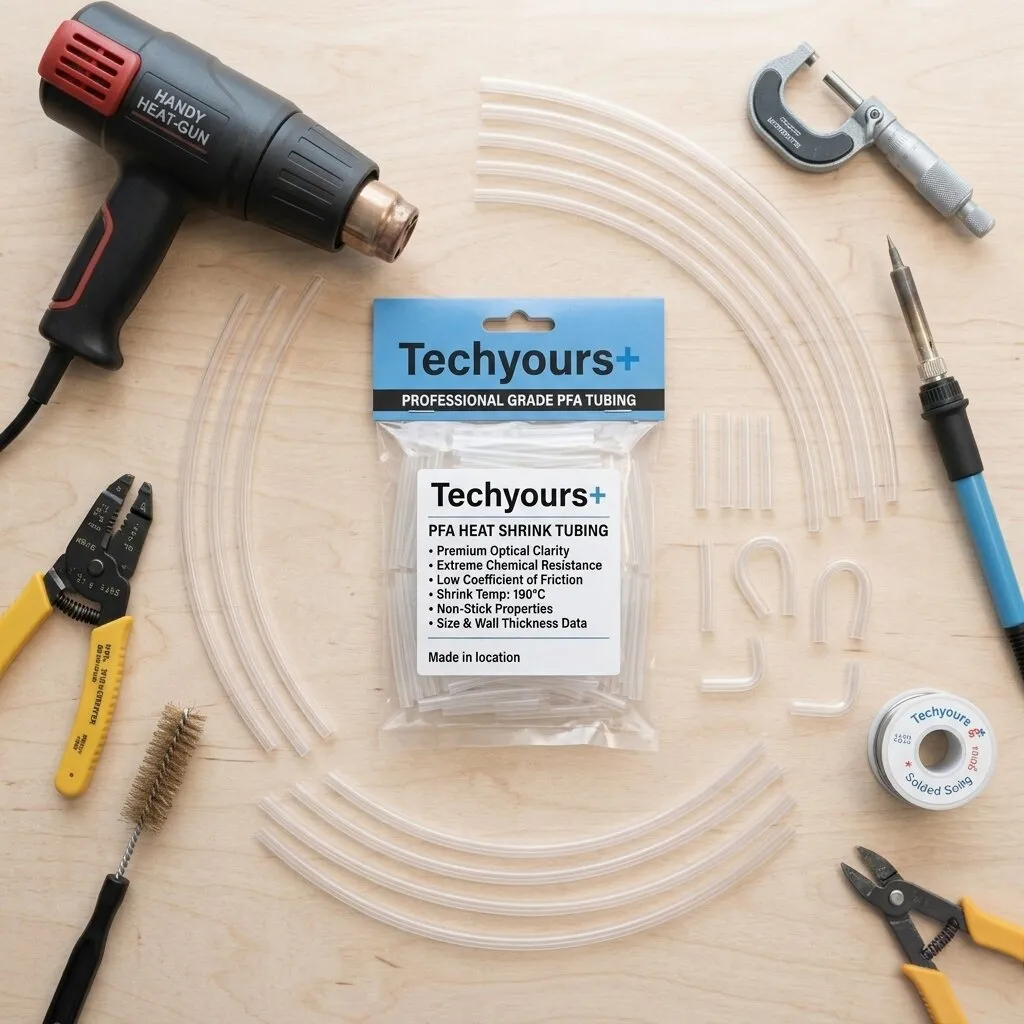

For demanding process environments.
Consider PFA for chemically demanding components. Where purity matters, request grade-specific extractables and cleanliness data.

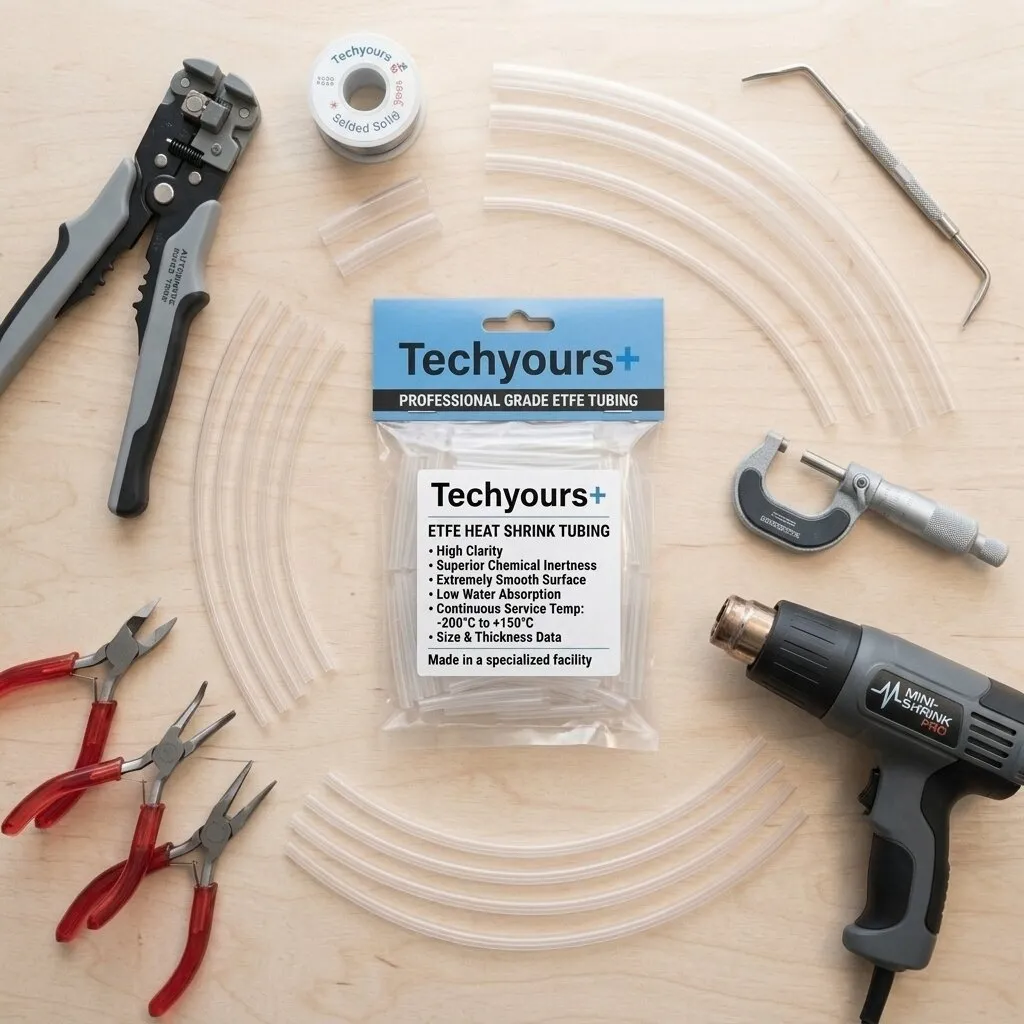

For mechanical protection.
Consider ETFE when abrasion and mechanical handling guide selection. Confirm environmental performance on the specified grade and construction.
Engineering selection
Compare what matters.
BEFORE / EXPANDED SLEEVE
AFTER / RECOVERED FIT
Start with the application. Then confirm the product specification.
| Design priority | PTFE | FEP | PFA | ETFE |
|---|---|---|---|---|
| Primary consideration | Low friction and heat exposure | Visibility and sleeve applications | Chemical process conditions | Abrasion and handling |
| Check before selection | Recovery heat and length change | Clarity and substrate heat tolerance | Purity data and recovery window | Mechanical and environmental tests |
| Dimensions to specify | Expanded ID, maximum recovered ID, recovered wall thickness, cut length and tolerances | |||
| Installation data to request | Recovery temperature and dwell time, shrink ratio, longitudinal change and approved heating method | |||
This is a selection guide, not a technical data sheet. Temperature ratings, shrink ratios and dimensional changes must be confirmed for the supplied product.
From concept to component
Built around
real applications.
Electronics & wiring
Evaluate sleeves for connectors, cable assemblies and component insulation. Validate dielectric performance and coverage after recovery.

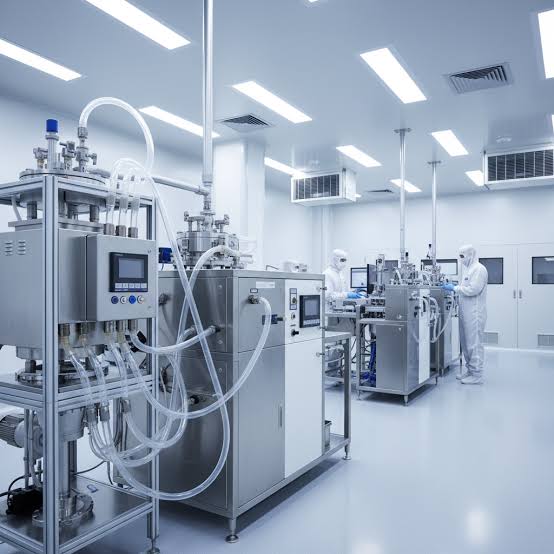

Process equipment
Assess protection for probes, sensor bodies and contact surfaces. Test against the actual chemicals, temperatures and exposure times.
Medical device manufacturing
Explore sleeves for assembly and processing tasks. Confirm whether the tubing is removed or retained, and request relevant documentation for the intended use.
Surface & roller sleeves
Consider coverage where release and surface protection matter. Trial the fit, finish and durability under real operating conditions.

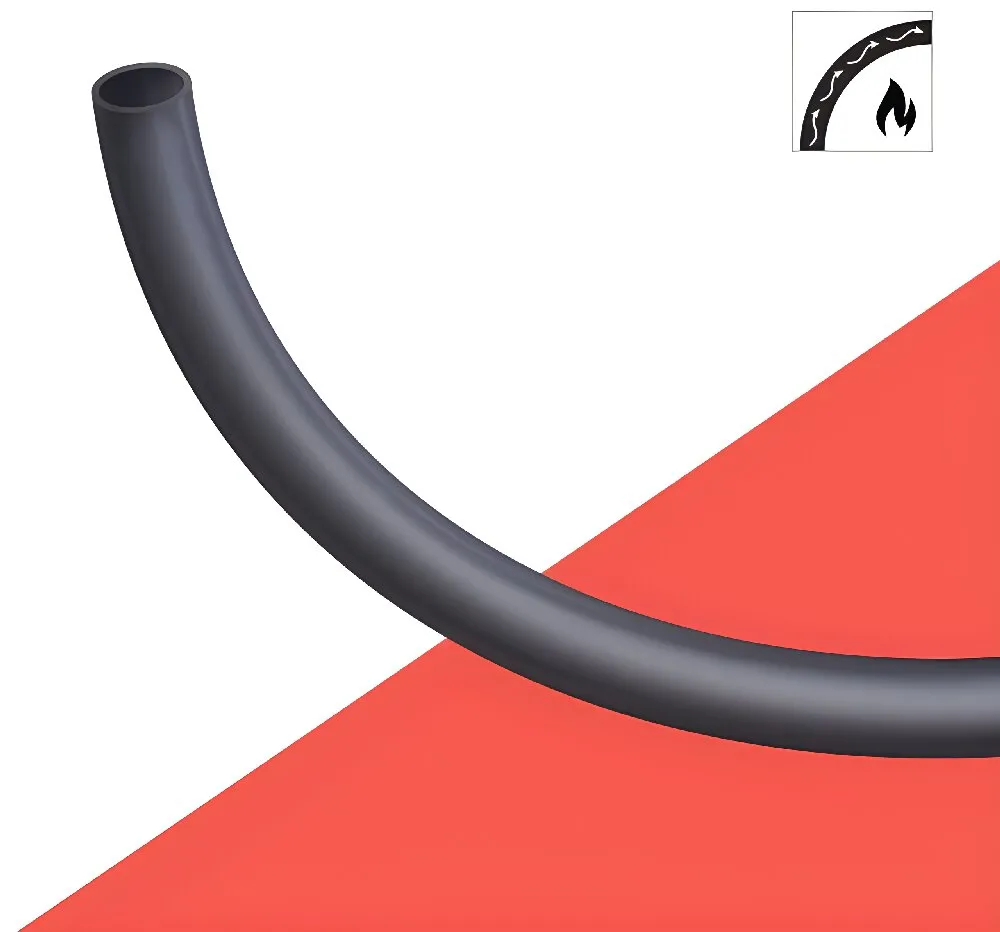

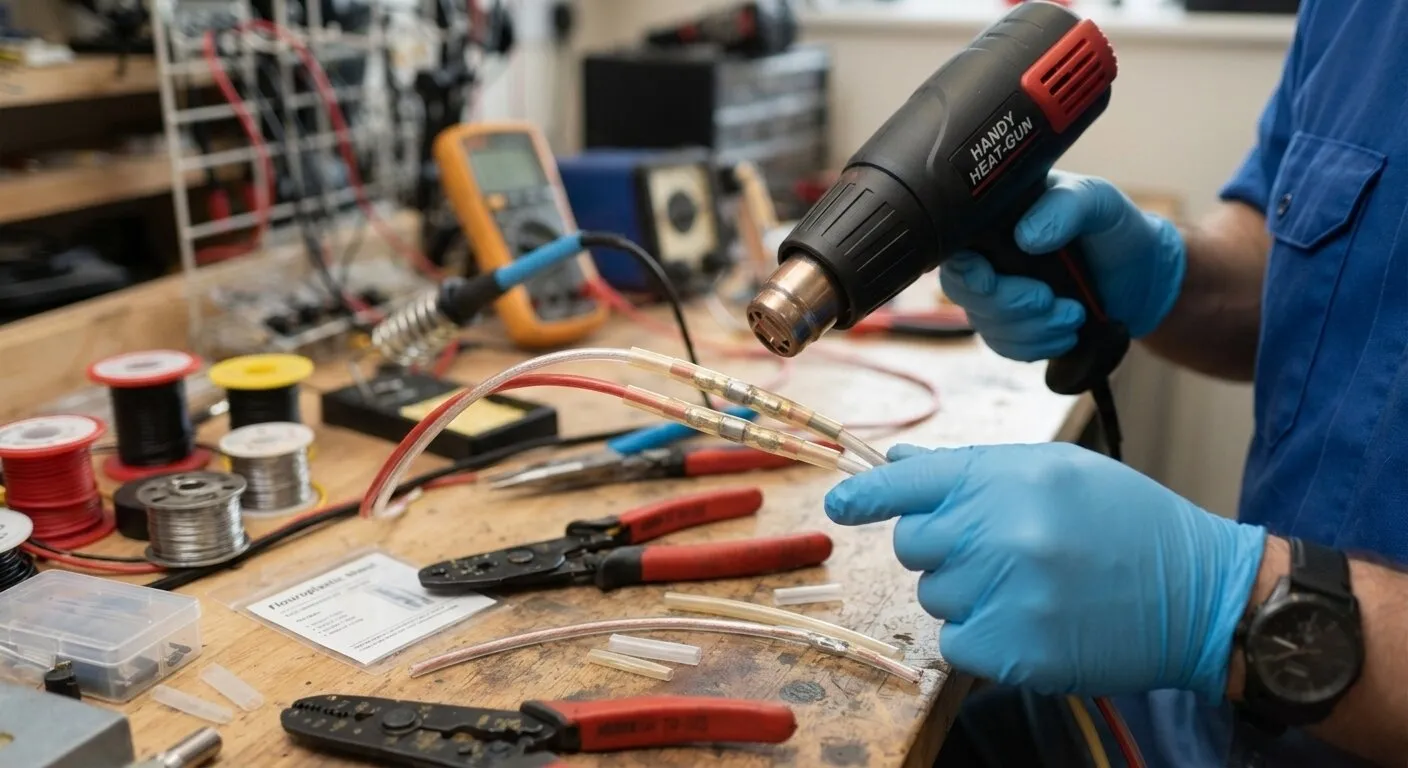

Controlled heat recovery
A better finish.
Step by step.
BEFORE / EXPANDED SLEEVE
AFTER / RECOVERED FIT
Start clean.
Clean and dry the component. Remove sharp edges and inspect the sleeve before installation.
Leave room for recovery.
Use the specified diameter and cut length. Allow for longitudinal change and verify the required end coverage.
Follow a validated cycle.
Use the supplier’s temperature, dwell time and heating method. Apply heat evenly with a progressive pattern that lets air escape.
Let the result settle.
Cool according to the process instructions. Check recovered dimensions, surface condition and any required electrical or functional performance.
Validate the recovery process on trial parts. Recovery temperature is different from continuous service temperature; do not use one as a substitute for the other.
Specify with confidence
Your next design.
Let’s shape it.
What dimensions should I provide?
Send component diameter, expanded and recovered tubing ID, recovered wall thickness, finished coverage length and required tolerances. Include drawings for complex geometries.
Does heat shrink tubing create a fluid-tight seal?
Recovery creates a close fit. A fluid-tight or hermetic seal requires a suitable construction and application-specific validation.
How do I confirm compliance or suitability?
Request documentation for the exact grade and finished tubing. Specify any biocompatibility, extractables, restricted-substance or industry requirements.
Make your inquiry engineering-ready.
Share material preference, dimensions, operating environment, substrate heat limit, quantity and documentation needs through the inquiry form below.
Use the existing website inquiry form immediately after this section.
"Your Next Great Design Is Just One Protective Skin Away."
Technical Performance Matrix
| Metrics | PTFE | FEP | PFA | ETFE |
| Max Continuous Temp | Up to 260°C | Up to 204°C | Up to 260°C | Up to 150°C |
| Rec. Shrink Temp | High: 330°C+ | Low: 175°C+ | Mid-High: 200°C+ | Mid-Low: 185°C+ |
| Longitudinal Change | ±10% to ±15% (Higher length loss) | Within ±5% (Extremely stable) | Within ±5% (Precision standard) | Within ±8% (Great thermal stability) |
| Mechanical/Abrasion Resistance | ⭐⭐⭐ | ⭐⭐⭐ | ⭐⭐⭐⭐ | ⭐⭐⭐⭐⭐ |
| Chemical Inertness | ⭐⭐⭐⭐⭐ (Universal) | ⭐⭐⭐⭐⭐ （Excellent) | ⭐⭐⭐⭐⭐ （Ultra-pure) | ⭐⭐⭐⭐ （Oil resistant) |
| Optical Clarity | ⭐ （Milky) | ⭐⭐⭐⭐⭐ （Clear) | ⭐⭐⭐⭐ （High clarity) | ⭐⭐⭐⭐ （High trans) |
| Radiation Resistance | ⭐ | ⭐⭐ | ⭐⭐ | ⭐⭐⭐⭐⭐ |
| Coefficient of Friction | Ultra-low 0.05 | Low 0.08 | Low 0.1 | Standard 0.3 |
Techyours+ Procurement Tip: Due to its high shrink ratio, PTFE experiences substantial longitudinal shrinkage (up to 15%). Always factor this length loss into your blueprint cutting parameters. If your application cannot tolerate exposed substrate ends after recovery, specify FEP or PFA, which hold an industry-leading length variance of within ±5%.
Beyond Materials: How Techyours+ Redefines Extreme Frontier Protection
Core Industrial Applications & Value Contributions: Engineering Supreme Protection with High-Performance Fluoropolymers
Techyours+ Fluoropolymer Heat Shrink Tubing — Engineered for absolute reliability across high-tech frontiers.
| Target Industry | Fluoropolymer | Practical Application in the Field | Core Value & Critical Contribution |
|---|---|---|---|

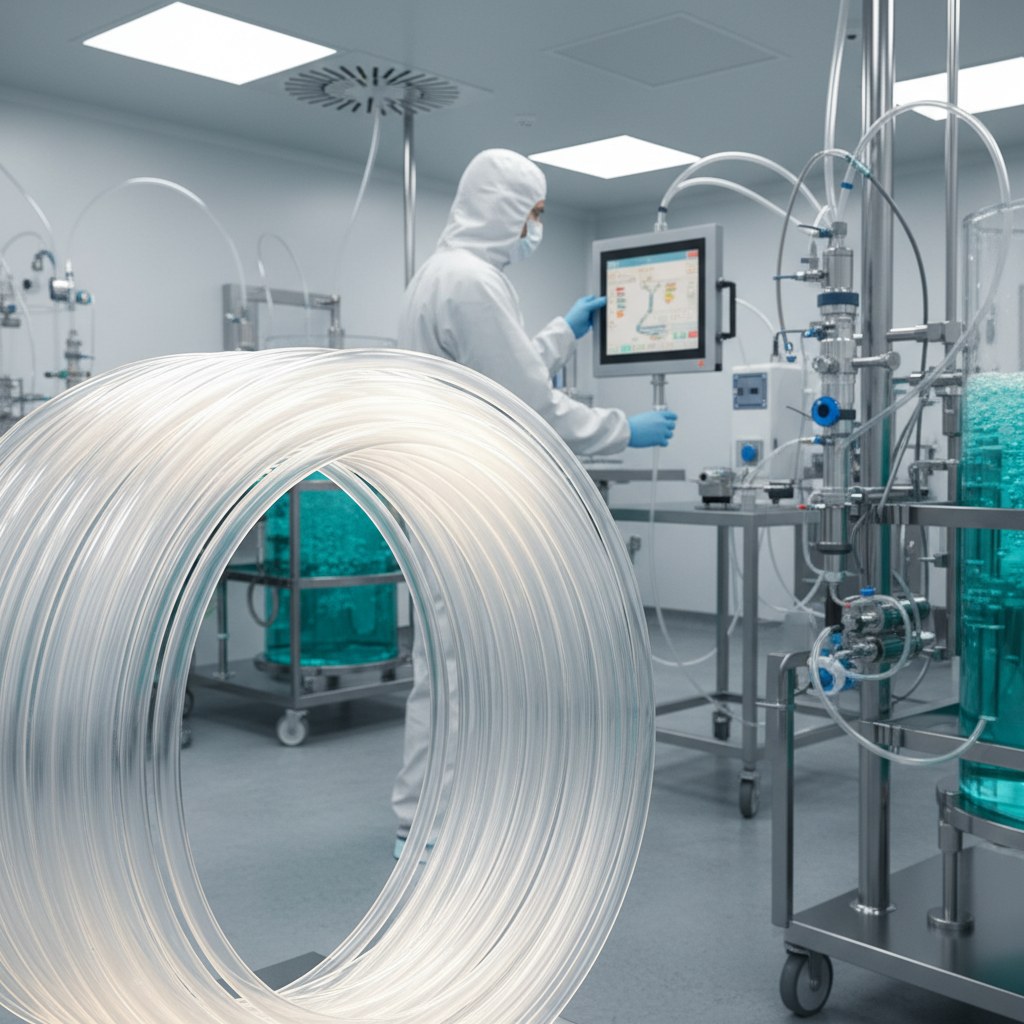

| Semiconductor & Advanced Node Fab | PFA / FEP | Encapsulation of sensor joints in Extreme Ultraviolet (EUV) lithography systems, ultra-high-purity quartz substrates, and chemical delivery pipelines or nozzles for aggressive etching and cleaning fluids. | Achieving Zero Contamination & Yield Maximization: Completely seals off metallic components from chemical corrosion by boiling acids and alkalis. Eliminates metal-ion leaching, safeguarding absolute fluid purity to optimize wafer yields in sub-nm manufacturing nodes. |
| Biomedical & Minimally Invasive Devices | PTFE / FEP | Ultra-thin-walled protective jacketing for minimally invasive catheters, endoscopic wire harnesses, guide wires, and handles of stainless-steel surgical instruments. | Elevating Medical Safety & Regulatory Compliance: Fully compliant with USP Class VI (highest biocompatibility standards). Leverages a 0.05 coefficient of friction for smooth, drag-free vascular insertion, minimizing clinical trauma and boosting patient outcomes. |
| Aerospace, Satellite & Nuclear Defense | ETFE / PTFE | Heavy-duty shielding for external wiring harnesses on deep-space satellites, critical avionics engine bay signal lines, and high-dosage radiation-resistant cabling within nuclear power plant control infrastructure. | Ensuring Zero-Failure Operational Integrity: Resists high-dose Gamma and cosmic radiation, vast thermal fluctuations in vacuum environments, and intense physical abrasion to secure uninterrupted mission-critical data and power transmission. |
| Heavy Chemical & Process Automation | PFA / PTFE | Aggressive component protection for internal wiring in high-temperature chemical reactors, heat exchanger tube bundles, downhole logging probe sensors, and industrial roller surfaces in automated paper/printing processing pipelines. | Extending Equipment Lifespan & Minimizing Downtime: Thanks to exceptional chemical inertness and premium anti-stick properties, it halts physical and chemical destruction of precision sensors by corrosive process media, multiplying equipment maintenance intervals. |
Knowledge at Your Fingertips.
Everything you need to choose with confidence.
Why Global Engineers & Procurement Managers Trust Techyours+?
Zero Eccentricity Extrusion.
Predictable Lengths, No Surprise.
Global Compliance Certified.
Custom Formulations & Rapid Lead Times.
