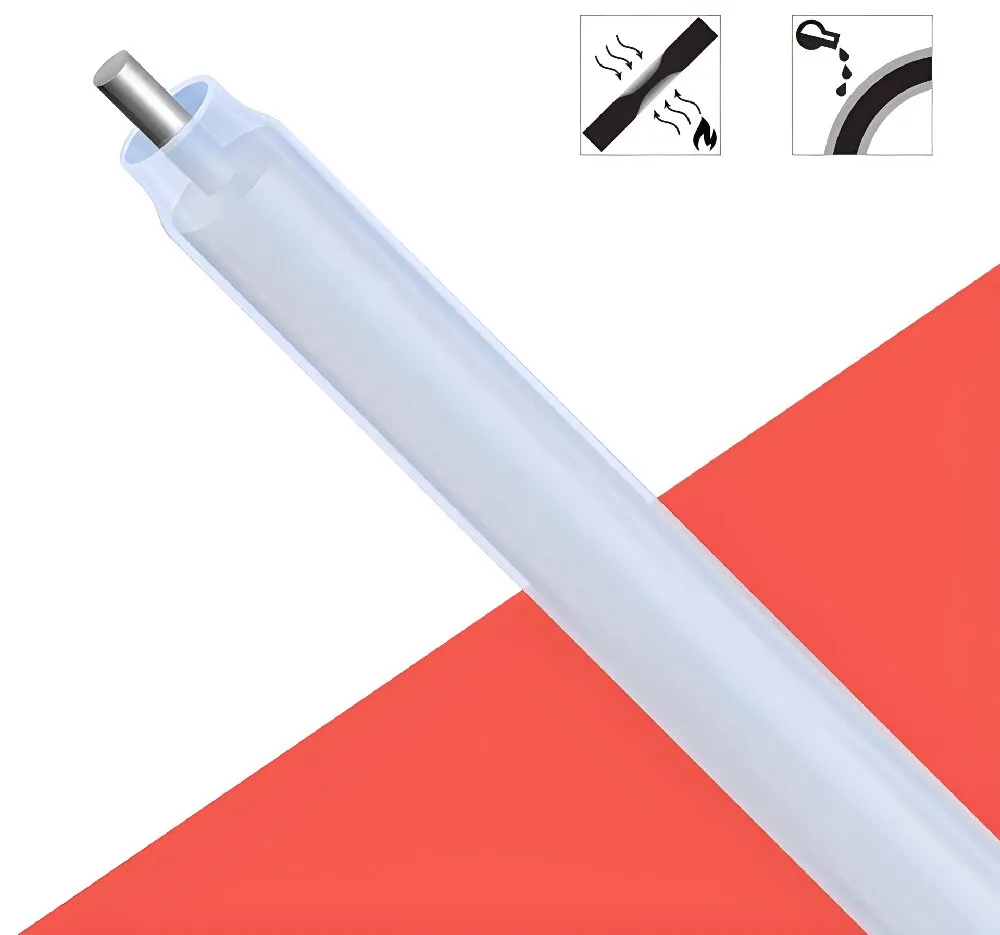

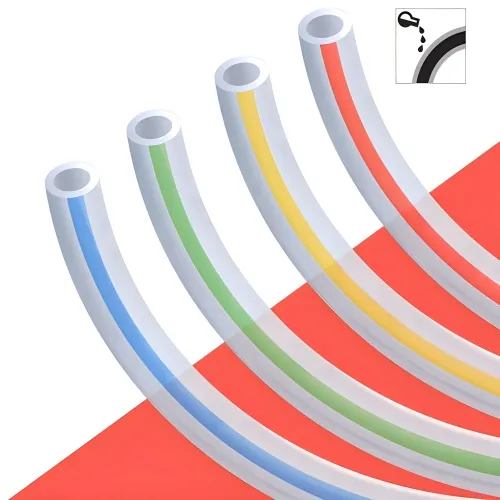

Techyours™ FEP Tubing

Get to Know Techyours™ FEP Tubing

The cost-effective brother of PTFE, FEP was developed as a conventionally melt-processible fluoropolymer in response to the limitations and initial difficulties in processing PTFE.

Techyours™ FEP tubing is a copolymer of TFE, the basic fluoro-monomer building block. The addition of a modifier results in a small, but meaningful departure from the properties of PTFE tubing. Mainly, it possesses a working pressure that is 30% higher, transparent walls, a small increase in stiffness, and a use temperature that is 60 degrees C lower.

Unlike other fluoropolymer tubing, long continuous lengths of Techyours™ FEP tubing can also be produced by extrusion. The relatively low cost and desired properties of Techyours™ FEP tubing drives its use in many applications that require high electrical breakdown voltage, low dielectric constant, high chemical resistance, high UV transmission, excellent sterilizability and longevity of use.

Techyours™ FEP Tubing Offers

● Chemically inert to most industrial chemicals and solvents

● Non-flammable

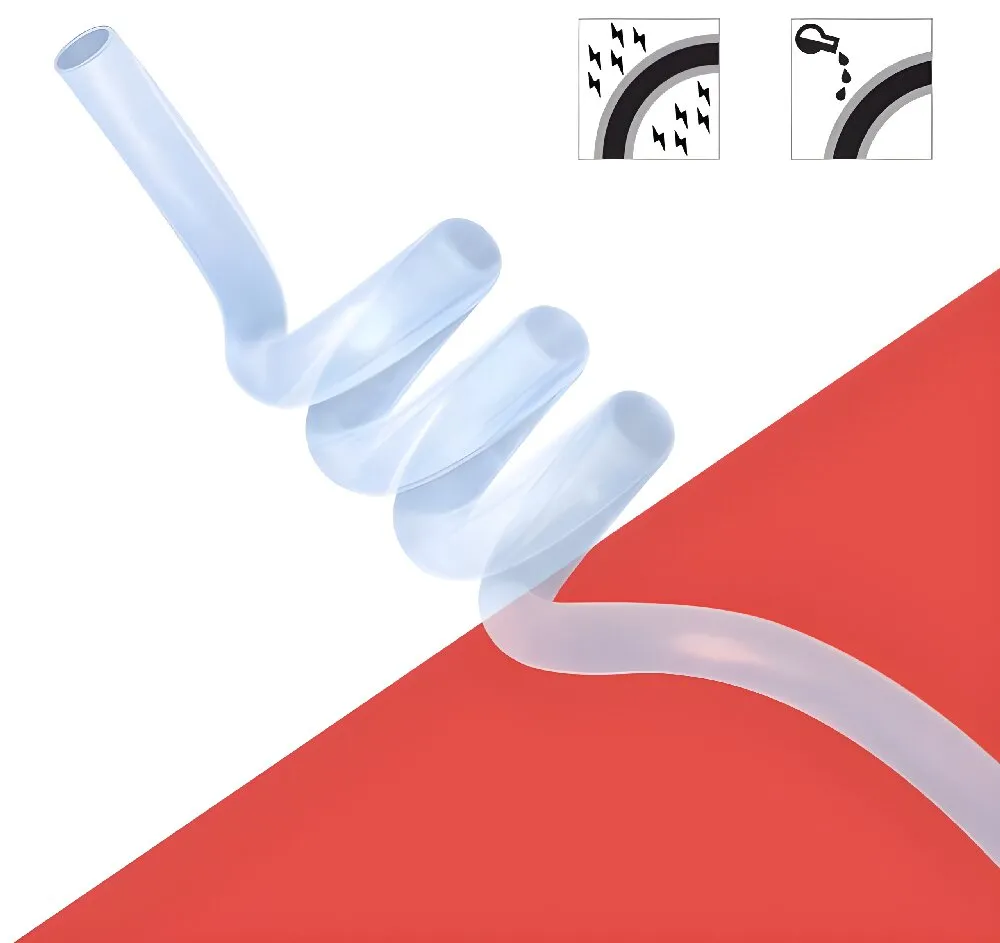

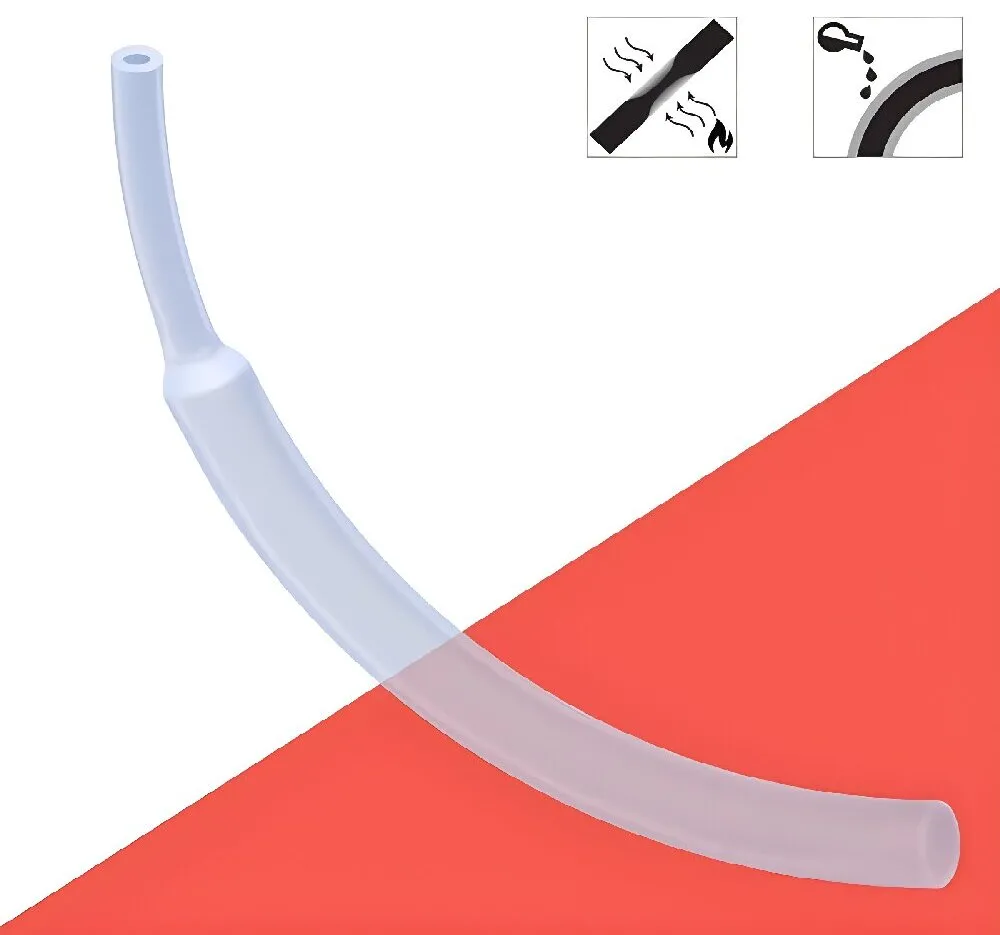

● Available in coiled, convoluted and heat-shrink construction

● High thermal stability

Features of Techyours™ FEP Tubing

Quality

Techyours™ FEP tubing is manufactured to rigorous standards using premium materials and state-of-the-art production techniques. In-house quality control ensures consistency, purity, and performance, meeting or exceeding industry specifications.

Customization

The option to customize in order to meet the specs of different applications is always there. We can tailor our FEP tubing to fit the needs of your operations, ensuring performance.

Expertise

Techyours™ are dedicated to making sure our customers get the right solutions for their projects and that is reflected in our support efforts. Give us a call! Our experienced engineers would love to help.

Built to Last

Techyours™ FEP tubing has become synonymous with dependability and strength. It is designed to withstand extreme temperatures, chemical exposure, mechanical stress, and other harsh conditions, ensuring reliability in demanding applications.

Commitment to Innovation

With a commitment to continuous improvement and innovation, Techyours™ stays at the forefront of FEP tubing technology. We invest in research and development to introduce new materials, formulations, and manufacturing techniques that enhance the performance and functionality of our products, enabling our customers to stay ahead of the curve.

Metric Sizes

SIZE, ID X OD	INSIDE DIAMETER-ID	TOLERANCE, +/-	WALL THICKNESS	TOLERANCE, +/-	OUTSIDE DIAMETER-OD
2*3	2	0.10	0.50	0.10	3
2*4	2	0.10	1.00	0.10	4
3*4	3	0.15	0.50	0.20	4
3*5	3	0.15	1.00	0.20	5
4*5	4	0.15	0.50	0.10	5
4*6	4	0.15	1.00	0.20	6
5*6	5	0.20	0.50	0.10	6
5*7	5	0.20	1.00	0.20	7
6*7	6	0.20	0.50	0.10	7
6*8	6	0.20	1.00	0.20	8
7*8	7	0.20	0.50	0.10	8
7*9	7	0.20	1.00	0.20	9
8*9	8	0.20	0.50	0.10	9
8*10	8	0.20	1.0	0.20	10
10*12	10	0.30	1.0	0.10	12
12*14	12	0.30	1.0	0.20	14
14*16	14	0.40	1.0	0.10	16
16*18	16	0.40	1.0	0.20	18
18*20	18	0.50	1.0	0.10	20
20*22	20	0.50	1.0	0.20	22

Inche Sizes

SIZE, FRACTIONA	INSIDE DIAMETER-ID	WALL THICKNESS	TOLERANCE, +/-	OUTSIDE DIAMETER-OD	TOLERANCE, +/-
1/32	0.031	0.016	0.003	0.063	0.004
1/16	0.063	0.031	0.005	0.125	0.005
1/16	0.063	0.062	0.010	0.188	0.008
1/8	0.125	0.031	0.005	0.188	0.008
1/8	0.125	0.062	0.010	0.250	0.008
5/32	0.156	0.047	0.007	0.250	0.008
3/16	0.188	0.031	0.005	0.250	0.008
1/4	0.250	0.031	0.005	0.313	0.010
1/4	0.250	0.062	0.010	0.375	0.010
5/16	0.312	0.031	0.005	0.375	0.010
3/8	0.375	0.031	0.005	0.438	0.010
3/8	0.375	0.062	0.010	0.500	0.010
7/16	0.438	0.031	0.005	0.500	0.010
1/2	0.500	0.031	0.005	0.563	0.010
1/2	0.500	0.062	0.010	0.625	0.010
9/16	0.562	0.031	0.005	0.625	0.010
5/8	0.625	0.031	0.007	0.688	0.020
5/8	0.625	0.062	0.010	0.750	0.020
11/16	0.688	0.031	0.007	0.750	0.020
3/4	0.750	0.040	0.007	0.830	0.020
7/8	0.875	0.045	0.007	0.965	0.020
7/8	0.875	0.062	0.010	1.000	0.020
1	1.000	0.045	0.007	1.090	0.020
1-1/4	1.250	0.045	0.007	1.340	0.020
1-1/2	1.500	0.050	0.008	1.600	0.020

Metric Spaghetti Sizes

INSIDE DIAMETER-ID	TOLERANCE, +/-	WALL THICKNESS	TOLERANCE, +/-	OUTSIDE DIAMETER-OD
0.30	0.05	0.23	0.05	0.76
0.40	0.05	0.23	0.05	0.86
0.50	0.05	0.23	0.05	0.96
0.50	0.05	0.30	0.05	1.10
0.70	0.05	0.25	0.05	1.20
0.90	0.05	0.30	0.07	1.50
1.00	0.05	0.30	0.07	1.60
1.10	0.10	0.30	0.07	1.70
1.20	0.10	0.30	0.07	1.80
1.40	0.10	0.30	0.07	2.00
1.50	0.10	0.30	0.07	2.10
1.70	0.10	0.30	0.07	2.30
1.90	0.10	0.30	0.07	2.50
2.20	0.15	0.30	0.07	2.80
2.40	0.15	0.30	0.07	3.00
2.70	0.15	0.30	0.07	3.30
2.90	0.15	0.30	0.07	3.50
3.00	0.15	0.30	0.07	3.60
3.20	0.15	0.30	0.07	3.80
3.40	0.15	0.30	0.07	4.00

AWG Sizes

SIZE	INSIDE DIAMETER-ID		LIGHT WALL		THIN WALL		HEAVY WALL		HEAVY WALL
	MIN	MAX	NOM	TOL +/-	NOM	TOL +/-	NOM	TOL +/-	NOM	TOL +/-
32	0.007	0.011	0.006	0.002	0.009	0.002
30	0.010	0.015	0.006	0.002	0.009	0.002	0.009	0.002
28	0.013	0.018	0.006	0.002	0.009	0.002	0.009	0.002
26	0.016	0.0021	0.006	0.002	0.009	0.002	0.009	0.002
24	0.020	0.026	0.006	0.002	0.010	0.003	0.012	0.003	0.016	0.003
23	0.023	0.029	0.006	0.002	0.010	0.003	0.012	0.003	0.016	0.003
22	0.025	0.032	0.006	0.002	0.010	0.003	0.012	0.003	0.016	0.003
21	0.029	0.035	0.006	0.002	0.010	0.003	0.012	0.003	0.018	0.003
20	0.032	0.040	0.006	0.002	0.012	0.003	0.016	0.003	0.018	0.003
19	0.036	0.044	0.006	0.002	0.012	0.003	0.016	0.003	0.020	0.004
18	0.040	0.049	0.006	0.002	0.012	0.003	0.016	0.003	0.020	0.004
17	0.045	0.054	0.006	0.002	0.012	0.003	0.016	0.003	0.020	0.004
16	0.051	0.061	0.006	0.002	0.012	0.003	0.016	0.003	0.020	0.004
15	0.057	0.067	0.006	0.002	0.012	0.003	0.016	0.003	0.020	0.004
14	0.064	0.074	0.008	0.002	0.012	0.003	0.016	0.003	0.020	0.004
13	0.072	0.082	0.008	0.002	0.012	0.003	0.016	0.003	0.020	0.004
12	0.081	0.091	0.008	0.002	0.012	0.003	0.016	0.003	0.020	0.004
11	0.091	0.101	0.008	0.002	0.012	0.003	0.016	0.003	0.020	0.004
10	0.102	0.112	0.008	0.002	0.012	0.003	0.016	0.003	0.025	0.005
9	0.114	0.124	0.008	0.002	0.015	0.003	0.020	0.004	0.025	0.005
8	0.129	0.141	0.008	0.002	0.015	0.003	0.020	0.004	0.030	0.005
7	0.144	0.124	0.008	0.002	0.015	0.003	0.020	0.004	0.030	0.005
6	0.162	0.178	0.010	0.003	0.015	0.003	0.020	0.004	0.030	0.005
5	0.182	0.198	0.010	0.003	0.015	0.003	0.020	0.004	0.032	0.005
4	0.204	0.224	0.010	0.003	0.015	0.003	0.020	0.004
3	0.229	0.249	0.010	0.003	0.015	0.003	0.020	0.004
2	0.258	0.278	0.010	0.003	0.015	0.003	0.020	0.004
1	0.289	0.311	0.010	0.003	0.015	0.003	0.020	0.004
0	0.325	0.347	0.012	0.003	0.015	0.003	0.020	0.004
