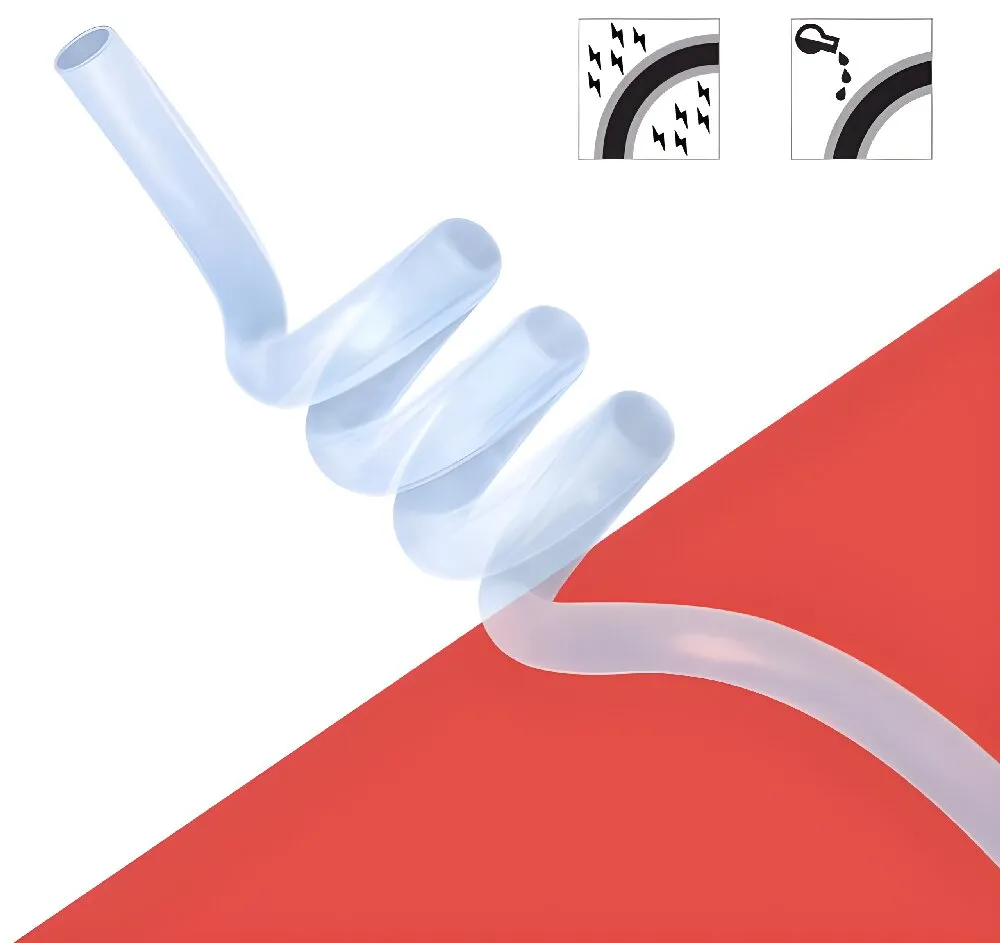

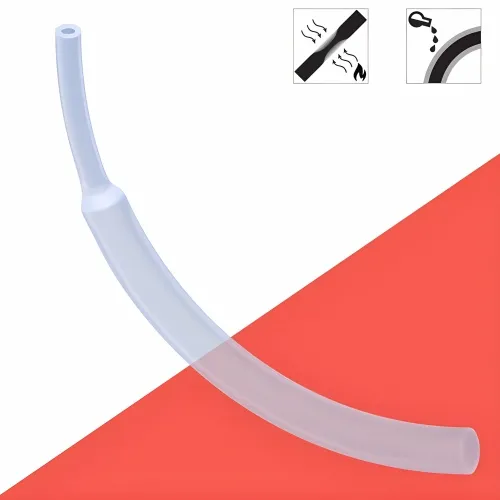

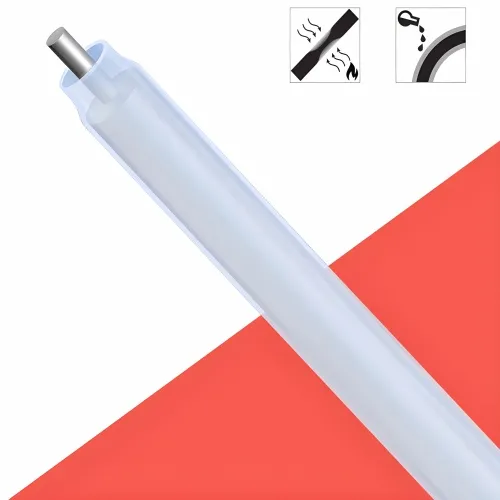

Techyours™ ETFE Tubing

Get to Know Techyours™ ETFE Tubing

Everflon™ ETFE is a fluoropolymer that is chemically and structurally similar to polyolefins such as polyethylene, thus providing a higher abrasion, impact, and crush resistance than its fully fluorinated (perfluoropolymer) counterparts -PTFE, FEP and PFA.

Techyours™ ETFE tubing is commonly used in wiring harnesses, in exterior film applications where weathering resistance is desirable, and as a liner in tanks where specific chemical and wear resistance is required. Its high tensile strength at 25 °C also leads to a higher working pressure at that temperature.

Techyours™ ETFE Tubing Offers

● High abrasion and wear resistance while maintaining chemical inertness

● Higher tensile strength and working pressure than PTFE, FEP, PFA at 25 degrees Celsius

● More limited chemical resistance than PTFE, FEP and PFA

● Great for mechanical, electrical, architectural, and aerospace applications

● Maximum use temperature of 300 F (~150 C)

● Natural ETFE is semi-transparent

Features of Techyours™ ETFE Tubing

Chemical Resistance:

Techyours™ ETFE tubing exhibits excellent resistance to a wide range of chemicals, including acids, bases, solvents, and corrosive substances. This makes it an ideal choice for applications involving aggressive chemical environments.

High Temperature Stability

Techyours™ ETFE tubing can withstand elevated temperatures without sacrificing its mechanical properties. It retains its structural integrity and dimensional stability even at temperatures exceeding 150°C (302°F), making it suitable for high-temperature applications.

Mechanical Strength

Despite its lightweight nature,Techyours™ ETFE tubing boasts impressive mechanical strength and toughness. It can endure mechanical stresses, including bending, flexing, and impact, without undergoing deformation or failure.

Transparency

Techyours™ ETFE tubing offers excellent optical clarity, allowing for visual inspection of fluids and processes. Its transparency enables operators to monitor flow, detect contaminants, and ensure proper functioning in various applications.

UV Resistance

Techyours™ ETFE tubing is inherently resistant to ultraviolet (UV) radiation, making it suitable for outdoor applications exposed to sunlight. It does not degrade or become brittle upon prolonged exposure to UV rays, ensuring long-term durability and performance.

Metric Sizes

SIZE, ID X OD	INSIDE DIAMETER-ID	TOLERANCE, +/-	WALL THICKNESS	TOLERANCE, +/-	OUTSIDE DIAMETER-OD
2*3	2	0.10	0.50	0.10	3
2*4	2	0.10	1.00	0.10	4
3*4	3	0.15	0.50	0.20	4
3*5	3	0.15	1.00	0.20	5
4*5	4	0.15	0.50	0.10	5
4*6	4	0.15	1.00	0.20	6
5*6	5	0.20	0.50	0.10	6
5*7	5	0.20	1.00	0.20	7
6*7	6	0.20	0.50	0.10	7
6*8	6	0.20	1.00	0.20	8
7*8	7	0.20	0.50	0.10	8
7*9	7	0.20	1.00	0.20	9
8*9	8	0.20	0.50	0.10	9
8*10	8	0.20	1.0	0.20	10
10*12	10	0.30	1.0	0.10	12
12*14	12	0.30	1.0	0.20	14
14*16	14	0.40	1.0	0.10	16
16*18	16	0.40	1.0	0.20	18
18*20	18	0.50	1.0	0.10	20
20*22	20	0.50	1.0	0.20	22

Inche Sizes

SIZE, FRACTIONA	INSIDE DIAMETER-ID	WALL THICKNESS	TOLERANCE, +/-	OUTSIDE DIAMETER-OD	TOLERANCE, +/-
1/32	0.031	0.016	0.003	0.063	0.004
1/16	0.063	0.031	0.005	0.125	0.005
1/16	0.063	0.062	0.010	0.188	0.008
1/8	0.125	0.031	0.005	0.188	0.008
1/8	0.125	0.062	0.010	0.250	0.008
5/32	0.156	0.047	0.007	0.250	0.008
3/16	0.188	0.031	0.005	0.250	0.008
1/4	0.250	0.031	0.005	0.313	0.010
1/4	0.250	0.062	0.010	0.375	0.010
5/16	0.312	0.031	0.005	0.375	0.010
3/8	0.375	0.031	0.005	0.438	0.010
3/8	0.375	0.062	0.010	0.500	0.010
7/16	0.438	0.031	0.005	0.500	0.010
1/2	0.500	0.031	0.005	0.563	0.010
1/2	0.500	0.062	0.010	0.625	0.010
9/16	0.562	0.031	0.005	0.625	0.010
5/8	0.625	0.031	0.007	0.688	0.020
5/8	0.625	0.062	0.010	0.750	0.020
11/16	0.688	0.031	0.007	0.750	0.020
3/4	0.750	0.040	0.007	0.830	0.020
7/8	0.875	0.045	0.007	0.965	0.020
7/8	0.875	0.062	0.010	1.000	0.020
1	1.000	0.045	0.007	1.090	0.020
1-1/4	1.250	0.045	0.007	1.340	0.020
1-1/2	1.500	0.050	0.008	1.600	0.020

Metric Spaghetti Sizes

INSIDE DIAMETER-ID	TOLERANCE, +/-	WALL THICKNESS	TOLERANCE, +/-	OUTSIDE DIAMETER-OD
0.30	0.05	0.23	0.05	0.76
0.40	0.05	0.23	0.05	0.86
0.50	0.05	0.23	0.05	0.96
0.50	0.05	0.30	0.05	1.10
0.70	0.05	0.25	0.05	1.20
0.90	0.05	0.30	0.07	1.50
1.00	0.05	0.30	0.07	1.60
1.10	0.10	0.30	0.07	1.70
1.20	0.10	0.30	0.07	1.80
1.40	0.10	0.30	0.07	2.00
1.50	0.10	0.30	0.07	2.10
1.70	0.10	0.30	0.07	2.30
1.90	0.10	0.30	0.07	2.50
2.20	0.15	0.30	0.07	2.80
2.40	0.15	0.30	0.07	3.00
2.70	0.15	0.30	0.07	3.30
2.90	0.15	0.30	0.07	3.50
3.00	0.15	0.30	0.07	3.60
3.20	0.15	0.30	0.07	3.80
3.40	0.15	0.30	0.07	4.00

AWG Sizes

SIZE	INSIDE DIAMETER-ID		LIGHT WALL		THIN WALL		HEAVY WALL		HEAVY WALL
	MIN	MAX	NOM	TOL +/-	NOM	TOL +/-	NOM	TOL +/-	NOM	TOL +/-
32	0.007	0.011	0.006	0.002	0.009	0.002
30	0.010	0.015	0.006	0.002	0.009	0.002	0.009	0.002
28	0.013	0.018	0.006	0.002	0.009	0.002	0.009	0.002
26	0.016	0.0021	0.006	0.002	0.009	0.002	0.009	0.002
24	0.020	0.026	0.006	0.002	0.010	0.003	0.012	0.003	0.016	0.003
23	0.023	0.029	0.006	0.002	0.010	0.003	0.012	0.003	0.016	0.003
22	0.025	0.032	0.006	0.002	0.010	0.003	0.012	0.003	0.016	0.003
21	0.029	0.035	0.006	0.002	0.010	0.003	0.012	0.003	0.018	0.003
20	0.032	0.040	0.006	0.002	0.012	0.003	0.016	0.003	0.018	0.003
19	0.036	0.044	0.006	0.002	0.012	0.003	0.016	0.003	0.020	0.004
18	0.040	0.049	0.006	0.002	0.012	0.003	0.016	0.003	0.020	0.004
17	0.045	0.054	0.006	0.002	0.012	0.003	0.016	0.003	0.020	0.004
16	0.051	0.061	0.006	0.002	0.012	0.003	0.016	0.003	0.020	0.004
15	0.057	0.067	0.006	0.002	0.012	0.003	0.016	0.003	0.020	0.004
14	0.064	0.074	0.008	0.002	0.012	0.003	0.016	0.003	0.020	0.004
13	0.072	0.082	0.008	0.002	0.012	0.003	0.016	0.003	0.020	0.004
12	0.081	0.091	0.008	0.002	0.012	0.003	0.016	0.003	0.020	0.004
11	0.091	0.101	0.008	0.002	0.012	0.003	0.016	0.003	0.020	0.004
10	0.102	0.112	0.008	0.002	0.012	0.003	0.016	0.003	0.025	0.005
9	0.114	0.124	0.008	0.002	0.015	0.003	0.020	0.004	0.025	0.005
8	0.129	0.141	0.008	0.002	0.015	0.003	0.020	0.004	0.030	0.005
7	0.144	0.124	0.008	0.002	0.015	0.003	0.020	0.004	0.030	0.005
6	0.162	0.178	0.010	0.003	0.015	0.003	0.020	0.004	0.030	0.005
5	0.182	0.198	0.010	0.003	0.015	0.003	0.020	0.004	0.032	0.005
4	0.204	0.224	0.010	0.003	0.015	0.003	0.020	0.004
3	0.229	0.249	0.010	0.003	0.015	0.003	0.020	0.004
2	0.258	0.278	0.010	0.003	0.015	0.003	0.020	0.004
1	0.289	0.311	0.010	0.003	0.015	0.003	0.020	0.004
0	0.325	0.347	0.012	0.003	0.015	0.003	0.020	0.004
