Techyours™ PFA Tubing

Techyours™ Fluoropolymer Tubing

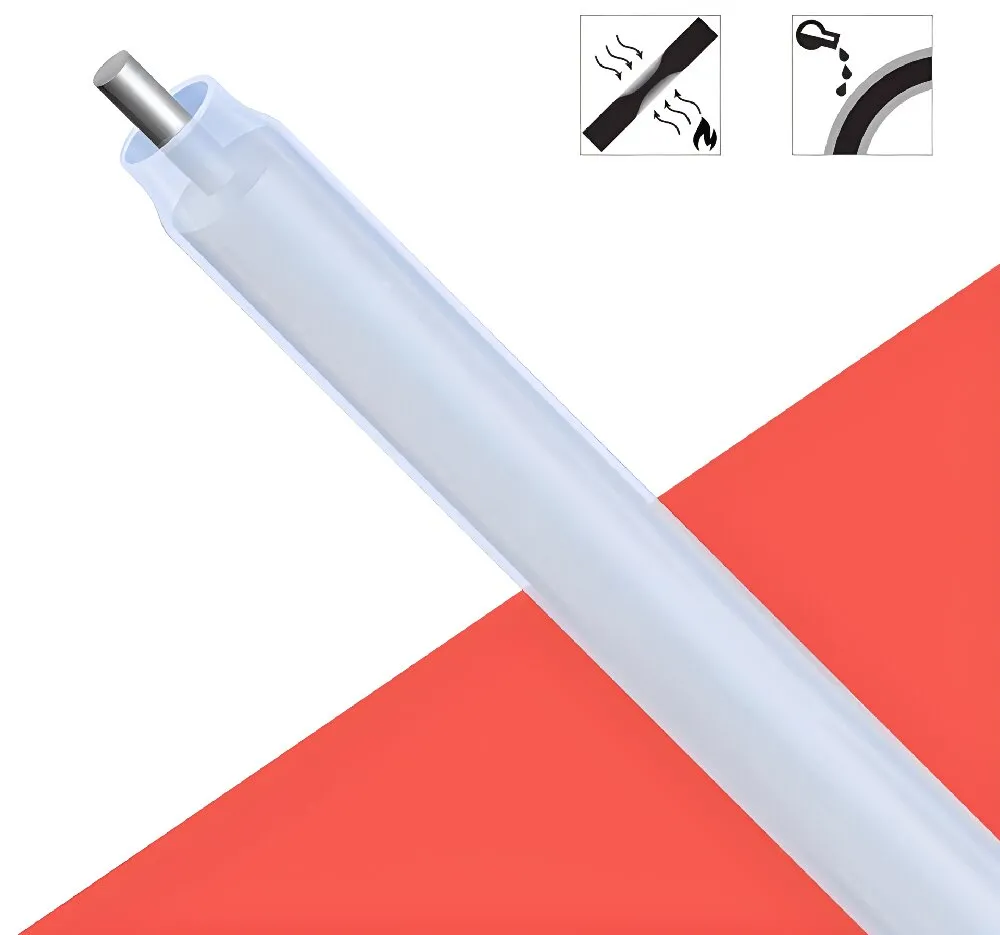

PFA Tubing. Engineered for Purity.

High-temperature fluoropolymer tubing engineered for demanding fluid handling, chemical processing and contamination-sensitive systems — combining chemical resistance, clarity, flexibility and long-term performance.

Explore Specifications Request a Quote →

260°C Continuous-use temperature capability

Built for Demanding Flow Systems

Performance you can see. Purity you can engineer around.

Techyours™ PFA Tubing combines the high-temperature performance expected from premium fluoropolymers with excellent chemical resistance and a naturally translucent appearance that helps operators visually monitor fluid movement and identify potential flow restrictions.

Its balance of stiffness and flexibility makes PFA tubing suitable for fixed installations as well as equipment requiring repeated movement, while high-purity and ultra-high-purity options support contamination-sensitive process environments.

Performance at a Glance

Engineered beyond ordinary tubing.

260°C

High-Temperature Performance

Designed for continuous-use environments approaching 500°F / 260°C.

4.5 bar

Steam Capability

Suitable for applications handling live saturated steam at pressures up to approximately 4.5 bar gauge.

UHP

Ultra-High Purity Options

High-purity and ultra-high-purity configurations are available for contamination-sensitive fluid systems.

Why Techyours™ PFA

Designed around the realities of advanced processing.

01 / CHEMICAL

Exceptional Chemical Resistance

Built for aggressive chemical environments where conventional tubing materials can degrade, contaminate the process or lose mechanical performance.

02 / TEMPERATURE

Performance at Elevated Temperatures

PFA maintains useful properties across demanding thermal conditions, making it suitable for high-temperature fluid and process systems.

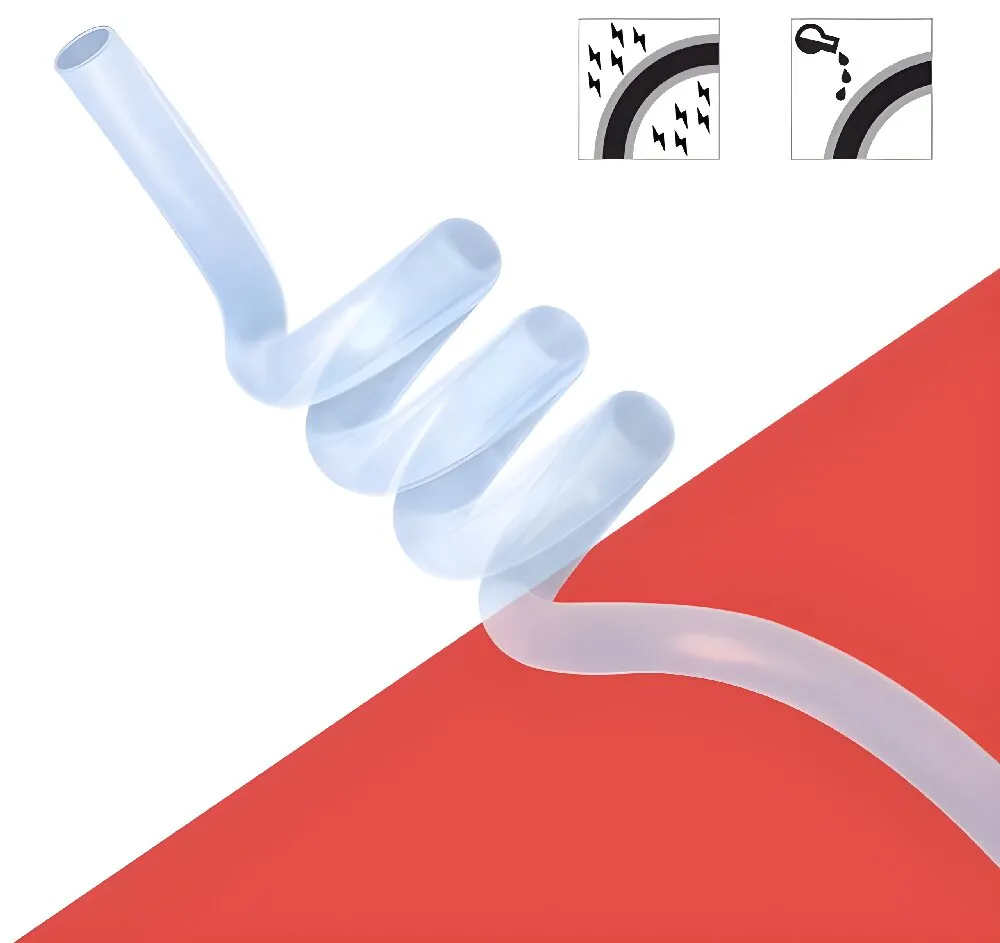

03 / VISIBILITY

See the Process

Its translucent appearance helps operators visually monitor fluids, process conditions and potential blockages without opening the system.

04 / MECHANICAL

Stiffness Meets Flex-Life

A combination of structural stability, flexibility and resistance to cracking supports both fixed installations and moving equipment.

UHP Ultra-High Purity Available

PURITY-FOCUSED ENGINEERING

When contamination isn't an option.

Techyours™ PFA Tubing is available in high-purity and ultra-high-purity configurations for applications where process cleanliness is critical. Its fluoropolymer construction makes it an excellent candidate for precision fluid delivery and contamination-sensitive environments.

Semiconductor Pharmaceutical Laboratory Environmental Systems Chemical Processing

Applications

One material. Across critical industries.

Developed for demanding fluid-handling environments where temperature, chemical exposure, purity and long service life matter.

Semiconductor

High-purity chemical and process fluid delivery systems.

Pharmaceutical

Clean fluid handling and contamination-sensitive processing.

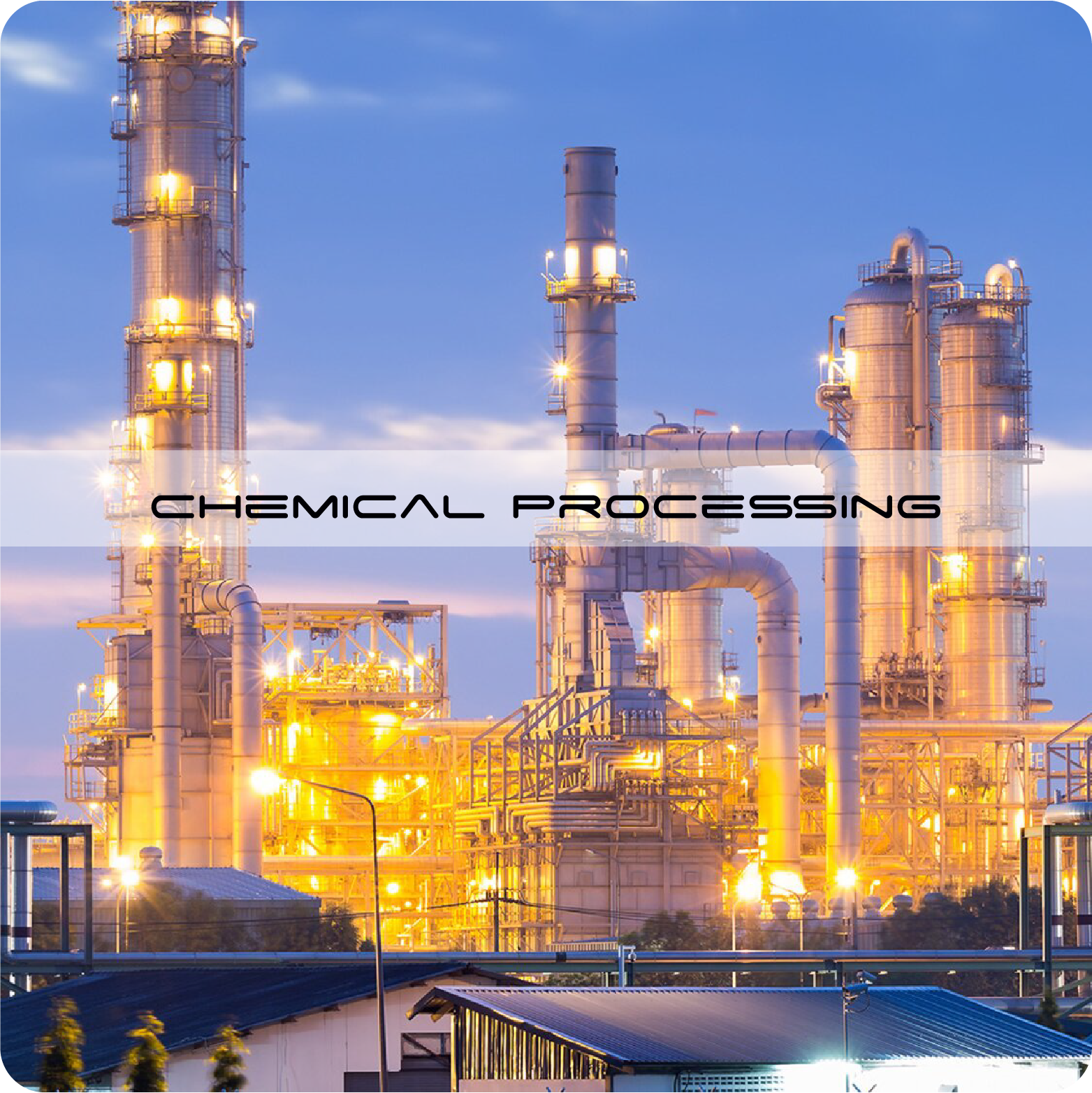

Chemical Processing

Transport of aggressive and corrosive process media.

Laboratory

Precision fluid transfer and analytical equipment.

Industrial Equipment

High-temperature and mechanically demanding fluid systems.

Environmental Systems

Reliable tubing for monitoring and specialty fluid-handling systems.

Choose tubing for the environment you actually operate in.

High Temperature

Techyours™ PFA: Up to ~260°C

Conventional tubing: Material-dependent

Chemical Resistance

Designed for highly aggressive media

May require chemical-specific evaluation

Process Visibility

Translucent / clear options

Often opaque

Purity Options

High purity / ultra-high purity available

Varies widely by material

Moving Equipment

Good stiffness and flex-life balance

Application dependent

Dimensional Options

Made to fit the system.

Techyours™ PFA Tubing is available across multiple dimensional standards for industrial, laboratory, electrical and precision fluid-handling applications.

01 Metric Sizes

Standard metric inside diameter, wall thickness and outside diameter combinations.

02 Inch Sizes

Fractional inch configurations for North American and international equipment designs.

03 Metric Spaghetti

Small-diameter tubing configurations for compact, precision-oriented applications.

04 AWG Sizes

AWG-based dimensional options with multiple wall thickness configurations.

More Than a Standard Tube

Configured around your application.

QUALITY

Controlled Manufacturing

Manufactured using carefully selected fluoropolymer materials and controlled production processes designed for dimensional consistency and dependable performance.

CUSTOMIZATION

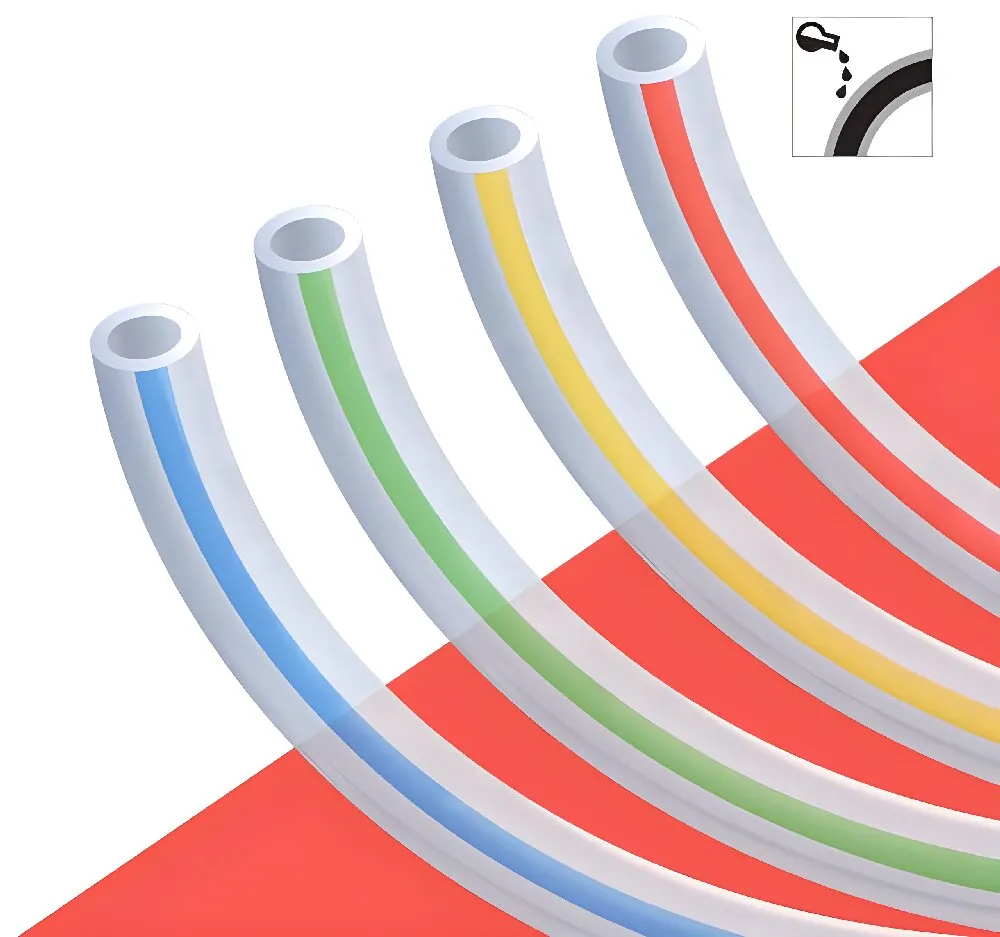

Custom Dimensions

Diameter, wall thickness, color and other product configurations can be evaluated according to specific equipment and application requirements.

SUPPORT

Engineering Assistance

Technical support is available for tubing selection, dimensional evaluation and application-specific requirements.

SUPPLY

Global Project Support

Designed to support OEMs, processors, distributors and engineering teams serving international markets.

FAQ

PFA Tubing, explained.

What is PFA tubing used for?

PFA tubing is commonly selected for chemical transfer, high-temperature fluid handling, laboratory systems, semiconductor processing and other applications where chemical resistance and process cleanliness are important.

What temperature can Techyours™ PFA Tubing handle?

Techyours™ PFA Tubing is designed for continuous-use temperatures up to approximately 500°F / 260°C, subject to application conditions.

Is PFA tubing suitable for semiconductor applications?

High-purity and ultra-high-purity PFA tubing options are available for contamination-sensitive environments including semiconductor process systems.

Can PFA tubing handle aggressive chemicals?

PFA is known for broad chemical resistance and is frequently considered for corrosive and chemically aggressive fluid-handling environments. Final material compatibility should always be confirmed for the specific chemical, concentration, temperature and pressure involved.

Are custom PFA tubing dimensions available?

Custom sizes, wall thicknesses and selected color configurations can be evaluated according to project requirements.

Start Your Project

The right tubing starts with the right specification.

Tell us your required inside diameter, outside diameter, wall thickness, operating temperature, pressure, fluid medium and purity requirements. Our team can help identify the appropriate Techyours™ PFA Tubing configuration for your application.

Request a Quote Talk to an Engineer →

Metric Sizes

SIZE, ID X OD	INSIDE DIAMETER-ID	TOLERANCE, +/-	WALL THICKNESS	TOLERANCE, +/-	OUTSIDE DIAMETER-OD
2*3	2	0.10	0.50	0.10	3
2*4	2	0.10	1.00	0.10	4
3*4	3	0.15	0.50	0.20	4
3*5	3	0.15	1.00	0.20	5
4*5	4	0.15	0.50	0.10	5
4*6	4	0.15	1.00	0.20	6
5*6	5	0.20	0.50	0.10	6
5*7	5	0.20	1.00	0.20	7
6*7	6	0.20	0.50	0.10	7
6*8	6	0.20	1.00	0.20	8
7*8	7	0.20	0.50	0.10	8
7*9	7	0.20	1.00	0.20	9
8*9	8	0.20	0.50	0.10	9
8*10	8	0.20	1.0	0.20	10
10*12	10	0.30	1.0	0.10	12
12*14	12	0.30	1.0	0.20	14
14*16	14	0.40	1.0	0.10	16
16*18	16	0.40	1.0	0.20	18
18*20	18	0.50	1.0	0.10	20
20*22	20	0.50	1.0	0.20	22

Inche Sizes

SIZE, FRACTIONA	INSIDE DIAMETER-ID	WALL THICKNESS	TOLERANCE, +/-	OUTSIDE DIAMETER-OD	TOLERANCE, +/-
1/32	0.031	0.016	0.003	0.063	0.004
1/16	0.063	0.031	0.005	0.125	0.005
1/16	0.063	0.062	0.010	0.188	0.008
1/8	0.125	0.031	0.005	0.188	0.008
1/8	0.125	0.062	0.010	0.250	0.008
5/32	0.156	0.047	0.007	0.250	0.008
3/16	0.188	0.031	0.005	0.250	0.008
1/4	0.250	0.031	0.005	0.313	0.010
1/4	0.250	0.062	0.010	0.375	0.010
5/16	0.312	0.031	0.005	0.375	0.010
3/8	0.375	0.031	0.005	0.438	0.010
3/8	0.375	0.062	0.010	0.500	0.010
7/16	0.438	0.031	0.005	0.500	0.010
1/2	0.500	0.031	0.005	0.563	0.010
1/2	0.500	0.062	0.010	0.625	0.010
9/16	0.562	0.031	0.005	0.625	0.010
5/8	0.625	0.031	0.007	0.688	0.020
5/8	0.625	0.062	0.010	0.750	0.020
11/16	0.688	0.031	0.007	0.750	0.020
3/4	0.750	0.040	0.007	0.830	0.020
7/8	0.875	0.045	0.007	0.965	0.020
7/8	0.875	0.062	0.010	1.000	0.020
1	1.000	0.045	0.007	1.090	0.020
1-1/4	1.250	0.045	0.007	1.340	0.020
1-1/2	1.500	0.050	0.008	1.600	0.020

Metric Spaghetti Sizes

INSIDE DIAMETER-ID	TOLERANCE, +/-	WALL THICKNESS	TOLERANCE, +/-	OUTSIDE DIAMETER-OD
0.30	0.05	0.23	0.05	0.76
0.40	0.05	0.23	0.05	0.86
0.50	0.05	0.23	0.05	0.96
0.50	0.05	0.30	0.05	1.10
0.70	0.05	0.25	0.05	1.20
0.90	0.05	0.30	0.07	1.50
1.00	0.05	0.30	0.07	1.60
1.10	0.10	0.30	0.07	1.70
1.20	0.10	0.30	0.07	1.80
1.40	0.10	0.30	0.07	2.00
1.50	0.10	0.30	0.07	2.10
1.70	0.10	0.30	0.07	2.30
1.90	0.10	0.30	0.07	2.50
2.20	0.15	0.30	0.07	2.80
2.40	0.15	0.30	0.07	3.00
2.70	0.15	0.30	0.07	3.30
2.90	0.15	0.30	0.07	3.50
3.00	0.15	0.30	0.07	3.60
3.20	0.15	0.30	0.07	3.80
3.40	0.15	0.30	0.07	4.00

AWG Sizes

SIZE	INSIDE DIAMETER-ID		LIGHT WALL		THIN WALL		HEAVY WALL		HEAVY WALL
	MIN	MAX	NOM	TOL +/-	NOM	TOL +/-	NOM	TOL +/-	NOM	TOL +/-
32	0.007	0.011	0.006	0.002	0.009	0.002
30	0.010	0.015	0.006	0.002	0.009	0.002	0.009	0.002
28	0.013	0.018	0.006	0.002	0.009	0.002	0.009	0.002
26	0.016	0.0021	0.006	0.002	0.009	0.002	0.009	0.002
24	0.020	0.026	0.006	0.002	0.010	0.003	0.012	0.003	0.016	0.003
23	0.023	0.029	0.006	0.002	0.010	0.003	0.012	0.003	0.016	0.003
22	0.025	0.032	0.006	0.002	0.010	0.003	0.012	0.003	0.016	0.003
21	0.029	0.035	0.006	0.002	0.010	0.003	0.012	0.003	0.018	0.003
20	0.032	0.040	0.006	0.002	0.012	0.003	0.016	0.003	0.018	0.003
19	0.036	0.044	0.006	0.002	0.012	0.003	0.016	0.003	0.020	0.004
18	0.040	0.049	0.006	0.002	0.012	0.003	0.016	0.003	0.020	0.004
17	0.045	0.054	0.006	0.002	0.012	0.003	0.016	0.003	0.020	0.004
16	0.051	0.061	0.006	0.002	0.012	0.003	0.016	0.003	0.020	0.004
15	0.057	0.067	0.006	0.002	0.012	0.003	0.016	0.003	0.020	0.004
14	0.064	0.074	0.008	0.002	0.012	0.003	0.016	0.003	0.020	0.004
13	0.072	0.082	0.008	0.002	0.012	0.003	0.016	0.003	0.020	0.004
12	0.081	0.091	0.008	0.002	0.012	0.003	0.016	0.003	0.020	0.004
11	0.091	0.101	0.008	0.002	0.012	0.003	0.016	0.003	0.020	0.004
10	0.102	0.112	0.008	0.002	0.012	0.003	0.016	0.003	0.025	0.005
9	0.114	0.124	0.008	0.002	0.015	0.003	0.020	0.004	0.025	0.005
8	0.129	0.141	0.008	0.002	0.015	0.003	0.020	0.004	0.030	0.005
7	0.144	0.124	0.008	0.002	0.015	0.003	0.020	0.004	0.030	0.005
6	0.162	0.178	0.010	0.003	0.015	0.003	0.020	0.004	0.030	0.005
5	0.182	0.198	0.010	0.003	0.015	0.003	0.020	0.004	0.032	0.005
4	0.204	0.224	0.010	0.003	0.015	0.003	0.020	0.004
3	0.229	0.249	0.010	0.003	0.015	0.003	0.020	0.004
2	0.258	0.278	0.010	0.003	0.015	0.003	0.020	0.004
1	0.289	0.311	0.010	0.003	0.015	0.003	0.020	0.004
0	0.325	0.347	0.012	0.003	0.015	0.003	0.020	0.004
