Make routing easier to follow.
Assign distinct colors to line groups so technicians can follow the intended routing during assembly and inspection.

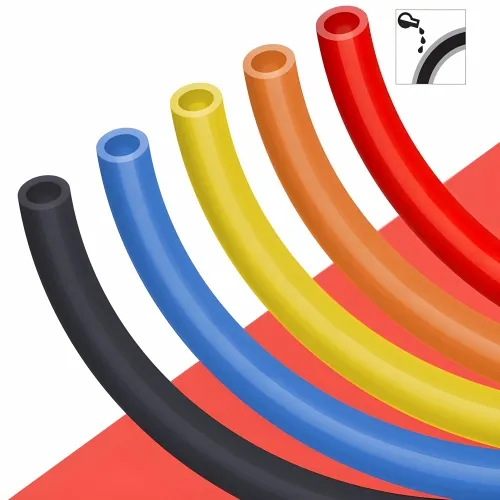

Colored Tubings
Techyours+™ / Color Fluoropolymers Tubing
Colored fluoropolymer tubing.
Color, with purpose.
Give every line a visual identity. Techyours+™ colored fluoropolymer tubing brings material selection, dimensional requirements and color specification into one engineering conversation.
Line identificationAssembly organizationCustom color evaluation
COLOR FLUOROPOLYMERS TUBING / CONCEPT VISUAL
Visual clarity, engineered in
See the line.
Know its role.
Create a shared visual language.
Connect a tubing color to an equipment drawing, line label or internal identification plan. Keep the same reference across your team.
Support organized maintenance.
Use color alongside tags and documented procedures to distinguish lines during service. Confirm line identity before any connection or disconnection.
Bring consistency to the design.
Define the color reference and acceptance criteria early, alongside material and dimensions. Evaluate production samples before approval.
Color is an identification aid. It does not establish fluid compatibility, pressure rating or a universal safety code.
A palette with a specification
Your color.
Clearly defined.
Start with a visual target. Turn it into a measurable requirement through an agreed reference, finish and sample review.
Blue
Violet
Coral
Teal
Graphite
White
Illustrative palette only. These swatches are not a stock list or physical color standard; screen appearance varies by device.
Define the reference.
Provide an approved physical sample or a recognized color reference such as a RAL or Pantone designation. Confirm feasibility for the selected polymer and wall thickness.
Agree on acceptance.
Specify visual comparison conditions and, where needed, an agreed color measurement method and tolerance. Review appearance on the actual tubing construction.
Material first. Color alongside.
Choose the polymer.
Then refine the color.
Discuss PTFE, FEP, PFA or ETFE as candidate materials. The color formulation, extrusion route and end-use requirements must be evaluated together.
PTFE / Evaluate the processing route.
When PTFE is the candidate material, discuss pigment compatibility, processing requirements and the properties needed in the finished tubing.
FEP / Define visibility requirements.
For a proposed colored FEP tube, specify whether fluid visibility matters. Evaluate how color loading and wall thickness affect the appearance of the sample.
PFA / Review process cleanliness.
For a proposed colored PFA tube, identify chemical exposure and any cleanliness or extractables requirements. Do not infer high-purity suitability from the base polymer alone.
ETFE / Match the mechanical task.
For a proposed colored ETFE tube, define abrasion, handling and environmental requirements. Validate the finished formulation and geometry against the application.
Material families shown are selection candidates. Availability of a particular material, color and size combination requires confirmation. Unpigmented resin data does not automatically describe a colored finished tube.
From concept to component
Built around
real applications.
Electronics & wiring
Evaluate sleeves for connectors, cable assemblies and component insulation. Validate dielectric performance and coverage after recovery.
Process equipment
Assess protection for probes, sensor bodies and contact surfaces. Test against the actual chemicals, temperatures and exposure times.
Medical device manufacturing
Explore sleeves for assembly and processing tasks. Confirm whether the tubing is removed or retained, and request relevant documentation for the intended use.
Surface & roller sleeves
Consider coverage where release and surface protection matter. Trial the fit, finish and durability under real operating conditions.
Turn an idea into a specification
Specify the details.
Shape the result.
| Requirement | Information to provide | What to confirm |
|---|---|---|
| Material | Preferred polymer or application requirements | Grade, color formulation and production feasibility |
| Dimensions | Inside diameter, outside diameter or wall thickness; units and tolerances | An agreed, consistent dimensional specification |
| Color & appearance | Physical reference, finish, opacity or visibility requirements | Sample appearance and color acceptance criteria |
| Operating conditions | Media, temperature, pressure or vacuum, exposure time and bending | Finished-tube suitability and required validation |
| Delivery format | Cut lengths or coils, length tolerance and packaging requirements | Available formats, quantity and confirmed lead time |
| Documentation | Restricted-substance, traceability, cleanliness or sector-specific requirements | Evidence applicable to the exact supplied product |
No standard size range, minimum order quantity or lead time is implied here. Confirm the final offer and technical requirements before ordering.
From sample to approval
A color you approve.
A process you can repeat.
Define the application.
Share the drawing, operating environment, dimensional requirements and color reference. Identify any critical documentation needs.
Evaluate the sample.
Review color, wall appearance, fit and routing on a representative tubing sample. Agree on the reference used for future acceptance.
Validate the finished tube.
Test the properties that matter to the application, such as chemical exposure, pressure performance, electrical behavior or extractables where required.
Set the release criteria.
Document agreed dimensions, color acceptance, packaging and traceability requirements. Confirm applicable inspection records with the supplier.
Make the next step clear
Bring your color.
Bring your requirements.
Can I request a custom color?
Submit a physical reference or recognized color designation for evaluation. Feasibility depends on the selected material, pigment system, dimensions and end-use requirements.
Will colored tubing retain the properties of natural tubing?
Do not assume equivalence. Pigments and additives may affect appearance and other properties. Confirm the required performance using data or tests for the exact finished formulation.

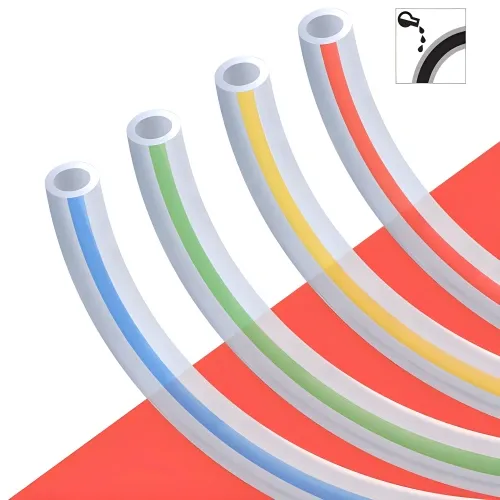

Can the tubing remain transparent?
Color, pigment type, loading and wall thickness influence visibility. State your transparency or opacity requirement and review a representative sample.
Is colored tubing suitable for medical or food-contact use?
Suitability depends on the formulation, finished product and intended use. Request applicable compliance and testing documents; material identity or color alone is not sufficient.
Does a blue or red tube indicate a standard fluid or pressure rating?
Colors do not define pressure ratings or a universal fluid code. Follow the identification standard applicable to your installation and retain labels and documentation.
Start with an engineering-ready inquiry.
Tell us your preferred polymer, tubing dimensions, color reference, operating conditions, quantity and documentation needs using the inquiry form below.
